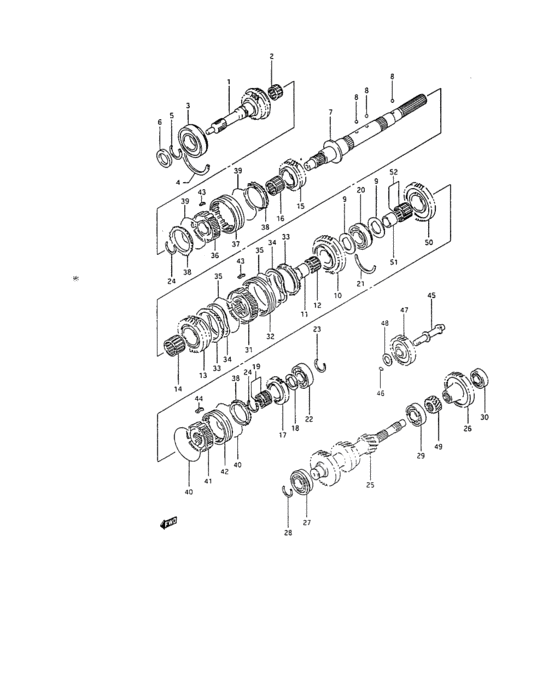

Gearbox gear (GEARBOX GEAR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-A8300-100
Shaft, input
|
24110-A8300-100 |
— | ||
|
2
|
2
09263-20056-000 BEARING(20X26X17) |
09263-20056-000 |
from US $8.64 |
||
|
3
|
3
09262-24005-000
Bearing
|
09262-24005-000 |
— | ||
|
4
|
4
09390-68002-000 C RING |
09390-68002-000 |
from US $1.76 |
||
|
5
|
5
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
6
|
6
09283-25077-000
Joint
|
09283-25077-000 |
— | ||
| replacement | |||||
|
6
|
6
09283-25088-000 SEAL,OIL(25X38X6) |
09283-25088-000 |
from US $5.67 |
||
|
7
|
7
24121-83002-000 SHAFT,T/M MAIN |
24121-83002-000 |
US $185.84 |
||
|
8
|
8
06111-06004-000
Ball
|
06111-06004-000 |
— | ||
| replacement | |||||
|
8
|
8
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
9
|
9
09166-30007-000 WASHER |
09166-30007-000 |
from US $5.24 |
||
|
10
|
10
24210-A8300-100
Engrenage
|
24210-A8300-100 |
— | ||
|
10
|
10
24211-83011-000
ギヤ,トランスミッションメインシャフト,ロー
ALTERN. |
24211-83011-000 |
— | ||
| replacement | |||||
|
10
|
10
24211-83020-000 GEAR,MAIN SFT LOWALTERN. |
24211-83020-000 |
US $134.69 |
||
|
11
|
11
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.74 |
||
|
12
|
12
09263-35015-000 BEARING(35X40X26.8) |
09263-35015-000 |
from US $10.79 |
||
|
13
|
13
24220-A8300-000
Engrenage de 2
|
24220-A8300-000 |
— | ||
|
14
|
14
09263-35015-000 BEARING(35X40X26.8) |
09263-35015-000 |
from US $10.79 |
||
|
15
|
15
24230-A8300-000
Engrenage de 3
|
24230-A8300-000 |
— | ||
|
16
|
16
09263-30031-000 BEARING(30X35X26.8) |
09263-30031-000 |
from US $8.16 |
||
|
17
|
17
24250-A8300-000
Engrenage pral 5
|
24250-A8300-000 |
— | ||
|
18
|
18
09166-25009-000
ワッシャ
|
09166-25009-000 |
— | ||
| replacement | |||||
|
18
|
18
24255-60A00-000 WASHER,MAIN SFT 5TH GR |
24255-60A00-000 |
US $6.88 |
||
|
19
|
19
09263-27007-000
ベアリング
|
09263-27007-000 |
— | ||
| replacement | |||||
|
19
|
19
24801-60810-000 BEARING SET |
24801-60810-000 |
from US $15.36 |
||
|
20
|
20
09262-30085-000
Bearing
|
09262-30085-000 |
— | ||
| replacement | |||||
|
20
|
20
09262-30086-000 BEARING(30X62X16) |
09262-30086-000 |
from US $24.32 |
||
|
21
|
21
09390-62010-000 C RING |
09390-62010-000 |
US $2.24 |
||
|
22
|
22
08113-63050-000
Bearing
|
08113-63050-000 |
— | ||
| replacement | |||||
|
22
|
22
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) |
09262-25073-000 |
from US $14.59 |
||
|
23
|
23
09380-25011-000 RING,SNAP |
09380-25011-000 |
from US $1.04 |
||
|
24
|
24
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
25
|
25
24131-83002-000 SHAFT,T/M COUNTER |
24131-83002-000 |
US $332.80 |
||
|
26
|
26
24351-03000-000
Axle gear, 3
|
24351-03000-000 |
— | ||
|
27
|
27
09262-28018-000 BEARING(28X58X16)TYPE 2,TYPE 3 |
09262-28018-000 |
from US $49.34 |
||
|
27
|
27
09262-28019-000 BEARING(28X58X16)B1 28x58x16 bearing m TYPE 1 |
09262-28019-000 |
from US $23.56 |
||
|
28
|
28
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
29
|
29
09262-28020-000 BEARING(28X58X16) |
09262-28020-000 |
US $19.76 |
||
|
30
|
30
08113-63040-000
Bearing
|
08113-63040-000 |
— | ||
| replacement | |||||
|
30
|
30
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) |
09262-20073-000 |
from US $12.31 |
||
|
31
|
31
24411-83000-000
Moyeu synchron baise
|
24411-83000-000 |
— | ||
| replacement | |||||
|
31
|
31
24411-60A00-000
ハブ,シンクロナイザロースピード
|
24411-60A00-000 |
— | ||
|
32
|
32
24421-85004-000
Synchro.rubb 1 and 2
|
24421-85004-000 |
— | ||
|
33
|
33
24431-85001-000
Synchro.ring,1 and 2
|
24431-85001-000 |
— | ||
|
34
|
34
24436-83000-000 SPRING,SYNC RING LOW |
24436-83000-000 |
US $7.84 |
||
|
35
|
35
09388-00017-000 SPRING |
09388-00017-000 |
from US $2.05 |
||
|
36
|
36
24412-83000-000 Moyeu synchron haute |
24412-83000-000 |
from US $35.82 |
||
| replacement | |||||
|
36
|
36
24412-60A00-000
ハブ,シンクロナイザハイスピード
|
24412-60A00-000 |
— | ||
|
37
|
37
24422-85003-000
Synchro.bush,1 and 2
|
24422-85003-000 |
— | ||
|
38
|
38
24432-83001-000 RING,HIGH SPEED SYNC |
24432-83001-000 |
US $82.40 |
||
|
39
|
39
09388-00019-000 SPRING |
09388-00019-000 |
from US $1.98 |
||
|
40
|
40
09388-00019-000 SPRING |
09388-00019-000 |
from US $1.98 |
||
|
41
|
41
24413-83001-000 Moyeu synchron |
24413-83001-000 |
US $32.74 |
||
| replacement | |||||
|
41
|
41
24413-60A00-000
ハブ,シンクロナイザリバース
|
24413-60A00-000 |
— | ||
|
42
|
42
24423-83003-000
Bague m.a.
|
24423-83003-000 |
— | ||
| replacements | |||||
|
42
|
42
24420-81A23-000 HUB ASSY,5TH&REV |
24420-81A23-000 |
from US $86.33 |
||
|
42
|
42
24432-83001-000 RING,HIGH SPEED SYNC |
24432-83001-000 |
US $82.40 |
||
|
43
|
43
09422-05011-000
キー
H 111440 |
09422-05011-000 |
— | ||
| replacement | |||||
|
43
|
43
24471-60A00-000 KEY,SYNCH 111440 |
24471-60A00-000 |
US $1.73 |
||
|
43
|
43
24471-60A00-000 KEY,SYNCD 111441 |
24471-60A00-000 |
US $1.73 |
||
|
44
|
44
09422-05012-000
キー
TYPE 1 |
09422-05012-000 |
— | ||
| replacements | |||||
|
44
|
44
24473-70D10-000 KEY,SYNCTYPE 1 |
24473-70D10-000 |
US $1.92 |
||
|
44
|
44
24473-70D00-000
KEY,5TH SYNC SHIFTING
TYPE 1 |
24473-70D00-000 |
— | ||
|
44
|
44
24473-70D00-000
KEY,5TH SYNC SHIFTING
TYPE 2,TYPE 3 |
24473-70D00-000 |
— | ||
|
45
|
45
24551-83000-000
Axe tendeur marche arriere
|
24551-83000-000 |
— | ||
| replacements | |||||
|
45
|
45
24551-83010-000 SHAFT,T/M REVERSE GEAR |
24551-83010-000 |
US $28.13 |
||
|
45
|
45
09380-17008-000 CIRCLIP |
09380-17008-000 |
US $1.92 |
||
|
46
|
46
09261-06003-000 PIN(6X10)Pin, drive shadft, r |
09261-06003-000 |
from US $1.06 |
||
|
47
|
47
24560-A8300-100
Engrenage n.a. tendeu
|
24560-A8300-100 |
— | ||
|
48
|
48
09166-16014-000 WASHER |
09166-16014-000 |
US $14.40 |
||
|
49
|
49
24671-83000-000 GEAR,CTSHFT REV |
24671-83000-000 |
US $41.04 |
||
|
50
|
50
24681-83000-000
ギヤ,メインシャフトリバース
|
24681-83000-000 |
— | ||
| replacement | |||||
|
50
|
50
24681-81A41-000 GEAR, MAIN SHAFT REVERSE |
24681-81A41-000 |
US $88.93 |
||
|
51
|
51
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.74 |
||
|
52
|
52
09263-35015-000 BEARING(35X40X26.8)H CIC 03422 |
09263-35015-000 |
from US $10.79 |
||
|
52
|
52
09263-35028-000
ベアリング
D CIC 03423 |
09263-35028-000 |
— | ||
| replacement | |||||
|
52
|
52
24801-60820-000 BEARING SETD CIC 03423 |
24801-60820-000 |
from US $17.42 |
||
