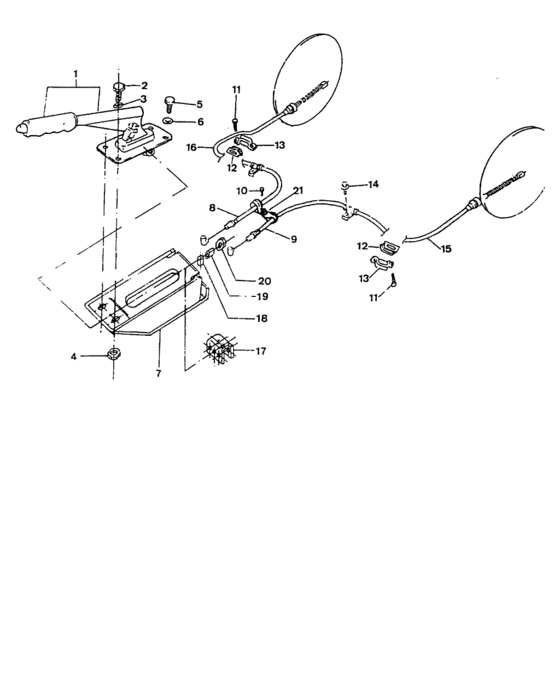

Handbrake (HANDBRAKE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-C8331-000
Lever assy, parking brake
D 99437 |
54100-C8331-000 |
— | ||
|
2
|
2
00016-00000-000
Bolt
|
00016-00000-000 |
— | ||
|
3
|
3
02007-00000-000
Washer
|
02007-00000-000 |
— | ||
|
4
|
4
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
4
|
4
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
00016-00000-000
Bolt
|
00016-00000-000 |
— | ||
|
6
|
6
02007-00000-000
Washer
|
02007-00000-000 |
— | ||
|
7
|
7
45043-00000-000
Protector
|
45043-00000-000 |
— | ||
|
8
|
8
45040-00000-000
Cable assy, r/h
CARB |
45040-00000-000 |
— | ||
|
8
|
8
45068-00000-000
Cable assy, rh
INJ |
45068-00000-000 |
— | ||
|
9
|
9
45041-00000-000
Cable assy, lh
|
45041-00000-000 |
— | ||
|
10
|
10
01514-08126-000
Screw
|
01514-08126-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
11
|
11
00011-00000-000
Vis
|
00011-00000-000 |
— | ||
|
12
|
12
45023-00000-000
Support cable
|
45023-00000-000 |
— | ||
|
13
|
13
45022-00000-000
Bride
|
45022-00000-000 |
— | ||
|
14
|
14
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
15
|
15
45044-00000-000
Cable assy, r/h
LONG BODY |
45044-00000-000 |
— | ||
|
16
|
16
45049-00000-000
Cable assy, lh
LONG BODY |
45049-00000-000 |
— | ||
|
17
|
17
54312-60A10-000
Rod balancer
|
54312-60A10-000 |
— | ||
|
18
|
18
54313-60A10-000
Pin
|
54313-60A10-000 |
— | ||
|
19
|
19
08319-A2106-600
Ecrou
|
08319-A2106-600 |
— | ||
|
20
|
20
54315-60A10-000
Bush
|
54315-60A10-000 |
— | ||
|
21
|
21
45046-00000-000
Bracket assy
|
45046-00000-000 |
— | ||
|
22
|
22
00009-00000-000
Clamp,wire electro fan
|
00009-00000-000 |
— | ||
