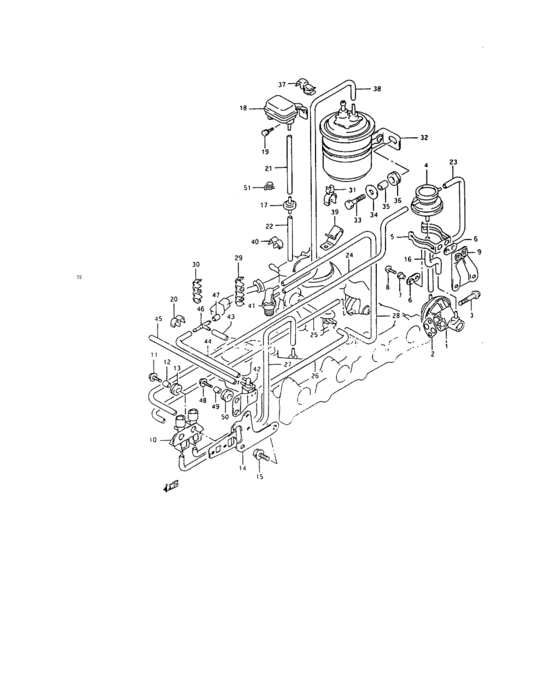

Inj. emiss. contr. (INJ. EMISS. CONTR.) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-80C00-000 VALVE,EGR |
18111-80C00-000 |
US $173.70 |
||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
3
|
3
01517-06453-000
ボルト
|
01517-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
4
|
4
18112-60B00-000 MODULATOR ASSY,EGR |
18112-60B00-000 |
US $99.57 |
||
|
5
|
5
13814-82000-000 CLAMP,MODULATOR |
13814-82000-000 |
US $6.40 |
||
|
6
|
6
13817-82000-000 CUSHION,MODULATOR CLAMP |
13817-82000-000 |
US $2.87 |
||
|
7
|
7
13815-82000-000 WASHER,MODULATOR CLAMP |
13815-82000-000 |
US $2.72 |
||
|
8
|
8
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
9
|
9
18412-80C01-000
ブラケット,モジュレータ
|
18412-80C01-000 |
— | ||
|
10
|
10
18117-61A00-000
VALVE,VACUUM SWITCHING
|
18117-61A00-000 |
— | ||
|
10
|
10
18117-61A20-000
Vacuum switch valve
ALTERN. |
18117-61A20-000 |
— | ||
| replacement | |||||
|
10
|
10
18117-61A00-000
VALVE,VACUUM SWITCHING
ALTERN. |
18117-61A00-000 |
— | ||
|
11
|
11
02112-06143-000
Screw
|
02112-06143-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
11
|
11
09160-06086-000
Washer, 6.5x20x
|
09160-06086-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
12
|
12
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
13
|
13
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
14
|
14
18417-80C01-000
BRACKET,VSV
|
18417-80C01-000 |
— | ||
|
15
|
15
01517-10163-000
ボルト
|
01517-10163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
15
|
15
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
16
|
16
18471-80C00-000
Hose,egr to modulator
|
18471-80C00-000 |
— | ||
|
17
|
17
27965-85400-000 FILTER,VSVFilter assy, vsv |
27965-85400-000 |
from US $10.40 |
||
|
18
|
18
18590-80C00-000
Sensor, pressure
|
18590-80C00-000 |
— | ||
| replacement | |||||
|
18
|
18
18590-80C20-000
SENSOR,PRESSURE
|
18590-80C20-000 |
— | ||
|
19
|
19
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
19
|
19
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
19
|
19
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
20
|
20
09408-00100-000 CLIP |
09408-00100-000 |
US $19.50 |
||
|
21
|
21
09343-03087-000
ホース,#2/3.5X7.5X50
|
09343-03087-000 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09358-35754-300
ホース,3.5X7.5X300
|
09358-35754-300 |
— | ||
| replacements | |||||
|
22
|
22
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
22
|
22
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
23
|
23
09343-03094-000
New Genuine Part
|
09343-03094-000 |
— | ||
| replacements | |||||
|
23
|
23
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
23
|
23
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
24
|
24
09358-35754-400
Vacuum hose,l:400
|
09358-35754-400 |
— | ||
|
25
|
25
09343-03121-000
ホース,#18/3.5X7.5X280
|
09343-03121-000 |
— | ||
| replacements | |||||
|
25
|
25
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
25
|
25
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
26
|
26
09358-35754-250
Vacuum hose,l:250
|
09358-35754-250 |
— | ||
|
27
|
27
09343-03097-000
ホース,#26/3.5X7.5X180
|
09343-03097-000 |
— | ||
| replacements | |||||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
28
|
28
09343-03093-000
ホース,#4/3.5X7.5X130
|
09343-03093-000 |
— | ||
| replacements | |||||
|
28
|
28
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
28
|
28
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
29
|
29
09408-00116-000 CLIP |
09408-00116-000 |
US $44.90 |
||
|
30
|
30
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
31
|
31
09408-00060-000 CLAMP |
09408-00060-000 |
US $13.20 |
||
|
32
|
32
18560-80C00-000
CANISTER
|
18560-80C00-000 |
— | ||
|
33
|
33
01104-08203-000
Screw
|
01104-08203-000 |
— | ||
|
34
|
34
09160-T0807-500
Flat washer
|
09160-T0807-500 |
— | ||
|
35
|
35
09180-08092-000
New Genuine Part
ALTERN. |
09180-08092-000 |
— | ||
|
35
|
35
09180-08171-000
Spacer
|
09180-08171-000 |
— | ||
| replacement | |||||
|
35
|
35
09180-08185-000 SPACER(8.5X12X6) |
09180-08185-000 |
US $23.20 |
||
|
36
|
36
09320-12011-000
CUSHION
|
09320-12011-000 |
— | ||
| replacement | |||||
|
36
|
36
09320-12090-000 Cushion(11.8X25X7.5) |
09320-12090-000 |
from US $1.67 |
||
|
37
|
37
09408-00111-000 CLAMP |
09408-00111-000 |
US $2.08 |
||
|
38
|
38
09358-35754-560
Hose,l:560
|
09358-35754-560 |
— | ||
|
39
|
39
09403-09315-000 CLAMP |
09403-09315-000 |
US $19.10 |
||
|
40
|
40
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
41
|
41
18122-80C00-000
バルブ,BVS
|
18122-80C00-000 |
— | ||
| replacement | |||||
|
41
|
41
18122-80C01-000 VALVE,BVS |
18122-80C01-000 |
US $44.90 |
||
|
41
|
41
18122-80C10-000
Bvs valve
ALTERN. |
18122-80C10-000 |
— | ||
| replacement | |||||
|
41
|
41
18122-80C01-000 VALVE,BVSALTERN. |
18122-80C01-000 |
US $44.90 |
||
|
42
|
42
18117-80C00-000 VALVE,ISC |
18117-80C00-000 |
US $220.40 |
||
|
43
|
43
09354-70133-050
Vacuum hose,l:50
|
09354-70133-050 |
— | ||
|
44
|
44
09359-54111-300
ホース,L:300
|
09359-54111-300 |
— | ||
| replacement | |||||
|
44
|
44
09359-54111-600 HOSE(5.4X11.4X600)Hose, canister & carb |
09359-54111-600 |
from US $22.40 |
||
|
45
|
45
09354-54115-340
Vacuum hose
|
09354-54115-340 |
— | ||
|
46
|
46
18342-80C10-000
HOSE,ISC 3WAY
|
18342-80C10-000 |
— | ||
|
47
|
47
09251-07003-000 CAP(OD:11.5) |
09251-07003-000 |
from US $1.52 |
||
|
48
|
48
02112-06143-000
Screw
|
02112-06143-000 |
— | ||
| replacement | |||||
|
48
|
48
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
48
|
48
09160-06086-000
Washer, 6.5x20x
|
09160-06086-000 |
— | ||
| replacement | |||||
|
48
|
48
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
49
|
49
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
50
|
50
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
51
|
51
09401-A0640-500
Clamp
|
09401-A0640-500 |
— | ||
