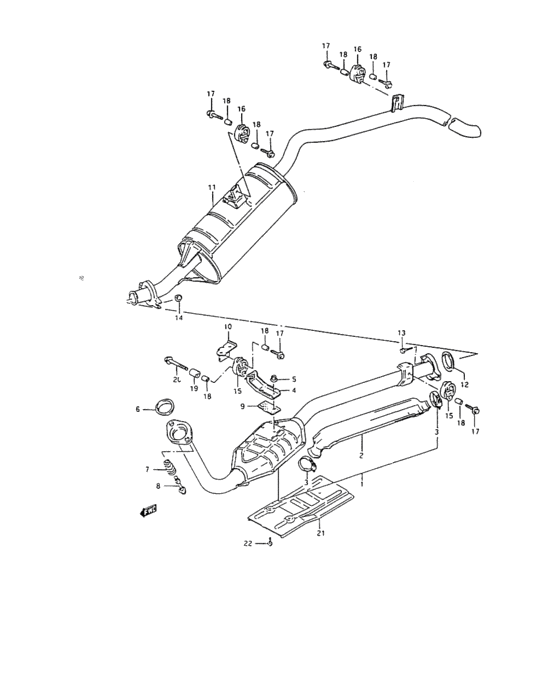

Inj. exh. system (INJ. EXH. SYSTEM) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-83062-000
Catalyst assy
|
14150-83062-000 |
— | ||
|
2
|
2
14351-83000-000
プロテクタ
|
14351-83000-000 |
— | ||
| replacements | |||||
|
2
|
2
14182-57B1V-000 CLAMP |
14182-57B1V-000 |
US $24 |
||
|
2
|
2
14182-8301V-000 CLAMP,NO.2 |
14182-8301V-000 |
US $15.52 |
||
|
2
|
2
14351-8300V-000 PROTECTOR |
14351-8300V-000 |
US $50.40 |
||
|
3
|
3
89402-57501-000
Clamp
|
89402-57501-000 |
— | ||
|
4
|
4
14284-83020-000
Bracket, exhaust pipe no.1
|
14284-83020-000 |
— | ||
| replacement | |||||
|
4
|
4
14284-83021-000
BRACKET,EXH CENTER PIPE NO.1
|
14284-83021-000 |
— | ||
|
5
|
5
00316-A1608-300
Nut
|
00316-A1608-300 |
— | ||
|
6
|
6
14183-60A10-000
リング,シール
|
14183-60A10-000 |
— | ||
| replacement | |||||
|
6
|
6
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
US $19.76 |
||
|
7
|
7
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
7
|
7
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
US $8.64 |
||
|
8
|
8
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
US $7.68 |
||
|
9
|
9
14283-83000-000
Insulator, exhaust bracket
H 116916 |
14283-83000-000 |
— | ||
| replacement | |||||
|
9
|
9
14283-83001-000
INSULATOR,EXH BRKT NA
H 116916 |
14283-83001-000 |
— | ||
|
9
|
9
14283-83001-000
INSULATOR,EXH BRKT NA
D 116917 |
14283-83001-000 |
— | ||
|
10
|
10
14285-83001-000
Bracket, exhaust pipe no.2
|
14285-83001-000 |
— | ||
| replacement | |||||
|
10
|
10
14285-83010-000
BRACKET,EXH CENTER PIPE NO.2
|
14285-83010-000 |
— | ||
|
11
|
11
14300-A8331-000
Muffler
|
14300-A8331-000 |
— | ||
|
11
|
11
14300-B8341-100
Muffler
TYPE 3:LONG BOOT |
14300-B8341-100 |
— | ||
|
12
|
12
14699-83000-000
GASKET,CENTER PIPE&MUF
|
14699-83000-000 |
— | ||
|
13
|
13
01107-08256-000
Bolt
|
01107-08256-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
14
|
14
09159-A0802-200
Nut
|
09159-A0802-200 |
— | ||
|
15
|
15
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $8.32 |
||
|
16
|
16
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
16
|
16
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
17
|
17
01514-08353-000
Vis
|
01514-08353-000 |
— | ||
|
18
|
18
09180-08095-000
Bush
|
09180-08095-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
19
|
19
14287-83000-000
スペーサ,マフラマウンチングボルト
|
14287-83000-000 |
— | ||
| replacement | |||||
|
19
|
19
14287-8300V-000
SPACER,MUFFLER MTG BOLT
|
14287-8300V-000 |
— | ||
|
20
|
20
01517-08553-000
ボルト
|
01517-08553-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
20
|
20
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $5.58 |
||
|
21
|
21
14231-80010-000
パネル,ヒートプロテクタ
|
14231-80010-000 |
— | ||
| replacement | |||||
|
21
|
21
14231-80011-000 PANEL,HEAT PROTECTOR |
14231-80011-000 |
US $12 |
||
|
22
|
22
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
