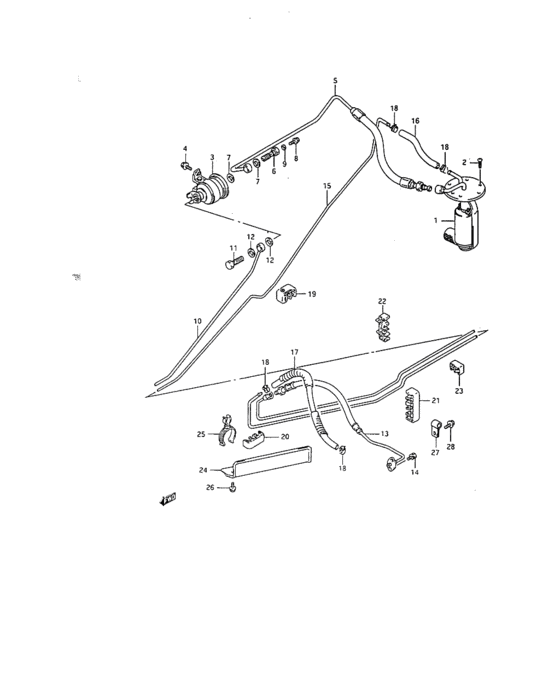

Inj. fuel pump (INJ. FUEL PUMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-80C02-000
ポンプアッシ,フューエル
|
15100-80C02-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-80C1V-000 PUMP ASSY,FUEL |
15100-80C1V-000 |
US $1,481.60 |
||
|
2
|
2
02112-05106-000
Screw
|
02112-05106-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
2
|
2
08322-11056-000
Washer
|
08322-11056-000 |
— | ||
| replacement | |||||
|
2
|
2
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
3
|
3
15410-80C00-000 FILTER,FUEL |
15410-80C00-000 |
US $92.80 |
||
| replacement | |||||
|
3
|
3
15410-80C10-000
FILTER,FUEL
|
15410-80C10-000 |
— | ||
|
4
|
4
01514-06123-000
Vis
|
01514-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
15810-80C20-000 HOSE,FUEL FILTER INLET |
15810-80C20-000 |
US $202.40 |
||
|
5
|
5
15810-81C00-000
Pipe, fuel
LONG BODY |
15810-81C00-000 |
— | ||
| replacement | |||||
|
5
|
5
15810-81C01-000
HOSE,FUEL FLTRINLET
LONG BODY |
15810-81C01-000 |
— | ||
|
6
|
6
13923-85551-000 BOLT,UNION FUEL FILTERBolt |
13923-85551-000 |
US $15.52 |
||
|
7
|
7
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.60 |
||
|
8
|
8
13924-85550-000
プラグ,ユニオンボルト
|
13924-85550-000 |
— | ||
| replacement | |||||
|
8
|
8
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover |
17568-50F00-000 |
from US $2.08 |
||
|
9
|
9
09168-06015-000
Gasket
|
09168-06015-000 |
— | ||
| replacement | |||||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
15820-80C20-000 PIPE,FUEL FILTER OUTLET |
15820-80C20-000 |
US $79.49 |
||
|
10
|
10
15820-81C00-000
PIPE,FUEL FILTER OUTLET
LONG BODY |
15820-81C00-000 |
— | ||
|
11
|
11
13921-85552-000
ボルト,ユニオンフューエルフィルタ
|
13921-85552-000 |
— | ||
| replacement | |||||
|
11
|
11
09360-12008-000 UNION |
09360-12008-000 |
from US $5.60 |
||
|
12
|
12
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.60 |
||
|
13
|
13
15830-80C00-000
ホース,フューエルパイプツーエンジン
|
15830-80C00-000 |
— | ||
| replacement | |||||
|
13
|
13
15830-80C01-000
HOSE,FUEL PIPE TO ENG
|
15830-80C01-000 |
— | ||
|
14
|
14
01107-06163-000 Bolt m6x1x16 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
14
|
14
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
14
|
14
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
15
|
15
15861-80C21-000
PIPE,FUEL RTN
|
15861-80C21-000 |
— | ||
|
15
|
15
15861-81C00-000
Pipe, fuel return
LONG BODY |
15861-81C00-000 |
— | ||
| replacement | |||||
|
15
|
15
15861-81C01-000
PIPE,FUEL RTN
LONG BODY |
15861-81C01-000 |
— | ||
|
16
|
16
09356-58125-380
Hose, 5.8x12.2x380
|
09356-58125-380 |
— | ||
|
17
|
17
15870-61A00-000 HOSE,RETURN ENGINE TO PIPE |
15870-61A00-000 |
US $38.40 |
||
|
18
|
18
09401-A1140-400
Colher
SHORT/LONG BODY |
09401-A1140-400 |
— | ||
|
19
|
19
15819-81C00-000
Clamp, fuel pipe
LONG BODY |
15819-81C00-000 |
— | ||
|
19
|
19
15892-60A00-000
クランプ,フューエルパイプ
SHORT |
15892-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
15892-60A11-000 CLAMP,FUEL PIPESHORT |
15892-60A11-000 |
US $1.60 |
||
|
20
|
20
15893-60A00-000
クランプ,フューエルパイプ
SHORT |
15893-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
15893-60A11-000 CLAMP,FUEL PIPESHORT |
15893-60A11-000 |
US $2.24 |
||
|
21
|
21
15095-80C00-000
Clamp
SHORT |
15095-80C00-000 |
— | ||
|
22
|
22
15897-80C00-000
CLAMP,FUEL PIPE
SHORT |
15897-80C00-000 |
— | ||
|
23
|
23
15896-73A00-000 CLAMP,FUEL PIPE |
15896-73A00-000 |
US $1.92 |
||
|
24
|
24
15829-83300-000
Cover, fuel pipe
|
15829-83300-000 |
— | ||
|
25
|
25
09408-00063-000 CLAMP |
09408-00063-000 |
US $30.20 |
||
|
26
|
26
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
27
|
27
09403-08404-000
CLAMP
|
09403-08404-000 |
— | ||
| replacement | |||||
|
27
|
27
09403-08417-000 Clamp,rsvr Hose |
09403-08417-000 |
from US $3.91 |
||
|
28
|
28
01577-06123-000
Screw
|
01577-06123-000 |
— | ||
|
29
|
29
09403-08309-000 CLAMPL.BODY-NOT SHOWN |
09403-08309-000 |
US $2.08 |
||
|
30
|
30
00011-00000-000
Vis
L.BODY-NOT SHOWN |
00011-00000-000 |
— | ||
|
31
|
31
09403-08310-000 CLAMPL.BODY-NOT SHOWN |
09403-08310-000 |
US $1.12 |
||
