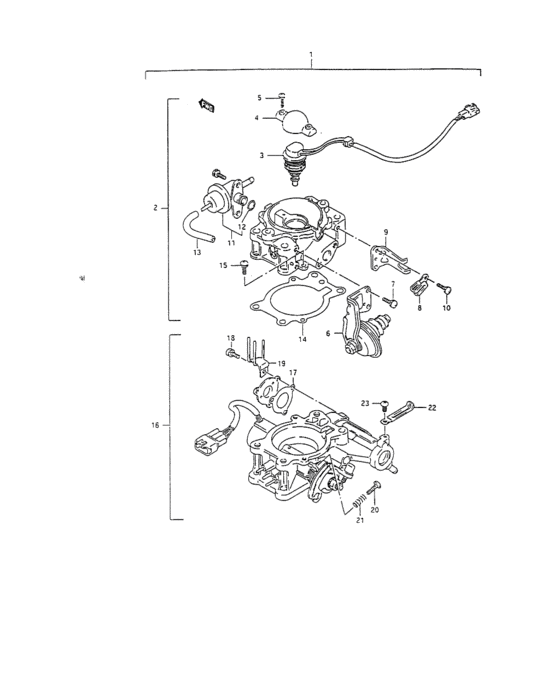

Inj. thrott. body (INJ. THROTT. BODY) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-80C20-000
Body assy,throttle
|
13400-80C20-000 |
— | ||
|
2
|
2
13401-80C20-000
Mining body assy
|
13401-80C20-000 |
— | ||
|
3
|
3
15710-80C20-000 INJECTOR ASSY,FUEL |
15710-80C20-000 |
US $731.20 |
||
|
4
|
4
13431-01A00-000
Cover
|
13431-01A00-000 |
— | ||
|
5
|
5
13439-61A00-000 SCREW |
13439-61A00-000 |
US $5.56 |
||
|
6
|
6
13432-61A00-000
BRACKET ASSY,DEPRESSION
|
13432-61A00-000 |
— | ||
|
7
|
7
13438-61A00-000
スクリュ
|
13438-61A00-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
7
|
7
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
8
|
8
13446-61A00-000
クリップ
|
13446-61A00-000 |
— | ||
| replacements | |||||
|
8
|
8
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
8
|
8
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
|
8
|
8
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
8
|
8
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
8
|
8
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
9
|
9
13433-61A01-000
ブラケット
|
13433-61A01-000 |
— | ||
|
10
|
10
02112-85123-000
Screw
|
02112-85123-000 |
— | ||
|
11
|
11
15160-80C20-000
Regulator assy
|
15160-80C20-000 |
— | ||
| replacement | |||||
|
11
|
11
15160-80C40-000 REGULATOR ASSY |
15160-80C40-000 |
US $403.20 |
||
|
12
|
12
15167-61A00-000 O-RING |
15167-61A00-000 |
US $6.07 |
||
|
13
|
13
13454-80C20-000
ホース
|
13454-80C20-000 |
— | ||
| replacement | |||||
|
13
|
13
13454-80C21-000
HOSE
|
13454-80C21-000 |
— | ||
|
14
|
14
13421-B61A0-000
Body gasket
|
13421-B61A0-000 |
— | ||
|
15
|
15
02112-38123-000
Screw
|
02112-38123-000 |
— | ||
|
16
|
16
13402-80C20-000
Body assy,throttle valve
|
13402-80C20-000 |
— | ||
|
17
|
17
13442-61A00-000 GASKET |
13442-61A00-000 |
US $11.52 |
||
|
18
|
18
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
|
19
|
19
13445-61A00-000
Clip
|
13445-61A00-000 |
— | ||
|
20
|
20
13443-61A00-000
SCREW,ADJUST
|
13443-61A00-000 |
— | ||
|
21
|
21
13444-61A00-000 SPRING |
13444-61A00-000 |
from US $2.40 |
||
|
22
|
22
13446-61A00-000
クリップ
|
13446-61A00-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
22
|
22
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
|
22
|
22
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
22
|
22
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
22
|
22
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
23
|
23
02112-05083-000
Screw
|
02112-05083-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
