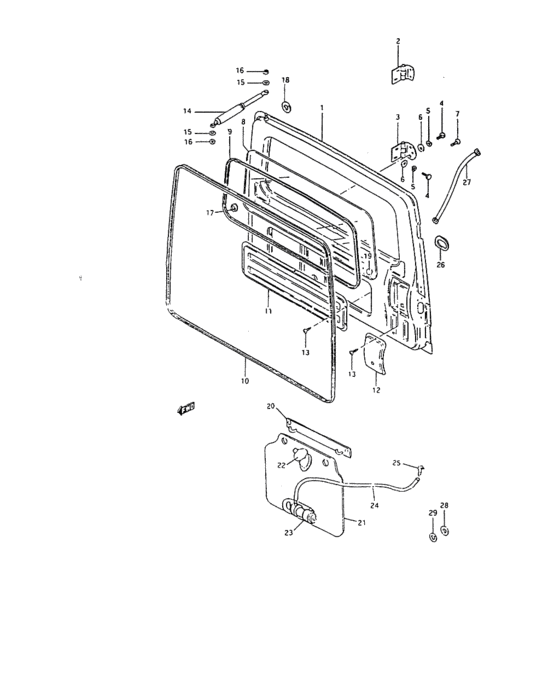

Rear door 'v' (REAR DOOR 'V') Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-83511-000
PANEL ASSY,BACK DOOR
|
69100-83511-000 |
— | ||
|
2
|
2
69510-80110-000
Charniere porte
|
69510-80110-000 |
— | ||
| replacement | |||||
|
2
|
2
69510-80111-000 HINGE,BACK DOOR UPR |
69510-80111-000 |
US $70.40 |
||
|
3
|
3
69520-80110-000
Hinge, lower
|
69520-80110-000 |
— | ||
| replacement | |||||
|
3
|
3
69520-80111-000 HINGE,BACK DOOR LWR |
69520-80111-000 |
US $70.40 |
||
|
4
|
4
09100-08167-000
ボルト,8X22
|
09100-08167-000 |
— | ||
| replacement | |||||
|
4
|
4
09118-08060-000 BOLT(8X22) |
09118-08060-000 |
US $1.28 |
||
|
5
|
5
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
6
|
6
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
6
|
6
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
7
|
7
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
7
|
7
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
8
|
8
50379-00000-000
Glass w/l.t.
NO COLOUR |
50379-00000-000 |
— | ||
|
8
|
8
52809-00000-000
Glass w/l.t.
GREEN |
52809-00000-000 |
— | ||
|
8
|
8
78372-00000-000
Lunette thermique
GREEN |
78372-00000-000 |
— | ||
|
8
|
8
84500-84C00-000
Glass w/l.t.-wiper
GREEN |
84500-84C00-000 |
— | ||
|
8
|
8
84571-80132-000
Glace porte arriere
NO COLOUR |
84571-80132-000 |
— | ||
| replacement | |||||
|
8
|
8
84571-82C10-000 GLASS,BACK DR WINDOWNO COLOUR |
84571-82C10-000 |
US $169.28 |
||
|
9
|
9
84623-A8010-000
Caoutchouc fenetre
|
84623-A8010-000 |
— | ||
|
10
|
10
84681-A8010-000
Caoutchouc porte
TYPE 1 |
84681-A8010-000 |
— | ||
|
10
|
10
84681-B8010-000
Weatherstrip, door opening
TYPE 2,TYPE 3 |
84681-B8010-000 |
— | ||
|
11
|
11
83771-80100-0DG
Door hole cover
|
83771-80100-0DG |
— | ||
|
11
|
11
83771-80100-19H
Door hole cover
|
83771-80100-19H |
— | ||
|
11
|
11
83771-80100-1FG
Door hole cover
|
83771-80100-1FG |
— | ||
|
11
|
11
83771-80100-1FH
Door hole cover
|
83771-80100-1FH |
— | ||
|
11
|
11
83771-80100-26U
Door hole cover
|
83771-80100-26U |
— | ||
|
11
|
11
83771-80100-37V
Door hole cover
|
83771-80100-37V |
— | ||
|
11
|
11
83771-80100-38B
Door hole cover
|
83771-80100-38B |
— | ||
|
12
|
12
83772-80100-000 LID,BACK DR LATCH SVCE HOLE |
83772-80100-000 |
US $19.20 |
||
|
12
|
12
83772-80110-000
Lid,back door latch svce hole
Switzerland,Germany |
83772-80110-000 |
— | ||
|
13
|
13
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
14
|
14
81860-A8010-000
Unit, door balancer
|
81860-A8010-000 |
— | ||
|
15
|
15
09160-06107-000
Washer,6x16x1.2
|
09160-06107-000 |
— | ||
| replacements | |||||
|
15
|
15
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.28 |
||
|
15
|
15
09160-06079-000 WASHER(6.5X16X1.2) |
09160-06079-000 |
from US $0.77 |
||
|
16
|
16
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
16
|
16
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
16
|
16
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
17
|
17
78372-00000-000
Lunette thermique
|
78372-00000-000 |
— | ||
|
18
|
18
81860-B8010-000
Rondelle caoutchouc
|
81860-B8010-000 |
— | ||
|
19
|
19
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.82 |
||
|
20
|
20
50044-00000-000
Bracket
|
50044-00000-000 |
— | ||
|
21
|
21
35011-00000-000
Tank, rear glasswip.
|
35011-00000-000 |
— | ||
|
22
|
22
00000-A0029-300
Plug, rear sc.wash. tank
|
00000-A0029-300 |
— | ||
|
23
|
23
00000-A0029-400
Pompe
|
00000-A0029-400 |
— | ||
|
24
|
24
35020-00000-000
Tuyau essuie glace
|
35020-00000-000 |
— | ||
|
25
|
25
35013-00000-000
Tuyau essuie glace
|
35013-00000-000 |
— | ||
|
26
|
26
51495-00000-000
Gromet
|
51495-00000-000 |
— | ||
|
27
|
27
35151-00000-000
Cable
|
35151-00000-000 |
— | ||
|
28
|
28
02004-00000-000
Washer,rubber
|
02004-00000-000 |
— | ||
|
29
|
29
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
29
|
29
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
29
|
29
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
