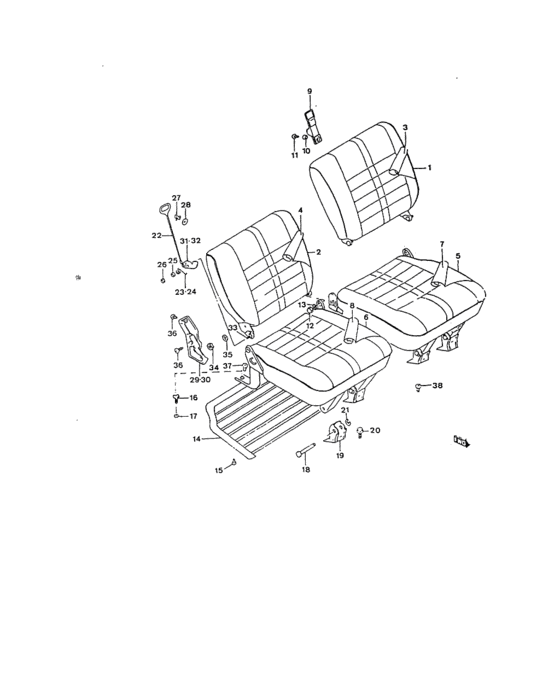

Rear seat (REAR SEAT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
50265-00000-000
Seat assy,lh,mater.
TYPE 1,United Kingdom,BLACK,RED |
50265-00000-000 |
— | ||
|
|
50291-00000-000
Seat assy,lh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50291-00000-000 |
— | ||
|
|
51258-00000-000
Seat assy,lh,mater.
TYPE 1,'BROWN SAMURAI |
51258-00000-000 |
— | ||
|
|
51259-00000-ARA
Seat assy,lh,mater.
TYPE 1,'GREY SAMURAI' |
51259-00000-ARA |
— | ||
|
|
51259-SPORT-000
Seat assy,lh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51259-SPORT-000 |
— | ||
|
|
51259-STYLE-000
Seat assy,lh,mater.
TYPE 1,United Kingdom,GREY,RED |
51259-STYLE-000 |
— | ||
|
|
52626-00000-K58
Seat assy,lh,mater.
TYPE 2,TYPE 3 |
52626-00000-K58 |
— | ||
|
|
51250-00000-000
Seat assy,lh,vinyl
TYPE 1,'BROWN HUELLA' |
51250-00000-000 |
— | ||
|
|
51251-00000-000
Siege arrie, ems.g
TYPE 1,'GREY HUELLA' |
51251-00000-000 |
— | ||
|
|
52612-00000-L45
Seat assy,lh,vinyl
TYPE 2,TYPE 3 |
52612-00000-L45 |
— | ||
|
|
87002-84C00-000
Seat assy,lh,vinyl
TYPE 3:LB:France,Spain, |
87002-84C00-000 |
— | ||
|
|
50284-00000-000
Seat assy,rh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50284-00000-000 |
— | ||
|
|
51244-00000-000
Seat assy,rh,mater.
TYPE 1,'BROWN SAMURAI |
51244-00000-000 |
— | ||
|
|
51245-SPORT-000
Seat assy,rh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51245-SPORT-000 |
— | ||
|
|
51245-STYLE-000
Seat assy,rh,mater.
TYPE 1,United Kingdom,GREY,RED |
51245-STYLE-000 |
— | ||
|
|
51247-00000-000
Seat assy,rh,mater.
TYPE 1,United Kingdom,BLACK,RED |
51247-00000-000 |
— | ||
|
|
51850-00000-000
Seat assy,rh,mater.
TYPE 1,'GREY SAMURAI' |
51850-00000-000 |
— | ||
|
|
52619-00000-K58
Seat assy,rh,mater.
TYPE 2,TYPE 3 |
52619-00000-K58 |
— | ||
|
|
51236-00000-000
Seat assy,rh,vinyl
TYPE 1,'BROWN HUELLA' |
51236-00000-000 |
— | ||
|
|
51237-00000-000
Siege arrie, ems.d
TYPE 1,'GREY HUELLA' |
51237-00000-000 |
— | ||
|
|
52605-00000-L45
Seat assy,rh,vinyl
TYPE 2,TYPE 3 |
52605-00000-L45 |
— | ||
|
|
87001-84C00-L45
Seat assy,rh,vinyl
TYPE 3:LB:France,Spain, |
87001-84C00-L45 |
— | ||
|
1
|
1
50266-00000-000
Back assy,lh,mater.
TYPE 1,United Kingdom,BLACK,RED |
50266-00000-000 |
— | ||
|
1
|
1
50292-00000-000
Back assy,lh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50292-00000-000 |
— | ||
|
1
|
1
51278-00000-000
Back assy,lh,vinyl
TYPE 1,'BROWN HUELLA' |
51278-00000-000 |
— | ||
|
1
|
1
51279-00000-000
Dossier arrie.cg
TYPE 1,'GREY HUELLA' |
51279-00000-000 |
— | ||
|
1
|
1
51286-00000-000
Back assy,lh,mater.
TYPE 1,'BROWN SAMURAI |
51286-00000-000 |
— | ||
|
1
|
1
51287-SPORT-000
Back assy,lh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51287-SPORT-000 |
— | ||
|
1
|
1
51287-STYLE-000
Back assy,lh,mater.
TYPE 1,United Kingdom,GREY,RED |
51287-STYLE-000 |
— | ||
|
1
|
1
51856-00000-000
Back assy,lh,mater.
TYPE 1,'GREY SAMURAI' |
51856-00000-000 |
— | ||
|
1
|
1
52613-00000-L45
Back assy,lh,vinyl
TYPE 2,TYPE 3 |
52613-00000-L45 |
— | ||
|
1
|
1
52627-00000-K58
Back assy,lh,mater.
TYPE 2,TYPE 3 |
52627-00000-K58 |
— | ||
|
1
|
1
87500-84C00-000
Back assy,lh,vinyl
TYPE 1:LB:France,Spain, |
87500-84C00-000 |
— | ||
|
2
|
2
50285-00000-000
Back assy,rh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50285-00000-000 |
— | ||
|
2
|
2
51272-00000-000
Back assy,rh,mater.
TYPE 1,'BROWN SAMURAI |
51272-00000-000 |
— | ||
|
2
|
2
51275-00000-000
Back assy,rh,mater.
TYPE 1,United Kingdom,BLACK,RED |
51275-00000-000 |
— | ||
|
2
|
2
51851-00000-000
Back assy,rh,mater.
TYPE 1,'GREY SAMURAI' |
51851-00000-000 |
— | ||
|
2
|
2
51264-00000-000
Back assy,rh,vinyl
TYPE 1,'BROWN HUELLA' |
51264-00000-000 |
— | ||
|
2
|
2
51265-00000-000
Dossier arrie.cd
TYPE 1,'GREY HUELLA' |
51265-00000-000 |
— | ||
|
2
|
2
51273-SPORT-000
Back assy,rh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51273-SPORT-000 |
— | ||
|
2
|
2
51273-STYLE-000
Back assy,rh,mater.
TYPE 1,United Kingdom,GREY,RED |
51273-STYLE-000 |
— | ||
|
2
|
2
52606-00000-L45
Back assy,rh,vinyl
TYPE 2,TYPE 3 |
52606-00000-L45 |
— | ||
|
2
|
2
52620-00000-K58
Back assy,rh,mater.
TYPE 2,TYPE 3 |
52620-00000-K58 |
— | ||
|
2
|
2
87001-84C00-000
Back assy,rh,vinyl
TYPE 3:LB:France,Spain, |
87001-84C00-000 |
— | ||
|
3
|
3
50260-00000-000
Back trim,lh,mater.
TYPE 1,United Kingdom,BLACK,RED |
50260-00000-000 |
— | ||
|
3
|
3
50206-00000-000
Tapisserie droit mod j gris
TYPE 1,United Kingdom,GREY,YELLOW |
50206-00000-000 |
— | ||
|
3
|
3
51306-00000-000
Back trim,lh,vinyl
TYPE 1,'BROWN HUELLA' |
51306-00000-000 |
— | ||
|
3
|
3
51307-00000-000
Tapis dossier. cg
TYPE 1,'GREY HUELLA' |
51307-00000-000 |
— | ||
|
3
|
3
51314-00000-000
Back trim,lh,mater.
TYPE 1,'BROWN SAMURAI |
51314-00000-000 |
— | ||
|
3
|
3
51315-SPORT-000
Back trim,lh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51315-SPORT-000 |
— | ||
|
3
|
3
51315-STYLE-000
Back trim,lh,mater.
TYPE 1,United Kingdom,GREY,RED |
51315-STYLE-000 |
— | ||
|
3
|
3
51857-00000-000
Back trim,lh,mater.
TYPE 1,'GREY SAMURAI' |
51857-00000-000 |
— | ||
|
3
|
3
52614-00000-L45
Back trim,lh,vinyl
TYPE 2,TYPE 3 |
52614-00000-L45 |
— | ||
|
3
|
3
52628-00000-K58
Back trim,lh,mater
TYPE 2,TYPE 3 |
52628-00000-K58 |
— | ||
|
3
|
3
87510-84C00-000
Back trim,lh,vinyl
TYPE 3:LB:France,Spain, |
87510-84C00-000 |
— | ||
|
4
|
4
50286-00000-000
Back trim,rh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50286-00000-000 |
— | ||
|
4
|
4
51292-00000-000
Back trim,rh,vinyl.
TYPE 1,'BROWN HUELLA' |
51292-00000-000 |
— | ||
|
4
|
4
51293-00000-000
Tapis dossier cd
TYPE 1,'GREY HUELLA' |
51293-00000-000 |
— | ||
|
4
|
4
51300-00000-000
Back trim,rh,mater.
TYPE 1,'BROWN SAMURAI |
51300-00000-000 |
— | ||
|
4
|
4
51301-SPORT-000
Back trim,rh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51301-SPORT-000 |
— | ||
|
4
|
4
51301-STYLE-000
Back trim,rh,mater.
TYPE 1,United Kingdom,GREY,RED |
51301-STYLE-000 |
— | ||
|
4
|
4
51303-00000-000
Back trim,rh,mater.
TYPE 1,United Kingdom,BLACK,RED |
51303-00000-000 |
— | ||
|
4
|
4
51852-00000-000
Back trim,rh,mater.
TYPE 1,'GREY SAMURAI' |
51852-00000-000 |
— | ||
|
4
|
4
52607-00000-L45
Back trim,rh,vinyl
TYPE 2,TYPE 3 |
52607-00000-L45 |
— | ||
|
4
|
4
52621-00000-K58
Back trim,rh,mater.
TYPE 2,TYPE 3 |
52621-00000-K58 |
— | ||
|
4
|
4
87110-84C00-000
Back trim,rh,vinyl
TYPE 2:LB:France,Spain, |
87110-84C00-000 |
— | ||
|
5
|
5
50267-00000-000
Cush.assy,lh,mater.
TYPE 1,United Kingdom,BLACK,RED |
50267-00000-000 |
— | ||
|
5
|
5
50293-00000-000
Cush.assy,lh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50293-00000-000 |
— | ||
|
5
|
5
51362-00000-000
Cush.assy,lh,vinyl
TYPE 1,'BROWN HUELLA' |
51362-00000-000 |
— | ||
|
5
|
5
51363-00000-000
Ens siege cg
TYPE 1,'GREY HUELLA' |
51363-00000-000 |
— | ||
|
5
|
5
51370-00000-000
Cush.assy,lh,mater.
TYPE 1,'BROWN SAMURAI |
51370-00000-000 |
— | ||
|
5
|
5
51371-SPORT-000
Cush.assy,lh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51371-SPORT-000 |
— | ||
|
5
|
5
51371-STYLE-000
Cush.assy,lh,mater.
TYPE 1,United Kingdom,GREY,RED |
51371-STYLE-000 |
— | ||
|
5
|
5
51858-00000-000
Cush.assy,lh,mater.
TYPE 1,'GREY SAMURAI' |
51858-00000-000 |
— | ||
|
5
|
5
52616-00000-L45
Cush.assy,lh,vinyl
TYPE 2,TYPE 3 |
52616-00000-L45 |
— | ||
|
5
|
5
52630-00000-K58
Cush.assy,lh,mater.
TYPE 2,TYPE 3 |
52630-00000-K58 |
— | ||
|
5
|
5
87600-84C00-000
Cush.assy,lh,vinyl
TYPE 3:LB,France,Spain, |
87600-84C00-000 |
— | ||
|
6
|
6
50288-00000-000
Cush.assy,rh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50288-00000-000 |
— | ||
|
6
|
6
51348-00000-000
Cush.assy,rh,vinyl
TYPE 1,'BROWN HUELLA' |
51348-00000-000 |
— | ||
|
6
|
6
51349-00000-000
Ens siege cd
TYPE 1,'GREY HUELLA' |
51349-00000-000 |
— | ||
|
6
|
6
51356-00000-000
Cush.assy,rh,mater.
TYPE 1,'BROWN SAMURAI |
51356-00000-000 |
— | ||
|
6
|
6
51357-SPORT-000
Cush.assy,rh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51357-SPORT-000 |
— | ||
|
6
|
6
51357-STYLE-000
Cush.assy,rh,mater.
TYPE 1,United Kingdom,GREY,RED |
51357-STYLE-000 |
— | ||
|
6
|
6
51359-00000-000
Cush.assy,rh,mater.
TYPE 1,United Kingdom,BLACK,RED |
51359-00000-000 |
— | ||
|
6
|
6
51853-00000-000
Cush.assy,rh,mater.
TYPE 1,'GREY SAMURAI' |
51853-00000-000 |
— | ||
|
6
|
6
52609-00000-L45
Cush.assy,rh,vinyl
TYPE 2,TYPE 3 |
52609-00000-L45 |
— | ||
|
6
|
6
52623-00000-000
Cush.assy,rh,mater.
TYPE 2,TYPE 3 |
52623-00000-000 |
— | ||
|
6
|
6
87200-84000-000
Cush.assy,rh,vinyl
TYPE 3:LB:France,Spain, |
87200-84000-000 |
— | ||
|
7
|
7
50263-00000-000
Cush.trim,rh,mater.
TYPE 1,United Kingdom,BLACK,RED |
50263-00000-000 |
— | ||
|
7
|
7
50289-00000-000
Cush.trim,rh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50289-00000-000 |
— | ||
|
7
|
7
51058-SPORT-000
Cush.trim,lh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51058-SPORT-000 |
— | ||
|
7
|
7
51058-STYLE-000
Cush.trim,lh,mater.
TYPE 1,United Kingdom,GREY,RED |
51058-STYLE-000 |
— | ||
|
7
|
7
51060-00000-000
Cush.trim,lh,mater.
TYPE 1,'BROWN SAMURAI |
51060-00000-000 |
— | ||
|
7
|
7
51188-00000-000
Tapis coussin cg
TYPE 1,'GREY HUELLA' |
51188-00000-000 |
— | ||
|
7
|
7
51222-00000-000
Cush.trim,lh,vinyl
TYPE 1,'BROWN HUELLA' |
51222-00000-000 |
— | ||
|
7
|
7
51859-00000-000
Cush.trim,lh,mater.
TYPE 1,'GREY SAMURAI' |
51859-00000-000 |
— | ||
|
7
|
7
52617-00000-L45
Cush.trim,lh,vinyl
TYPE 2,TYPE 3 |
52617-00000-L45 |
— | ||
|
7
|
7
52631-00000-000
Cush.trim,lh,mater.
TYPE 2,TYPE 3 |
52631-00000-000 |
— | ||
|
7
|
7
87610-84C00-000
Cush.trim,lh,vinyl
TYPE 3:LB:France,Spain, |
87610-84C00-000 |
— | ||
|
8
|
8
50263-00000-000
Cush.trim,rh,mater.
TYPE 1,United Kingdom,BLACK,RED |
50263-00000-000 |
— | ||
|
8
|
8
50289-00000-000
Cush.trim,rh,mater.
TYPE 1,United Kingdom,GREY,YELLOW |
50289-00000-000 |
— | ||
|
8
|
8
51057-SPORT-000
Cush.trim,rh,mater.
TYPE 1,United Kingdom,BLACK,BLUE |
51057-SPORT-000 |
— | ||
|
8
|
8
51057-STYLE-000
Cush.trim,rh,mater.
TYPE 1,United Kingdom,GREY,RED |
51057-STYLE-000 |
— | ||
|
8
|
8
51059-00000-000
Cush.trim,rh,mater.
TYPE 1,'BROWN SAMURAI |
51059-00000-000 |
— | ||
|
8
|
8
51183-00000-000
Tapis coussin cd
TYPE 1,'GREY HUELLA' |
51183-00000-000 |
— | ||
|
8
|
8
51217-00000-000
Cush.trim,rh,vinyl
TYPE 1,'BROWN HUELLA' |
51217-00000-000 |
— | ||
|
8
|
8
51854-00000-000
Cush.trim,rh,mater.
TYPE 1,'GREY SAMURAI' |
51854-00000-000 |
— | ||
|
8
|
8
52610-00000-L45
Cush.trim,rh,vinyl
TYPE 2,TYPE 3 |
52610-00000-L45 |
— | ||
|
8
|
8
52624-00000-K58
Cush.trim,rh,mater.
TYPE 2,TYPE 3 |
52624-00000-K58 |
— | ||
|
8
|
8
87210-84C00-000
Cush.trim,rh,vinyl
TYPE 3:LB:France,Spain, |
87210-84C00-000 |
— | ||
|
9
|
9
50685-00000-000
Courroie mod. j
|
50685-00000-000 |
— | ||
|
9
|
9
50886-00000-000
Belt,'v'
|
50886-00000-000 |
— | ||
|
10
|
10
87001-F8330-000
Retendeur
|
87001-F8330-000 |
— | ||
|
11
|
11
03111-04255-000
Screw
|
03111-04255-000 |
— | ||
|
12
|
12
06003-00000-000
Rivet
|
06003-00000-000 |
— | ||
|
13
|
13
09160-06064-000
Rondellle
|
09160-06064-000 |
— | ||
|
16
|
16
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
17
|
17
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
18
|
18
09208-A0600-100
Goujon
|
09208-A0600-100 |
— | ||
|
19
|
19
87110-D8330-000
Female hinge
|
87110-D8330-000 |
— | ||
|
20
|
20
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
21
|
21
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
22
|
22
87214-83000-000
HANDLE
|
87214-83000-000 |
— | ||
|
23
|
23
83914-73062-000
SPRING,HINGE,R
|
83914-73062-000 |
— | ||
|
24
|
24
83944-73062-000
SPRING,HINGE,L
|
83944-73062-000 |
— | ||
|
25
|
25
87325-83000-000
COLLAR,HINGE BOLT
|
87325-83000-000 |
— | ||
|
26
|
26
08316-A1608-600
Ecrou
|
08316-A1608-600 |
— | ||
|
27
|
27
09403-06403-000 CLAMP |
09403-06403-000 |
US $1.60 |
||
|
28
|
28
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMP |
87328-83000-000 |
US $1.60 |
||
|
29
|
29
51565-00000-000
Brown cover r/h
|
51565-00000-000 |
— | ||
|
29
|
29
51368-00000-5ES
Cover r/h
|
51368-00000-5ES |
— | ||
|
29
|
29
51368-00000-5PK
Cover r/h
|
51368-00000-5PK |
— | ||
|
30
|
30
51566-00000-000
Brown cover l/h
|
51566-00000-000 |
— | ||
|
30
|
30
51567-00000-5ES
Cover l/h
|
51567-00000-5ES |
— | ||
|
30
|
30
51567-00000-5PK
Cover l/h
|
51567-00000-5PK |
— | ||
|
31
|
31
87212-80200-000
LEVER
|
87212-80200-000 |
— | ||
|
32
|
32
87612-80200-000 LEVER |
87612-80200-000 |
US $3.35 |
||
|
33
|
33
51086-00000-000
Rwet
|
51086-00000-000 |
— | ||
|
34
|
34
08313-B1106-300
Nut
|
08313-B1106-300 |
— | ||
|
35
|
35
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
35
|
35
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
36
|
36
03241-05085-000
New Genuine Part
|
03241-05085-000 |
— | ||
| replacement | |||||
|
36
|
36
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
37
|
37
50466-00000-000
Rear screw
'J',Belgium |
50466-00000-000 |
— | ||
|
38
|
38
50463-00000-000
Front screw
'J',Belgium |
50463-00000-000 |
— | ||
