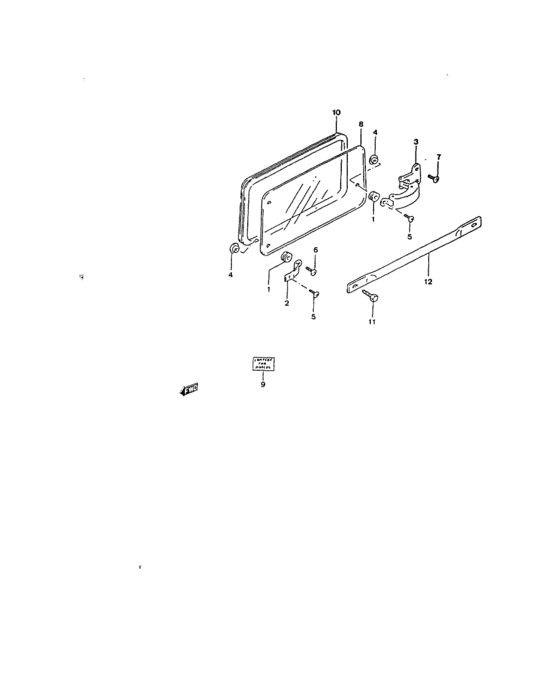

Side window (SIDE WINDOW) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69275-78200-000 PAD,QUARTER WINDOW |
69275-78200-000 |
US $1.44 |
||
|
2
|
2
81411-00100-000
Hinge
|
81411-00100-000 |
— | ||
|
3
|
3
81430-80102-000 LOCK,QTR WINDOW GLASS |
81430-80102-000 |
US $60 |
||
|
4
|
4
81451-80101-000
カバー,クォータウィンドガラス,アウタ
H MAY 90 |
81451-80101-000 |
— | ||
| replacement | |||||
|
4
|
4
81451-80102-000 COVER,QUARTER WINDOW GLASSH MAY 90 |
81451-80102-000 |
US $2.24 |
||
|
4
|
4
81451-80102-000 COVER,QUARTER WINDOW GLASSD MAY 90 |
81451-80102-000 |
US $2.24 |
||
|
5
|
5
02142-05085-000
Screw
|
02142-05085-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
6
|
6
02142-05168-000
Screw
|
02142-05168-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-05167-000 SCREWScrew, air intk guide no.2 |
02142-05167-000 |
from US $0.76 |
||
|
7
|
7
02142-05165-000
Screw
|
02142-05165-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
7
|
7
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
8
|
8
84561-80112-000
ガラス,クォータウィンド(ホワイト)
NO COLOUR |
84561-80112-000 |
— | ||
| replacement | |||||
|
8
|
8
84561-82C00-000
GLASS,QTR WINDOW
NO COLOUR |
84561-82C00-000 |
— | ||
|
8
|
8
84561-80113-000
Window side glass
NO COLOUR-ALTERN. |
84561-80113-000 |
— | ||
|
8
|
8
84561-A8012-100
Window side glass
GREEN |
84561-A8012-100 |
— | ||
|
9
|
9
52886-00000-000
Emblem 'c/m'
|
52886-00000-000 |
— | ||
|
10
|
10
84621-A8010-100
Profile
TYPE 1 |
84621-A8010-100 |
— | ||
|
10
|
10
84621-B8010-100
Weatherstrip, qtr window
TYPE 2,TYPE 3 |
84621-B8010-100 |
— | ||
|
11
|
11
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
11
|
11
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
12
|
12
81111-85000-0CK
Protecting bar
|
81111-85000-0CK |
— | ||
