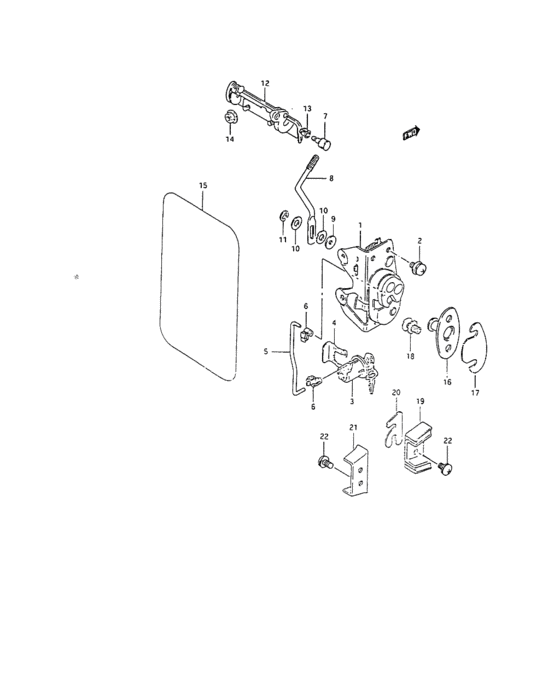

Srr door lock, v (SRR DOOR LOCK, V) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82530-80101-000
LOCK ASSY,BACK DR
|
82530-80101-000 |
— | ||
|
1
|
1
82530-80111-000
LOCK ASSY,BACK DR
INJ |
82530-80111-000 |
— | ||
|
2
|
2
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
2
|
2
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
2
|
2
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
2
|
2
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
2
|
2
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
3
|
3
51590-00000-000
Fermeture antivol
D 81094 |
51590-00000-000 |
— | ||
|
3
|
3
82270-80100-000
Rear door
INJ |
82270-80100-000 |
— | ||
|
3
|
3
82270-A8010-000
Barrillet
H 81093 |
82270-A8010-000 |
— | ||
|
4
|
4
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
5
|
5
82581-80100-000
ROD,KEY CYLINDER CONTROL
|
82581-80100-000 |
— | ||
|
6
|
6
09209-05010-000
Joint part
|
09209-05010-000 |
— | ||
|
7
|
7
77716-79000-000 JOINT,ROD |
77716-79000-000 |
US $1.92 |
||
|
8
|
8
83231-80100-000 ROD,LOCK OUTSIDE HANDLE |
83231-80100-000 |
US $12.32 |
||
|
9
|
9
09161-04008-000 WASHER(4X12X2) |
09161-04008-000 |
US $16.20 |
||
|
10
|
10
09161-A0600-800
Rondelle
|
09161-A0600-800 |
— | ||
|
11
|
11
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
12
|
12
82810-A8010-200
Fermeture porte ar
|
82810-A8010-200 |
— | ||
|
13
|
13
82891-A8010-000
Arrest
|
82891-A8010-000 |
— | ||
|
14
|
14
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
14
|
14
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
14
|
14
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
83912-80100-000
Cover, door sealing
|
83912-80100-000 |
— | ||
| replacement | |||||
|
15
|
15
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
16
|
16
78110-79000-000
Fermeture
|
78110-79000-000 |
— | ||
| replacement | |||||
|
16
|
16
82660-80101-000 STRIKER,BACK DOOR LATCH |
82660-80101-000 |
US $16.80 |
||
|
17
|
17
78199-79000-000 SPACER |
78199-79000-000 |
US $1.60 |
||
|
18
|
18
09126-A0800-600
Screw
|
09126-A0800-600 |
— | ||
|
18
|
18
09163-A0800-200
Rondelle grower
|
09163-A0800-200 |
— | ||
|
19
|
19
78251-68201-000 MALE,BACK DR ST0P |
78251-68201-000 |
US $11.04 |
||
|
20
|
20
77891-63100-000 SPACER |
77891-63100-000 |
US $4.48 |
||
|
21
|
21
78261-68201-000 MALE,BACK DR ST0P |
78261-68201-000 |
US $11.04 |
||
|
22
|
22
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
22
|
22
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
22
|
22
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
22
|
22
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
