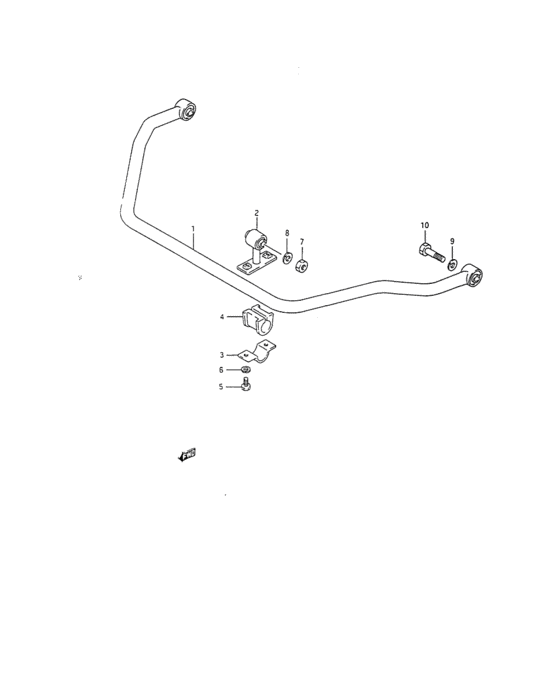

Stabilizer bar (STABILIZER BAR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42300-70A00-000 STABILIZER ASSY,FR |
42300-70A00-000 |
US $142.42 |
||
|
2
|
2
42400-83001-000 ROD ASSY,FR STABILIZER |
42400-83001-000 |
US $46.37 |
||
|
3
|
3
42415-83000-000
ブラケット,スタビライザバーマウント
|
42415-83000-000 |
— | ||
| replacement | |||||
|
3
|
3
42415-66D00-000 BRACKET,STABILIZER BAR MOUNT |
42415-66D00-000 |
from US $7.52 |
||
|
4
|
4
42412-70A00-000
ブッシング,スタビライザバーマウント
|
42412-70A00-000 |
— | ||
| replacement | |||||
|
4
|
4
42412-65D00-000 BUSHING,STAB BAR MOUNT |
42412-65D00-000 |
US $12.62 |
||
|
5
|
5
01707-08203-000
Screw
|
01707-08203-000 |
— | ||
|
6
|
6
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
7
|
7
08310-11103-000
Rondelle
|
08310-11103-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
8
|
8
08321-B3110-300
Rondelle
|
08321-B3110-300 |
— | ||
|
9
|
9
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
10
|
10
09100-12041-000
ボルト
|
09100-12041-000 |
— | ||
| replacement | |||||
|
10
|
10
09103-12501-000 BOLT(12X55) |
09103-12501-000 |
US $2.40 |
||
