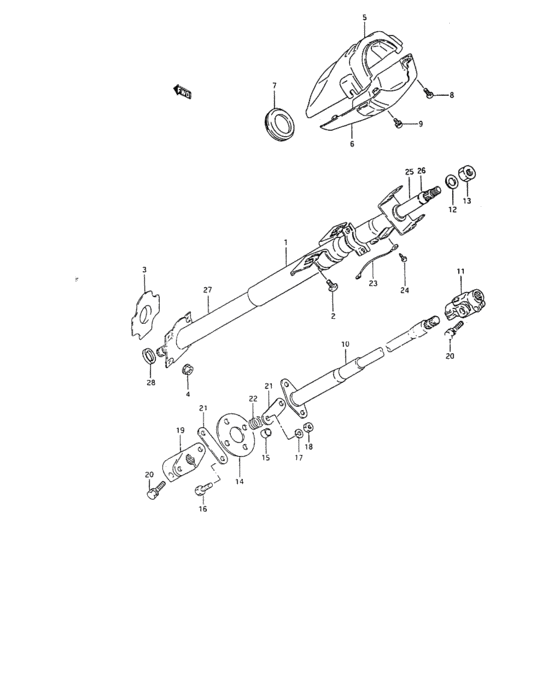

Steering column (STEERING COLUMN) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-80211-000
Column assy,colps steering
ALTERN.IN INJ |
48200-80211-000 |
— | ||
|
1
|
1
48200-C8021-000
Steering column assy
|
48200-C8021-000 |
— | ||
|
2
|
2
09103-A0815-200
Screw
|
09103-A0815-200 |
— | ||
|
3
|
3
48491-80000-000 SEAL,STEERING COLUMN |
48491-80000-000 |
US $2.13 |
||
|
4
|
4
08316-A1608-600
Ecrou
|
08316-A1608-600 |
— | ||
|
5
|
5
48411-80351-5ES
Cover, steering upper
INJ |
48411-80351-5ES |
— | ||
| replacement | |||||
|
5
|
5
48400-80350-5ES
COVER SET,STRG COLUMN
INJ |
48400-80350-5ES |
— | ||
|
5
|
5
48411-D8035-000
Upper cover
BROWN |
48411-D8035-000 |
— | ||
|
6
|
6
48421-80300-5ES
Cover, steering lower
INJ |
48421-80300-5ES |
— | ||
| replacement | |||||
|
6
|
6
48400-80350-5ES
COVER SET,STRG COLUMN
INJ |
48400-80350-5ES |
— | ||
|
6
|
6
48421-D8030-000
Lower cover
BROWN |
48421-D8030-000 |
— | ||
|
7
|
7
48419-75000-000 SEAL,STEERING COVERINJ |
48419-75000-000 |
US $1.60 |
||
|
8
|
8
03211-05166-000
Screw, l:16
INJ |
03211-05166-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0516A-000 SCREWINJ |
03211-0516A-000 |
US $0.80 |
||
|
9
|
9
02008-00000-000
Washer
INJ |
02008-00000-000 |
— | ||
|
9
|
9
02112-05105-000
Screw 5x10
|
02112-05105-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
9
|
9
02112-05120-000
Screw
INJ |
02112-05120-000 |
— | ||
|
9
|
9
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
9
|
9
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
9
|
9
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
10
|
10
48220-B8011-000
St.wheel lower shaft
|
48220-B8011-000 |
— | ||
|
11
|
11
48230-80120-000
Joint, steering
|
48230-80120-000 |
— | ||
| replacement | |||||
|
11
|
11
48230-80100-000 JOINT,STEERING |
48230-80100-000 |
US $161.12 |
||
|
12
|
12
00000-A0012-300
Rondelle
|
00000-A0012-300 |
— | ||
|
13
|
13
00000-A0012-200
Ecrou
|
00000-A0012-200 |
— | ||
|
14
|
14
48251-52000-000 JOINT,RUBBER |
48251-52000-000 |
from US $4 |
||
|
15
|
15
09180-08007-000 SPACER(8.1X11X9) |
09180-08007-000 |
from US $1.12 |
||
|
16
|
16
09100-08184-000
BOLT(8X25)
|
09100-08184-000 |
— | ||
|
17
|
17
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
18
|
18
08310-11086-000
Nut
|
08310-11086-000 |
— | ||
| replacement | |||||
|
18
|
18
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
19
|
19
48270-80000-000
Bride
|
48270-80000-000 |
— | ||
| replacement | |||||
|
19
|
19
48270-80011-000 FLANGE,STRG RUBBER JOINT |
48270-80011-000 |
US $20 |
||
|
20
|
20
08321-B3108-600
Grower washer
TYPE 1 |
08321-B3108-600 |
— | ||
|
20
|
20
09100-08218-000
BOLT(8X30)
TYPE 2,TYPE 3 |
09100-08218-000 |
— | ||
|
20
|
20
09111-08066-000 BOLT(8X30)TYPE 1 |
09111-08066-000 |
US $1.92 |
||
|
20
|
20
09117-08042-000
Screw
TYPE 1,TYPE 3 |
09117-08042-000 |
— | ||
| replacement | |||||
|
20
|
20
09117-08053-000 BOLT(8X30)TYPE 1,TYPE 3 |
09117-08053-000 |
US $20.20 |
||
|
21
|
21
48262-58000-000
Plaque
|
48262-58000-000 |
— | ||
| replacement | |||||
|
21
|
21
48262-58001-000 PLATE,STRG RUBBER JOINT |
48262-58001-000 |
US $1.60 |
||
|
22
|
22
48281-85000-000
Spring
|
48281-85000-000 |
— | ||
| replacement | |||||
|
22
|
22
09440-18002-000 SPRING |
09440-18002-000 |
from US $1.06 |
||
|
23
|
23
48528-80000-000
Lead wire,horn earth
TYPE 3:INJ |
48528-80000-000 |
— | ||
|
23
|
23
48528-A8000-000
Horn earth cable
TYPE 2:INJ |
48528-A8000-000 |
— | ||
|
24
|
24
03141-04086-000
New Genuine Part
INJ |
03141-04086-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0408A-000 SCREWINJ |
03141-0408A-000 |
US $0.80 |
||
|
25
|
25
00000-A0026-000
Ens axe
|
00000-A0026-000 |
— | ||
|
26
|
26
00000-A0026-100
Bague
|
00000-A0026-100 |
— | ||
|
27
|
27
00000-A0025-700
Ens superieur
|
00000-A0025-700 |
— | ||
|
28
|
28
00000-A0026-200
Anneau securite
|
00000-A0026-200 |
— | ||
