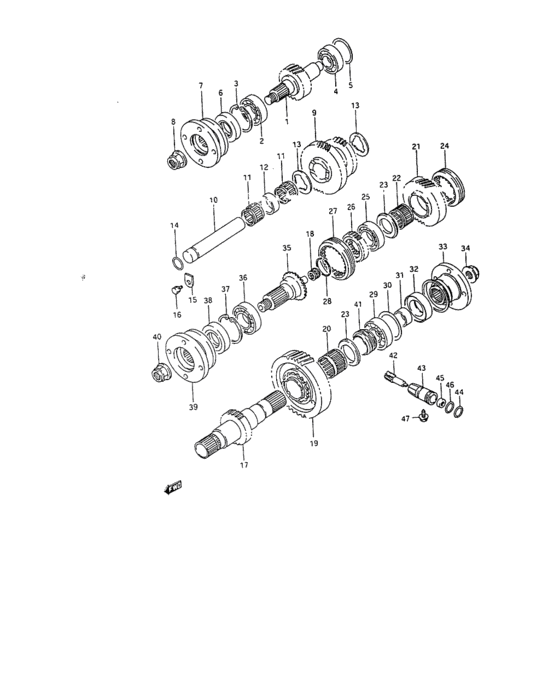

Transfer gear (TRANSFER GEAR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29111-85050-000
Inlet shaft
|
29111-85050-000 |
— | ||
|
2
|
2
29981-20050-000
Front bearing
TYPE 1 |
29981-20050-000 |
— | ||
|
2
|
2
29981-80051-000 BEARING,T/F OUT RR SHAFT RRTYPE 2,TYPE 3 |
29981-80051-000 |
US $35.20 |
||
|
3
|
3
29992-00050-000
Circlip
|
29992-00050-000 |
— | ||
|
4
|
4
29982-80050-000 BEARING,T/F INPUT SHAFT RRTYPE 1 |
29982-80050-000 |
US $60.80 |
||
|
4
|
4
29982-00051-000
Rear bearing
TYPE 2,TYPE 3 |
29982-00051-000 |
— | ||
|
5
|
5
29117-80050-000 SHIM,T/F INPUT SHAFT T:0.1 |
29117-80050-000 |
US $2.72 |
||
|
5
|
5
29118-80050-000 SHIM,T/F INPUT SHAFT T:0.3 |
29118-80050-000 |
US $2.72 |
||
|
5
|
5
29119-80050-000
シム,トランスファインプットシャフト,T:0.5
|
29119-80050-000 |
— | ||
|
6
|
6
29971-83050-000 SEAL,T/F INPUT SHAFT OIL |
29971-83050-000 |
from US $7.02 |
||
|
7
|
7
27110-85050-000
Clamp
|
27110-85050-000 |
— | ||
|
8
|
8
29951-83050-000 NUT |
29951-83050-000 |
from US $7.52 |
||
|
9
|
9
29121-83050-000 GEAR,T/F COUNTER |
29121-83050-000 |
US $224.96 |
||
|
10
|
10
29131-00050-000
Intermediate shaft
|
29131-00050-000 |
— | ||
|
11
|
11
29983-00050-000
Bearing
|
29983-00050-000 |
— | ||
|
12
|
12
29962-80050-000 SPACER,T/F CTSHFT |
29962-80050-000 |
US $3.72 |
||
|
13
|
13
29956-A8005-000
Washer
|
29956-A8005-000 |
— | ||
|
14
|
14
29975-80050-000 O-RING,T/F CTSHFT |
29975-80050-000 |
US $1.60 |
||
|
15
|
15
29156-00050-000
Plate
|
29156-00050-000 |
— | ||
|
16
|
16
01104-08163-000
Boulon
|
01104-08163-000 |
— | ||
|
16
|
16
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
17
|
17
29141-80050-000 SHAFT,T/F OUTPUT RR |
29141-80050-000 |
US $169.60 |
||
|
18
|
18
29986-80030-000
Bearing
|
29986-80030-000 |
— | ||
|
19
|
19
29211-83050-000 GEAR,T/F OUTPUT,LOW |
29211-83050-000 |
from US $185.89 |
||
|
20
|
20
29904-00050-000
Bearing
|
29904-00050-000 |
— | ||
|
21
|
21
29221-83050-000 GEAR,T/F OUTPUT,HIGH |
29221-83050-000 |
from US $120.20 |
||
|
22
|
22
29985-80030-000
Bearing
|
29985-80030-000 |
— | ||
|
23
|
23
29950-00050-000
Washer
|
29950-00050-000 |
— | ||
|
24
|
24
29241-00050-000
Moveable hose
|
29241-00050-000 |
— | ||
|
25
|
25
08173-63060-000 BEARINGTYPE 1 |
08173-63060-000 |
US $16 |
||
|
25
|
25
29987-60050-000
Front bearing
TYPE 2,TYPE 3 |
29987-60050-000 |
— | ||
|
26
|
26
29231-80050-000 HUB,FR DRIVE CLUTCH |
29231-80050-000 |
US $80.80 |
||
|
27
|
27
29241-80050-000 SLEEVE,REDUCTION CLUTCH |
29241-80050-000 |
from US $62.32 |
||
|
28
|
28
29911-80050-000 CIRCLIP,FR DR HUB |
29911-80050-000 |
US $1.60 |
||
|
29
|
29
29981-80050-000 BEARING,T/F OUT SHAFT FRTYPE 1 |
29981-80050-000 |
US $66.40 |
||
|
29
|
29
29981-80051-000 BEARING,T/F OUT RR SHAFT RRTYPE 2,TYPE 3 |
29981-80051-000 |
US $35.20 |
||
|
30
|
30
29147-80050-000 SHIM,T/F OUTPUT SHAFT T:0.1 |
29147-80050-000 |
US $2.72 |
||
|
30
|
30
29148-80050-000 SHIM,T/F OUTPUT SHAFT T:0.3 |
29148-80050-000 |
US $2.72 |
||
|
30
|
30
29149-80050-000
シム,トランスファアウトプツトシャフト,T:0.5
|
29149-80050-000 |
— | ||
|
31
|
31
29145-80050-000 SHIM,T/F OUTPUT SHAFT T:0.2 |
29145-80050-000 |
US $2.98 |
||
|
32
|
32
29972-80050-000 SEAL,OIL |
29972-80050-000 |
from US $6.26 |
||
|
33
|
33
27110-03251-000
Gasket clamp assy
|
27110-03251-000 |
— | ||
|
34
|
34
29951-83050-000 NUT |
29951-83050-000 |
from US $7.52 |
||
|
35
|
35
29151-80050-000
シャフト,トランスファアウトプツト,フロント
|
29151-80050-000 |
— | ||
| replacement | |||||
|
35
|
35
29151-80051-000 SHAFT,T/F OUTPUT FR |
29151-80051-000 |
US $157.60 |
||
|
36
|
36
29981-80050-000 BEARING,T/F OUT SHAFT FRTYPE 1 |
29981-80050-000 |
US $66.40 |
||
|
36
|
36
29981-80051-000 BEARING,T/F OUT RR SHAFT RRTYPE 2,TYPE 3 |
29981-80051-000 |
US $35.20 |
||
|
37
|
37
29992-80050-000 CIRCLIP,T/F INPUT SHAFT BRG |
29992-80050-000 |
from US $2.88 |
||
|
38
|
38
29971-80051-000
オイルシート,インプットシャフト
|
29971-80051-000 |
— | ||
| replacement | |||||
|
38
|
38
29971-83050-000 SEAL,T/F INPUT SHAFT OIL |
29971-83050-000 |
from US $7.02 |
||
|
39
|
39
27110-83053-000 FLANGE,UNIVERSAL JOINT |
27110-83053-000 |
US $98.05 |
||
|
40
|
40
29951-03050-000
Nut
|
29951-03050-000 |
— | ||
|
41
|
41
29411-83050-000
Engrenage
TYPE 1 |
29411-83050-000 |
— | ||
| replacement | |||||
|
41
|
41
29411-83051-000 GEAR,SPDOM DRIVETYPE 1 |
29411-83051-000 |
US $40.80 |
||
|
41
|
41
29411-83051-000 GEAR,SPDOM DRIVETYPE 2,TYPE 3 |
29411-83051-000 |
US $40.80 |
||
|
42
|
42
29421-80450-000
Engrenage conducteur
TYPE 1 |
29421-80450-000 |
— | ||
| replacement | |||||
|
42
|
42
29421-80451-000 GEAR,SPDOM DRIVENTYPE 1 |
29421-80451-000 |
US $41.60 |
||
|
42
|
42
29421-80451-000 GEAR,SPDOM DRIVENTYPE 2,TYPE 3 |
29421-80451-000 |
US $41.60 |
||
|
43
|
43
29431-80051-000
ケース,スピードメータドライブギヤ
TYPE 1 |
29431-80051-000 |
— | ||
| replacement | |||||
|
43
|
43
29430-80810-000 CASE,SPEEDOMETER DRIVEN GEARTYPE 1 |
29430-80810-000 |
US $21.60 |
||
|
43
|
43
29431-80052-000
Case, speedometer gear
TYPE 2,TYPE 3 |
29431-80052-000 |
— | ||
| replacement | |||||
|
43
|
43
29430-80810-000 CASE,SPEEDOMETER DRIVEN GEARTYPE 2,TYPE 3 |
29430-80810-000 |
US $21.60 |
||
|
44
|
44
29977-80050-000 O-RING,SPDOM GEAR CASE NO.2 |
29977-80050-000 |
US $1.92 |
||
|
45
|
45
29973-80050-000 SEAL,SPDOM GEAR CASE OIL |
29973-80050-000 |
US $2.56 |
||
|
46
|
46
09280-19001-000 O RING(D:1.9,ID:18.8)O ring |
09280-19001-000 |
from US $1.60 |
||
|
47
|
47
09128-06032-000 SCREW(6X13.5) |
09128-06032-000 |
US $1.22 |
||
