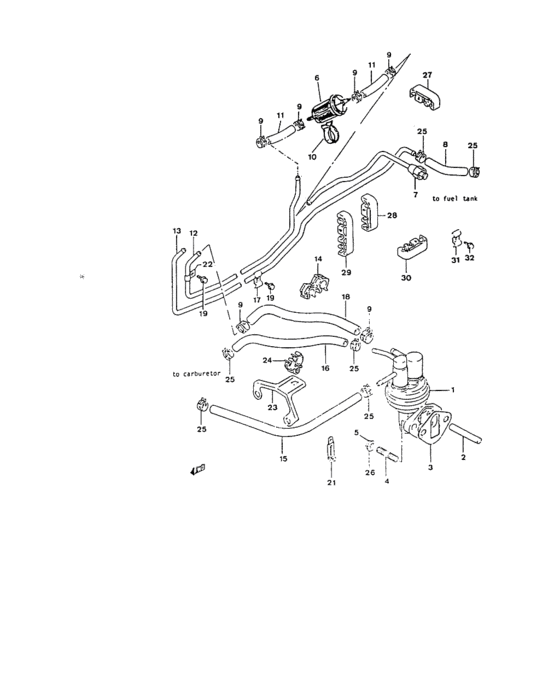

Carb. fuel pump (CARB. FUEL PUMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-A8300-000
Pump assy, fuel
|
15100-A8300-000 |
— | ||
|
1
|
1
15100-B8300-000
Fuel pump
ALTERN. |
15100-B8300-000 |
— | ||
|
2
|
2
15315-82000-000 ROD,FUEL PUMP |
15315-82000-000 |
US $3.04 |
||
|
3
|
3
15319-A63B0-000
Fuel pump gasket
|
15319-A63B0-000 |
— | ||
|
4
|
4
13117-60B00-000
Stud bolt
|
13117-60B00-000 |
— | ||
| replacements | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
|
5
|
5
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
6
|
6
15410-A6340-100
Filter, fuel
|
15410-A6340-100 |
— | ||
|
7
|
7
15610-A70A1-000
Outlet hose
TYPE 3 |
15610-A70A1-000 |
— | ||
|
7
|
7
15810-A8001-000
Tube sortie reservoi
TYPE 1,TYPE 2 |
15810-A8001-000 |
— | ||
|
7
|
7
15810-A8031-100
Hose,outlet
LONG BODY |
15810-A8031-100 |
— | ||
|
8
|
8
09343-A0403-600
Hose,l.125
|
09343-A0403-600 |
— | ||
|
9
|
9
00010-00000-000
Collier tuyau
|
00010-00000-000 |
— | ||
|
9
|
9
09401-A1140-400
Colher
TYPE 2,TYPE 3 |
09401-A1140-400 |
— | ||
|
10
|
10
09403-A4530-100
Clip fij. filtre
|
09403-A4530-100 |
— | ||
|
11
|
11
09354-70124-059
Hose
|
09354-70124-059 |
— | ||
|
12
|
12
15821-A70A1-200
Hose.pump to carbur.
TYPE 3 |
15821-A70A1-200 |
— | ||
|
12
|
12
15821-A8301-000
Tube combut filtre
TYPE 1,TYPE 2 |
15821-A8301-000 |
— | ||
|
13
|
13
15861-83010-000
Tube retoir
TYPE 1,TYPE 2 |
15861-83010-000 |
— | ||
| replacement | |||||
|
13
|
13
15861-83022-000 PIPE,FUEL RTNTYPE 1,TYPE 2 |
15861-83022-000 |
US $47.10 |
||
|
13
|
13
15861-83510-000
Pipe, return
LONG BODY |
15861-83510-000 |
— | ||
| replacement | |||||
|
13
|
13
15861-83520-000
PIPE,FUEL RTN
LONG BODY |
15861-83520-000 |
— | ||
|
13
|
13
15861-A70A4-200
Pipe, return
TYPE 3 |
15861-A70A4-200 |
— | ||
|
14
|
14
09408-A0008-300
Ens clip support
|
09408-A0008-300 |
— | ||
|
15
|
15
15870-83002-000
Hose, pump to pipe
|
15870-83002-000 |
— | ||
| replacement | |||||
|
15
|
15
09356-42115-600 HOSE(4.2X11.2X600) |
09356-42115-600 |
US $15.52 |
||
|
16
|
16
15830-83001-000
Hose, pump to carburator
TYPE 2,TYPE 3 |
15830-83001-000 |
— | ||
| replacement | |||||
|
16
|
16
15830-83X50-000
HOSE,FUEL PUMP TO CARB
TYPE 2,TYPE 3 |
15830-83X50-000 |
— | ||
|
16
|
16
15830-A8300-100
Hose,pump-carbur.
TYPE 1 |
15830-A8300-100 |
— | ||
|
17
|
17
15819-78000-000
Clamp, fuel pipe
|
15819-78000-000 |
— | ||
| replacement | |||||
|
17
|
17
15819-78101-000
CLAMP
|
15819-78101-000 |
— | ||
|
18
|
18
15840-83002-000
Hose, pipe to pump
|
15840-83002-000 |
— | ||
| replacement | |||||
|
18
|
18
09356-76145-600 HOSE(7.6X14X600)Hose (7.6x14x600) |
09356-76145-600 |
from US $22.63 |
||
|
19
|
19
00011-00000-000
Vis
|
00011-00000-000 |
— | ||
|
20
|
20
09404-A0840-500
Collier
|
09404-A0840-500 |
— | ||
|
21
|
21
34759-A7813-000
Clamp
|
34759-A7813-000 |
— | ||
|
22
|
22
09403-08309-000 CLAMP |
09403-08309-000 |
US $2.08 |
||
|
23
|
23
15881-60A00-000
Bracket
|
15881-60A00-000 |
— | ||
| replacement | |||||
|
23
|
23
15881-60A0V-000
BRACKET,FUEL HOSE CLAMP
|
15881-60A0V-000 |
— | ||
|
24
|
24
09408-00000-000
Hoses clip
D 63628-SHORT |
09408-00000-000 |
— | ||
|
25
|
25
09401-B1140-200
Clamp
|
09401-B1140-200 |
— | ||
|
26
|
26
08321-B5108-600
Grower washer
|
08321-B5108-600 |
— | ||
|
27
|
27
15892-70A00-000 CLAMP,FUEL PIPETYPE 3 |
15892-70A00-000 |
US $2.58 |
||
|
28
|
28
15893-70A00-000
CLAMP,FUEL,PIPE
TYPE 3 |
15893-70A00-000 |
— | ||
|
29
|
29
15895-70A00-000
CLAMP,FUEL PIPE
TYPE 3 |
15895-70A00-000 |
— | ||
|
30
|
30
15897-70A00-000
Clamp,fuel pipe
TYPE 3 |
15897-70A00-000 |
— | ||
|
31
|
31
09403-08310-000 CLAMPTYPE 1,TYPE 2 |
09403-08310-000 |
US $1.12 |
||
|
32
|
32
09132-06006-000 SCREW(6X12)TYPE 1,TYPE 2 |
09132-06006-000 |
US $1.60 |
||
