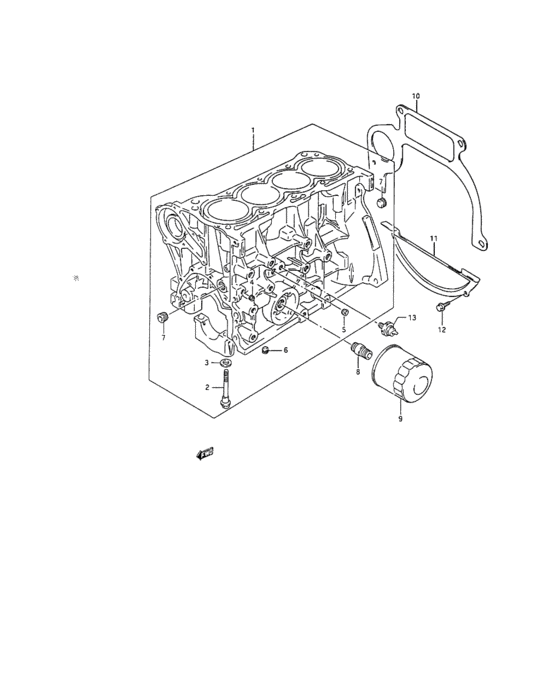

Cylinder block (CYLINDER BLOCK) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-82604-000
Block assy, cylinder *
H 104555 |
11200-82604-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-82606-000
Block assy,cylinder
H 104555 |
11200-82606-000 |
— | ||
|
2
|
2
09103-10067-000
ボルト,10X70
|
09103-10067-000 |
— | ||
| replacements | |||||
|
2
|
2
11260-50G01-000 BOLT,CRANK BEARING CAP |
11260-50G01-000 |
US $1.98 |
||
|
2
|
2
11260-50G00-000
ボルト,ベアリングキャップ
|
11260-50G00-000 |
— | ||
|
3
|
3
09160-10039-000 WASHER(10.5X22X2.3) |
09160-10039-000 |
from US $1.06 |
||
|
4
|
4
00246-05003-000
Oil hose plug
|
00246-05003-000 |
— | ||
|
5
|
5
09246-00001-000
Oil hose plug
|
09246-00001-000 |
— | ||
|
6
|
6
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
6
|
6
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
7
|
7
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
8
|
8
11241-82010-000
Stand, oil filler
|
11241-82010-000 |
— | ||
|
9
|
9
16510-B8300-000
Element filtre mann
|
16510-B8300-000 |
— | ||
|
10
|
10
11311-83000-000
Plate, clutch housing upper
|
11311-83000-000 |
— | ||
| replacement | |||||
|
10
|
10
11311-63A01-000
PLATE,CLUTCH HSG UPPER
|
11311-63A01-000 |
— | ||
|
11
|
11
11520-83000-000
Clutch upper plate
|
11520-83000-000 |
— | ||
|
12
|
12
01514-06103-000
Vis fixation deflect
|
01514-06103-000 |
— | ||
|
13
|
13
37820-S8200-000
Oil pressure switch
|
37820-S8200-000 |
— | ||
