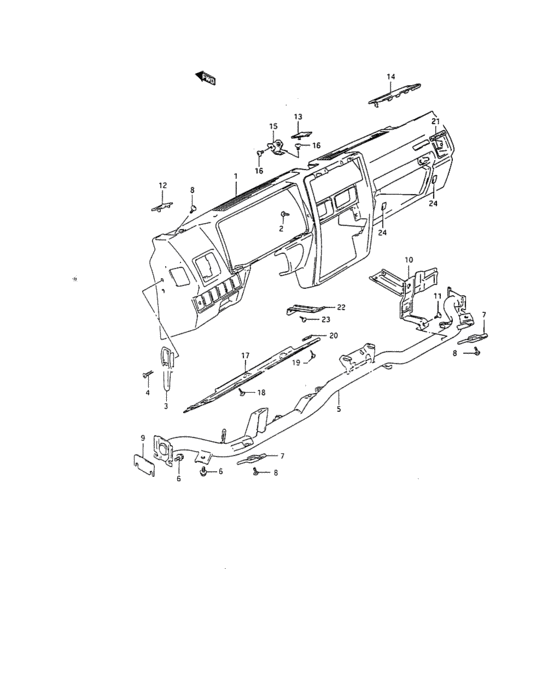

Dashboar. garnish (DASHBOAR. GARNISH) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-70A11-5ES
Panel, cover
TYPE 2,TYPE 3:INJ |
73111-70A11-5ES |
— | ||
| replacement | |||||
|
1
|
1
73111-70A12-5ES
PANEL,I/P
TYPE 2,TYPE 3:INJ |
73111-70A12-5ES |
— | ||
|
1
|
1
73111-A70A0-100
Dash board
United Kingdom |
73111-A70A0-100 |
— | ||
|
1
|
1
73111-B70A1-100
Dash board
BROWN |
73111-B70A1-100 |
— | ||
|
2
|
2
02142-06125-000
Screw
TYPE 2,TYPE 3:INJ |
02142-06125-000 |
— | ||
| replacements | |||||
|
2
|
2
02142-0612B-000 SCREWTYPE 2,TYPE 3:INJ |
02142-0612B-000 |
from US $0.76 |
||
|
2
|
2
02142-0612A-000 SCREWTYPE 2,TYPE 3:INJ |
02142-0612A-000 |
from US $0.80 |
||
|
3
|
3
72430-80002-000 HANDLE,WINDOW LOCK'J' |
72430-80002-000 |
US $20.42 |
||
|
4
|
4
02112-06165-000 Screw, front fender |
02112-06165-000 |
US $0.65 |
||
| replacements | |||||
|
4
|
4
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
4
|
4
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
4
|
4
09160-06074-000 Washer,fuel tanWasher (6.5x24x1.6) |
09160-06074-000 |
US $1.75 |
||
| replacement | |||||
|
4
|
4
09160-06501-000 WASHER(6.5X24X1.6) |
09160-06501-000 |
from US $0.96 |
||
|
5
|
5
72310-70A00-000
ホルダ,ステアリングコラム,ライト
United Kingdom |
72310-70A00-000 |
— | ||
| replacement | |||||
|
5
|
5
72310-70A01-000 HOLDER,STEERING COLUMN,RUnited Kingdom |
72310-70A01-000 |
US $109.66 |
||
|
5
|
5
72310-A70A2-000
Sopport columne
|
72310-A70A2-000 |
— | ||
|
6
|
6
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
7
|
7
50747-00000-000
Tirant panneau
'V' |
50747-00000-000 |
— | ||
|
8
|
8
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
9
|
9
72321-80001-000
Bracket, steering plate
|
72321-80001-000 |
— | ||
| replacement | |||||
|
9
|
9
72321-80002-000
PLATE,STEERING COLUMN HOLDER
|
72321-80002-000 |
— | ||
|
10
|
10
73810-83031-000 STAY,HOOD LOCK OPENER |
73810-83031-000 |
US $20 |
||
|
11
|
11
03141-06125-000
New Genuine Part
|
03141-06125-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
12
|
12
73811-70A00-000
Couvercle panneau
TYPE 1 |
73811-70A00-000 |
— | ||
|
12
|
12
73811-70A00-5ES CAP,INSTPNL,NO.1TYPE 2,TYPE 3:INJ,United Kingdom |
73811-70A00-5ES |
US $1.60 |
||
|
12
|
12
73811-A70A0-000
Brown cover,n.1
|
73811-A70A0-000 |
— | ||
|
13
|
13
73812-70A01-000
Couvercle n3
TYPE 1 |
73812-70A01-000 |
— | ||
|
13
|
13
73812-70A01-5ES CAP,INSTPNL,NO.3TYPE 2,TYPE 3:INJ,United Kingdom |
73812-70A01-5ES |
US $1.60 |
||
|
13
|
13
73812-A70A0-100
Brown cover,n.3
|
73812-A70A0-100 |
— | ||
|
14
|
14
73821-70A11-5ES
CAP,INSTPNL,NO.2,R
TYPE 2,TYPE 3:INJ |
73821-70A11-5ES |
— | ||
|
14
|
14
73831-70A01-5ES CAP,INSTPNL,NO.2,LUnited Kingdom |
73831-70A01-5ES |
US $13.92 |
||
|
15
|
15
73815-70A00-000 BRACKET,CTRUnited Kingdom:INJ,TYPE 1:CARB |
73815-70A00-000 |
US $7.14 |
||
|
16
|
16
02142-06123-000
Screw
United Kingdom:INJ,TYPE 1:CARB |
02142-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0612B-000 SCREWUnited Kingdom:INJ,TYPE 1:CARB |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
02142-0612A-000 SCREWUnited Kingdom:INJ,TYPE 1:CARB |
02142-0612A-000 |
from US $0.80 |
||
|
16
|
16
02142-06165-000
Screw
TYPE 3:INJ |
02142-06165-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0616A-000 SCREWTYPE 3:INJ |
02142-0616A-000 |
from US $0.76 |
||
|
16
|
16
03241-06126-000
New Genuine Part
United Kingdom:INJ,TYPE 1:CARB |
03241-06126-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0612A-000 SCREWUnited Kingdom:INJ,TYPE 1:CARB |
03241-0612A-000 |
US $0.80 |
||
|
17
|
17
73813-83000-5ES COVER,INSTPNL,LOWER |
73813-83000-5ES |
US $19.76 |
||
|
17
|
17
73813-83010-5ES
COVER,INSTPNL,LOWER
|
73813-83010-5ES |
— | ||
|
17
|
17
73813-A8101-000
Brown lower cover
|
73813-A8101-000 |
— | ||
|
18
|
18
03141-06125-000
New Genuine Part
|
03141-06125-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
19
|
19
03241-05165-000
Screw
|
03241-05165-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
20
|
20
09148-A0501-300
Vitre
|
09148-A0501-300 |
— | ||
|
21
|
21
77811-83060-D56
Glove box anagram
|
77811-83060-D56 |
— | ||
|
22
|
22
73825-70A00-000
STAY,INSTRUMENT CENTER
|
73825-70A00-000 |
— | ||
|
23
|
23
03241-05105-000
Screw
|
03241-05105-000 |
— | ||
| replacements | |||||
|
23
|
23
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
23
|
23
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
24
|
24
73415-70A00-000 PAD |
73415-70A00-000 |
from US $1.60 |
||
|
25
|
25
04008-00000-000
Nut
NOT SHOWN |
04008-00000-000 |
— | ||
