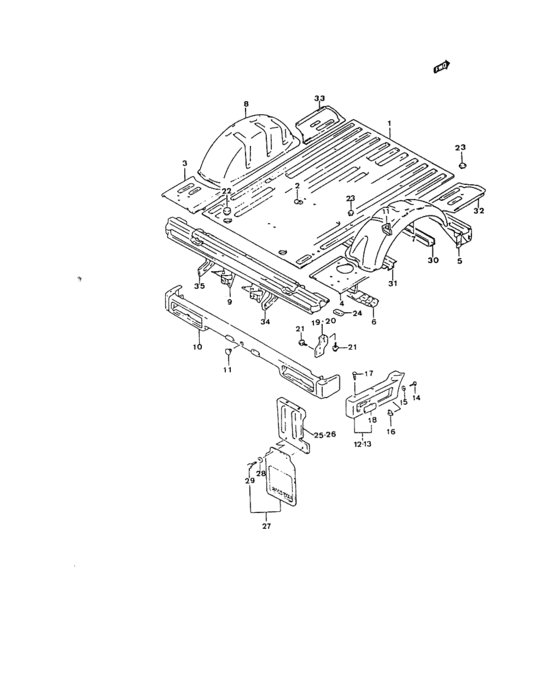

Floor. l. body (FLOOR. L. BODY) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62111-A8321-000
Rear floor panel
|
62111-A8321-000 |
— | ||
|
2
|
2
73722-63001-000 HOOK,RR |
73722-63001-000 |
US $9.64 |
||
|
3
|
3
62150-83200-000
Rear side panel,l/h
|
62150-83200-000 |
— | ||
|
4
|
4
62140-A8329-000
Panel, side rear rh
|
62140-A8329-000 |
— | ||
|
5
|
5
62160-83210-000 REINFORCEMENT,RR FL NO.1 |
62160-83210-000 |
US $56.67 |
||
|
6
|
6
62180-83211-000
REINFORCEMENT,RR FL NO.3
|
62180-83211-000 |
— | ||
|
7
|
7
62211-70A00-000 PANEL,RR WHEEL HSG,R |
62211-70A00-000 |
US $112.80 |
||
|
8
|
8
62311-70A00-000 PANEL,RR WHEEL HSG,L |
62311-70A00-000 |
US $112.80 |
||
|
9
|
9
62500-80310-000
MEMBER ASSY,RR FL TAIL
H 109623-D.120418 |
62500-80310-000 |
— | ||
|
9
|
9
62500-A8031-000
Rear crossmember
D 109624-H.120417 |
62500-A8031-000 |
— | ||
|
11
|
11
62212-T8008-000
Bracket assy
|
62212-T8008-000 |
— | ||
|
12
|
12
71830-74A20-000
Rear protector,r/h
TYPE 3 |
71830-74A20-000 |
— | ||
|
12
|
12
71831-A8331-000
Rear protector,r/h
TYPE 1,TYPE 2 |
71831-A8331-000 |
— | ||
|
13
|
13
71832-A8331-000
Rear protector,l/h
TYPE 1,TYPE 2 |
71832-A8331-000 |
— | ||
|
13
|
13
71840-74A20-000
Rear protector,l/h
TYPE 3 |
71840-74A20-000 |
— | ||
|
14
|
14
09132-05029-000 SCREW(5X16) |
09132-05029-000 |
US $12.50 |
||
|
15
|
15
08322-21053-000 Washer |
08322-21053-000 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
15
|
15
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
16
|
16
09148-A0501-300
Vitre
|
09148-A0501-300 |
— | ||
|
17
|
17
09409-A0731-700
Trim clip
|
09409-A0731-700 |
— | ||
|
18
|
18
71833-70A10-000 CAP,BUMPER CORNER PROTECTORTYPE 3 |
71833-70A10-000 |
US $5.52 |
||
|
19
|
19
71821-80300-000
ブラケット,リヤバンパサイド,ライト
|
71821-80300-000 |
— | ||
| replacement | |||||
|
19
|
19
71821-80301-000 BRACKET,RR BUMPER SIDE,R |
71821-80301-000 |
US $11.52 |
||
|
20
|
20
71822-80300-000
ブラケット,リヤバンパサイド,レフト
|
71822-80300-000 |
— | ||
| replacement | |||||
|
20
|
20
71822-80301-000 BRACKET,RR BUMPER SIDE,L |
71822-80301-000 |
US $5.26 |
||
|
21
|
21
01514-06123-000
Vis
|
01514-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.82 |
||
|
23
|
23
09409-09303-000 CAP |
09409-09303-000 |
US $8.50 |
||
|
24
|
24
72676-80000-000
Gasket
|
72676-80000-000 |
— | ||
|
25
|
25
62143-83290-000
Skirt bracket,r/h
|
62143-83290-000 |
— | ||
|
26
|
26
62153-83290-000
Skirt bracket,l/h
|
62153-83290-000 |
— | ||
|
27
|
27
50053-00000-000
Rear skirts
France |
50053-00000-000 |
— | ||
|
27
|
27
72261-A0000-200
Rear skirts
|
72261-A0000-200 |
— | ||
|
28
|
28
01104-06126-000
Bolt
|
01104-06126-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
29
|
29
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
29
|
29
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
30
|
30
51490-00000-000
Interm.reinforc.assy
|
51490-00000-000 |
— | ||
|
31
|
31
51487-00000-000
Belt anchor reinf.a/
|
51487-00000-000 |
— | ||
|
32
|
32
62121-80301-000
Front side panel,r/h
|
62121-80301-000 |
— | ||
|
33
|
33
62131-80301-000
Front side panel,l/h
|
62131-80301-000 |
— | ||
|
34
|
34
71824-A8330-000
Intermed.bracket,r/h
|
71824-A8330-000 |
— | ||
|
35
|
35
71825-A8330-000
Intermed.bracket,l/h
|
71825-A8330-000 |
— | ||
