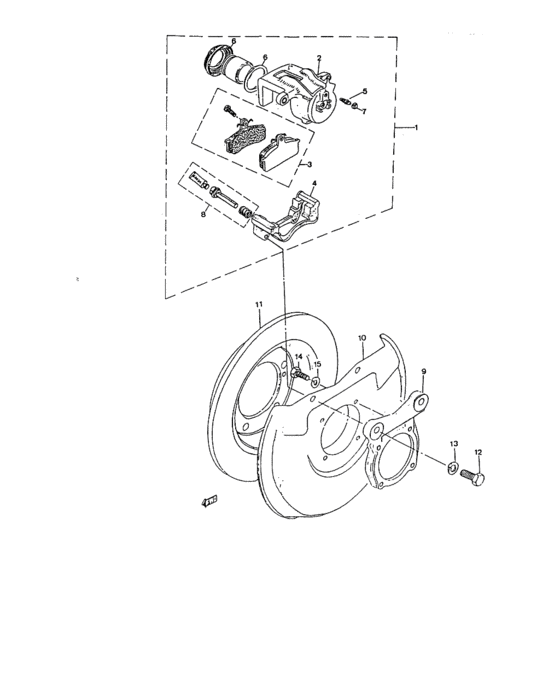

Fr. brake. no/abe (FR. BRAKE. NO/ABE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-C8001-000
Front caliper assy
D 107266 |
55100-C8001-000 |
— | ||
|
2
|
2
00000-A0103-800
Body assy, r/h, l/h
|
00000-A0103-800 |
— | ||
|
3
|
3
00000-A0090-600
Pads kit
D 107266 |
00000-A0090-600 |
— | ||
|
4
|
4
00000-A0090-500
Bracket assy, r/h, l/h
|
00000-A0090-500 |
— | ||
|
5
|
5
00000-A0023-600
Bleed screw
|
00000-A0023-600 |
— | ||
|
6
|
6
00000-A0071-800
Repair kit
|
00000-A0071-800 |
— | ||
|
7
|
7
00000-A0029-100
Plug
|
00000-A0029-100 |
— | ||
|
8
|
8
00000-A0090-200
Brake shoes set
|
00000-A0090-200 |
— | ||
|
9
|
9
55311-80060-000
Brake bracket
|
55311-80060-000 |
— | ||
|
10
|
10
55221-80000-000 DUST COVER,BRAKE DISC |
55221-80000-000 |
US $84 |
||
|
11
|
11
55211-60A00-000
ディスク,フロントブレーキ
D 107266 |
55211-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
55211-60A01-000 DISC,FR BRAKED 107266 |
55211-60A01-000 |
US $132.80 |
||
|
12
|
12
09100-A1211-100
Vis
|
09100-A1211-100 |
— | ||
|
13
|
13
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
14
|
14
09100-10023-000 BOLT(10X40.5) |
09100-10023-000 |
US $1.92 |
||
|
15
|
15
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
