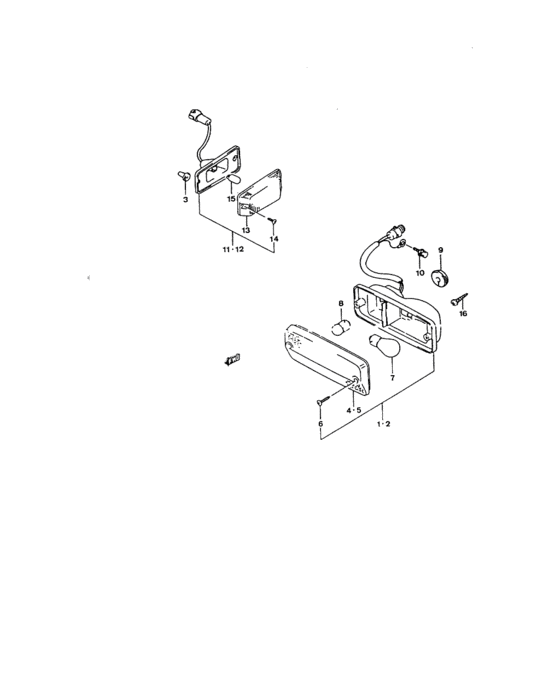

Front light (FRONT LIGHT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-A8003-200
Fr.flasher assy,r/h
H 72080-CARB |
35601-A8003-200 |
— | ||
|
1
|
1
35601-C8003-200
Ens clignotant cd
D 72081-CARB |
35601-C8003-200 |
— | ||
|
1
|
1
35601-D8003-200
Fr.flasher assy,r/h
TYPE 2,INJ,TYPE 3 |
35601-D8003-200 |
— | ||
|
2
|
2
35602-A8003-200
Lampe gauche
H 72080-CARB |
35602-A8003-200 |
— | ||
|
2
|
2
35602-C8003-200
Ens clignotant cg
D 72081-CARB |
35602-C8003-200 |
— | ||
|
2
|
2
35602-D8003-200
Fr.flasher assy,l/h
TYPE 2:INJ,TYPE 3 |
35602-D8003-200 |
— | ||
|
3
|
3
09159-B0400-200
Bague
|
09159-B0400-200 |
— | ||
|
4
|
4
00000-A0009-800
Plastiquecd
|
00000-A0009-800 |
— | ||
|
5
|
5
00000-A0009-700
Plastique cg
|
00000-A0009-700 |
— | ||
|
6
|
6
00000-A0009-900
Screw
|
00000-A0009-900 |
— | ||
|
7
|
7
00000-A0010-100
Lampe 12v 21w
|
00000-A0010-100 |
— | ||
|
8
|
8
00000-A0010-200
Lampe 12v 5w
|
00000-A0010-200 |
— | ||
|
9
|
9
09308-08007-000 GROMMET |
09308-08007-000 |
US $1.76 |
||
|
10
|
10
09115-06001-000
Bolt, lh
TYPE 2:INJ,TYPE 3 |
09115-06001-000 |
— | ||
| replacement | |||||
|
10
|
10
09115-06005-000 BOLT(6X16)TYPE 2:INJ,TYPE 3 |
09115-06005-000 |
US $1.28 |
||
|
11
|
11
36410-A70A0-000
Clignotent cd
TYPE 1,CARB |
36410-A70A0-000 |
— | ||
|
11
|
11
36410-C70A0-000
Flasher, l/h
TYPE 2,CARB |
36410-C70A0-000 |
— | ||
|
11
|
11
36410-D70A0-000
Flasher, l/h
TYPE 2:INJ,TYPE 3 |
36410-D70A0-000 |
— | ||
|
12
|
12
36410-C70A0-000
Flasher, l/h
TYPE 2,CARB |
36410-C70A0-000 |
— | ||
|
12
|
12
36410-D70A0-000
Flasher, l/h
TYPE 2:INJ,TYPE 3 |
36410-D70A0-000 |
— | ||
|
12
|
12
36430-A70A0-000
Clignotent cg
TYPE 1,CARB |
36430-A70A0-000 |
— | ||
|
13
|
13
36412-78400-000
LENS,SIDE TURN SIG LAMP
|
36412-78400-000 |
— | ||
|
14
|
14
03112-04169-000
スクリュ
|
03112-04169-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
15
|
15
00000-A0014-800
Bulb
|
00000-A0014-800 |
— | ||
|
16
|
16
03111-05126-000
New Genuine Part
TYPE 1,TYPE 2:CARB |
03111-05126-000 |
— | ||
| replacement | |||||
|
16
|
16
03111-0512A-000 SCREWTYPE 1,TYPE 2:CARB |
03111-0512A-000 |
from US $0.80 |
||
|
16
|
16
08322-21056-000
Washer
TYPE 1,TYPE 2:CARB |
08322-21056-000 |
— | ||
| replacements | |||||
|
16
|
16
08322-0105B-000 WASHERTYPE 1,TYPE 2:CARB |
08322-0105B-000 |
from US $0.76 |
||
|
16
|
16
08322-0105A-000 WASHERWasher, front TYPE 1,TYPE 2:CARB |
08322-0105A-000 |
from US $0.80 |
||
