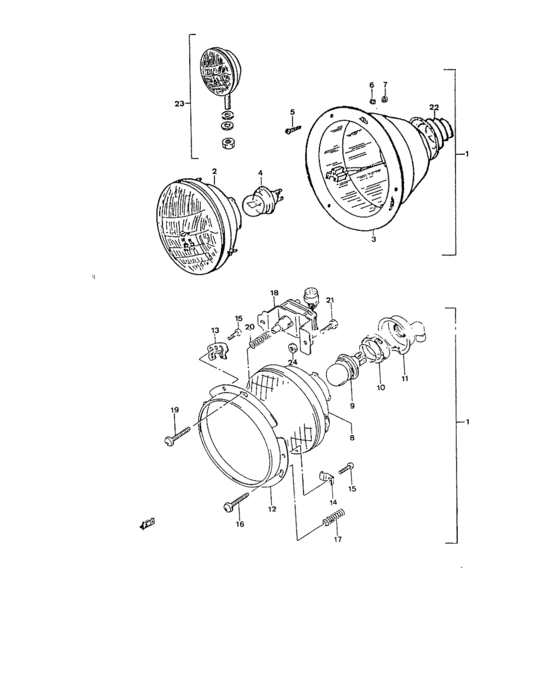

Headlight (HEADLIGHT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
00000-A0091-300
Elec.regul.light kit
Germany,'J' |
00000-A0091-300 |
— | ||
|
1
|
1
35100-70A20-000
Main light
Germany |
35100-70A20-000 |
— | ||
|
1
|
1
35100-B7900-000
Head lamp assy
|
35100-B7900-000 |
— | ||
|
1
|
1
35100-D7901-000
Main light
United Kingdom |
35100-D7901-000 |
— | ||
|
1
|
1
35191-00000-000
04francia
France |
35191-00000-000 |
— | ||
|
2
|
2
00000-A0009-200
Optic block
|
00000-A0009-200 |
— | ||
|
3
|
3
00000-A0048-400
Logement
|
00000-A0048-400 |
— | ||
|
4
|
4
00000-A0009-600
Lampe 12 v 45 / 40w
|
00000-A0009-600 |
— | ||
|
4
|
4
00000-A0024-300
Yellow lamp
|
00000-A0024-300 |
— | ||
|
5
|
5
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
5
|
5
02112-05256-000
Screw
United Kingdom |
02112-05256-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0525A-000 SCREWUnited Kingdom |
02112-0525A-000 |
from US $0.80 |
||
|
6
|
6
08321-A3105-600
Washer
|
08321-A3105-600 |
— | ||
|
7
|
7
08310-11056-000
Nut
|
08310-11056-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
8
|
8
39121-72600-000
Optic block
Germany |
39121-72600-000 |
— | ||
|
9
|
9
09471-12048-000 BULB(12V45/40W)Bulb (12v,45/40w) Germany |
09471-12048-000 |
US $182.20 |
||
|
10
|
10
35136-34670-000
SETTER,BULB
Germany |
35136-34670-000 |
— | ||
|
11
|
11
35179-72600-000
COVER,HEADLAMP BULB
Germany |
35179-72600-000 |
— | ||
|
12
|
12
35131-64031-000 RIM,HEADLAMPGermany |
35131-64031-000 |
from US $19.46 |
||
|
13
|
13
35132-72600-000 PLATE,NO.2Germany |
35132-72600-000 |
US $1.60 |
||
|
14
|
14
35136-72600-000 PLATE,NO.3Germany |
35136-72600-000 |
US $1.60 |
||
|
15
|
15
02112-04087-000 SCREWGermany |
02112-04087-000 |
from US $0.80 |
||
|
16
|
16
35131-78020-000
Rim
Germany |
35131-78020-000 |
— | ||
|
17
|
17
35154-77000-000
Spring
Germany |
35154-77000-000 |
— | ||
| replacement | |||||
|
17
|
17
35154-80C01-000 SPRING,HEADLAMPGermany |
35154-80C01-000 |
US $4.16 |
||
|
18
|
18
38190-70A00-000
Light reg.unit assy
Germany |
38190-70A00-000 |
— | ||
|
19
|
19
35151-70A20-000
Screw
Germany |
35151-70A20-000 |
— | ||
| replacement | |||||
|
19
|
19
09122-45001-000 SCREW(5X45)Germany |
09122-45001-000 |
US $2.24 |
||
|
20
|
20
35154-77000-000
Spring
Germany |
35154-77000-000 |
— | ||
| replacement | |||||
|
20
|
20
35154-80C01-000 SPRING,HEADLAMPGermany |
35154-80C01-000 |
US $4.16 |
||
|
21
|
21
01804-06123-000
Screw
Germany |
01804-06123-000 |
— | ||
|
22
|
22
00000-A0048-500
Enjoliveur caoutc.
|
00000-A0048-500 |
— | ||
|
22
|
22
35100-C7901-000
Boot
United Kingdom |
35100-C7901-000 |
— | ||
|
23
|
23
00000-A0101-000
Antifog headlight
'LANDERO' |
00000-A0101-000 |
— | ||
|
24
|
24
08316-A2606-300
Nut
Germany |
08316-A2606-300 |
— | ||
