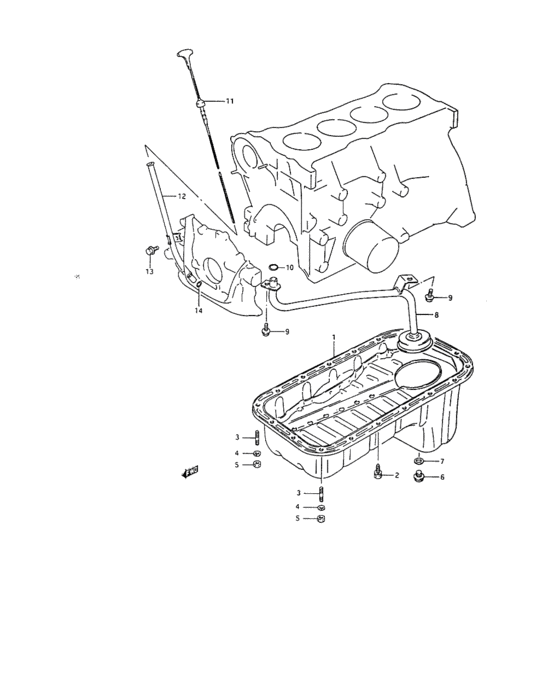

Oil pan (OIL PAN) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-83003-000
パン,オイル
|
11510-83003-000 |
— | ||
| replacement | |||||
|
1
|
1
11510-83004-000 PAN,OIL |
11510-83004-000 |
US $187.20 |
||
|
2
|
2
09100-A0611-600
Screw
|
09100-A0611-600 |
— | ||
|
2
|
2
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
3
|
3
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
4
|
4
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
5
|
5
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09247-A1402-700
Drain plug
|
09247-A1402-700 |
— | ||
|
7
|
7
09168-A1401-200
Joint
|
09168-A1401-200 |
— | ||
|
8
|
8
16520-83002-000
Strainer, oil pump
|
16520-83002-000 |
— | ||
| replacement | |||||
|
8
|
8
16520-83003-000 STRAINER,OIL PUMP |
16520-83003-000 |
US $110.21 |
||
|
9
|
9
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
09280-14009-000
O ring
|
09280-14009-000 |
— | ||
| replacement | |||||
|
10
|
10
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
11
|
11
16910-83000-000
Triangle
TYPE 1 |
16910-83000-000 |
— | ||
| replacement | |||||
|
11
|
11
16910-60A01-000 GAUGE,OIL LEVELTYPE 1 |
16910-60A01-000 |
from US $12.38 |
||
|
12
|
12
16930-82001-000 GUIDE,OIL LEVEL GAUGE |
16930-82001-000 |
US $13.28 |
||
|
13
|
13
01537-06103-000
Bolt
|
01537-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
13
|
13
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
09280-10015-000 O RING(D:1.9,ID:9.8)O ring, oil gallery |
09280-10015-000 |
from US $4.41 |
||
| replacement | |||||
|
14
|
14
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.44 |
||
