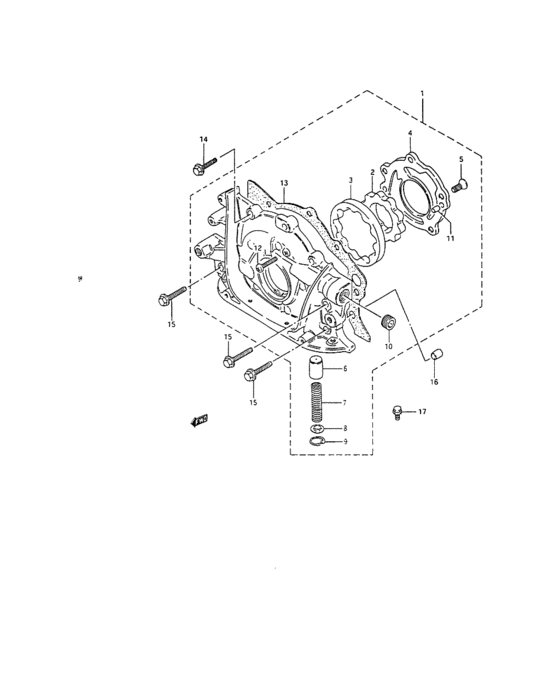

Oil pump (OIL PUMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-82825-000
Oil pump assy
TYPE 1 |
16100-82825-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-82844-000 PUMP SET,OILTYPE 1 |
16100-82844-000 |
US $285.20 |
||
|
1
|
1
16100-A8260-200
Pump assy, oil
TYPE 2,TYPE 3 |
16100-A8260-200 |
— | ||
|
2
|
2
16131-82600-000
Engrenage
|
16131-82600-000 |
— | ||
| replacement | |||||
|
2
|
2
16130-82600-000 ROTOR SET,OIL PUMP |
16130-82600-000 |
US $76.91 |
||
|
3
|
3
16132-82600-000
Engrenage
|
16132-82600-000 |
— | ||
|
4
|
4
16161-82601-000
Gear plate
TYPE 1 |
16161-82601-000 |
— | ||
|
4
|
4
16161-A8260-000
Plate
TYPE 2,TYPE 3 |
16161-A8260-000 |
— | ||
|
5
|
5
02122-06148-000
Screw
|
02122-06148-000 |
— | ||
| replacement | |||||
|
5
|
5
09126-06007-000 SCREW(6X14)Bolt |
09126-06007-000 |
from US $3.21 |
||
|
6
|
6
16151-78100-000
バルブ,リリーフ
TYPE 1 |
16151-78100-000 |
— | ||
| replacement | |||||
|
6
|
6
16150-78100-000 VALVE SET,OIL PUMP RELIEFTYPE 1 |
16150-78100-000 |
US $11.81 |
||
|
6
|
6
16151-A7810-000
Valve,oil pump relief
TYPE 2,TYPE 3 |
16151-A7810-000 |
— | ||
|
7
|
7
16152-78100-000
スプリング,リリーフバルブ
TYPE 1 |
16152-78100-000 |
— | ||
| replacement | |||||
|
7
|
7
16150-78100-000 VALVE SET,OIL PUMP RELIEFTYPE 1 |
16150-78100-000 |
US $11.81 |
||
|
7
|
7
16152-A7810-000
Spring
TYPE 2,TYPE 3 |
16152-A7810-000 |
— | ||
|
8
|
8
16153-78100-000
リテーナ,スプリング
TYPE 1 |
16153-78100-000 |
— | ||
|
8
|
8
16153-A7810-000
Spring
TYPE 2,TYPE 3 |
16153-A7810-000 |
— | ||
|
9
|
9
08331-41159-000
New Genuine Part
|
08331-41159-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-4115A-000 CIRCLIP |
08331-4115A-000 |
US $1.60 |
||
|
10
|
10
09246-08002-000 PLUGTYPE 2,TYPE 3 |
09246-08002-000 |
US $1.76 |
||
|
10
|
10
16171-78100-000
Bouchon
TYPE 1 |
16171-78100-000 |
— | ||
| replacement | |||||
|
10
|
10
09246-08002-000 PLUGTYPE 1 |
09246-08002-000 |
US $1.76 |
||
|
11
|
11
16173-78100-000
PIN,OIL PUMP GEAR PLATE
TYPE 1 |
16173-78100-000 |
— | ||
|
11
|
11
16173-A7810-000
Pin, oil pump
TYPE 2,TYPE 3 |
16173-A7810-000 |
— | ||
|
12
|
12
02112-06253-000
Screw
|
02112-06253-000 |
— | ||
| replacements | |||||
|
12
|
12
02112-0625B-000 SCREW |
02112-0625B-000 |
US $0.80 |
||
|
12
|
12
02112-0625A-000 SCREW |
02112-0625A-000 |
from US $0.80 |
||
|
13
|
13
16119-A8201-100
Oil pump hous.gasket
|
16119-A8201-100 |
— | ||
|
14
|
14
01517-08256-000
Bolt
|
01517-08256-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
14
|
14
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
15
|
15
01517-06353-000
ボルト
|
01517-06353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
15
|
15
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
16
|
16
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
|
17
|
17
16174-A8200-100
Screw
TYPE 2,TYPE 3 |
16174-A8200-100 |
— | ||
