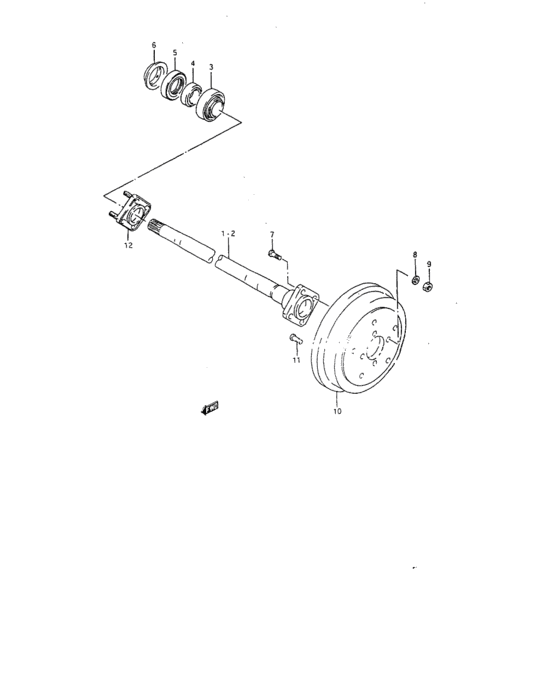

Rear axle shaft (REAR AXLE SHAFT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44210-83301-000
Shaft, rear axle rh
|
44210-83301-000 |
— | ||
| replacement | |||||
|
1
|
1
44210-70AV0-000 SHAFT ASSY,REAR AXLE,R |
44210-70AV0-000 |
US $182.16 |
||
|
2
|
2
44220-83301-000
Shaft, rear axle lh
|
44220-83301-000 |
— | ||
| replacement | |||||
|
2
|
2
44220-70AV0-000 SHAFT ASSY,REAR AXLE,L |
44220-70AV0-000 |
US $202.40 |
||
|
3
|
3
09269-35009-000 BEARING(35X72X22) |
09269-35009-000 |
from US $37.60 |
||
|
4
|
4
43485-73000-000 RING,RR WHEEL BRG RETAINER |
43485-73000-000 |
from US $8.51 |
||
|
5
|
5
09283-46007-000
Seal
|
09283-46007-000 |
— | ||
|
6
|
6
43580-73000-000
Seal protector
|
43580-73000-000 |
— | ||
|
7
|
7
09119-A1200-700
Rear hub screw
|
09119-A1200-700 |
— | ||
|
8
|
8
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
9
|
9
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
43511-A8300-300
Brake drum
|
43511-A8300-300 |
— | ||
|
11
|
11
09119-A1200-700
Rear hub screw
|
09119-A1200-700 |
— | ||
|
12
|
12
53001-B8304-000
Plaque retention
|
53001-B8304-000 |
— | ||
|
13
|
13
44211-80000-000
Clamp
|
44211-80000-000 |
— | ||
