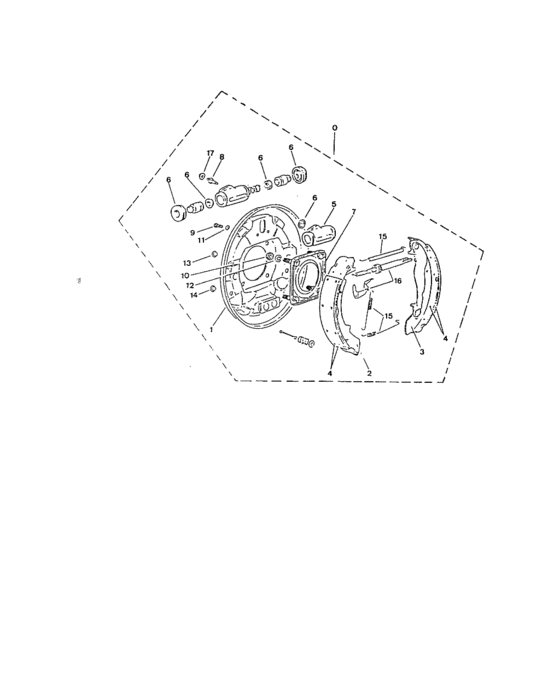

Rear brake (REAR BRAKE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
53002-A70A0-000
Ens. frein cg
W/ABESTOS |
53002-A70A0-000 |
— | ||
|
|
53002-D70A0-000
Brake assy l/h
N/ABESTOS |
53002-D70A0-000 |
— | ||
|
|
53001-A70A0-000
Ens frein cd
H 107265 W/ABESTOS |
53001-A70A0-000 |
— | ||
|
|
53001-D70A0-000
Brake assy r/h
N/ABESTOS |
53001-D70A0-000 |
— | ||
|
1
|
1
00000-A0033-100
Conducted conn. rod
|
00000-A0033-100 |
— | ||
|
1
|
1
00000-A0053-200
Plateau frein cd
|
00000-A0053-200 |
— | ||
|
2
|
2
00000-A0053-400
Machoire cg
W/ABESTOS |
00000-A0053-400 |
— | ||
|
3
|
3
00000-A0053-500
Machoiere cd
W/ABESTOS |
00000-A0053-500 |
— | ||
|
4
|
4
00000-A0015-700
Jeu guarniture
W/ABESTOS |
00000-A0015-700 |
— | ||
|
5
|
5
00000-A0052-900
Cylindre roue
|
00000-A0052-900 |
— | ||
|
6
|
6
00000-A0016-000
Necessarie reparat.
|
00000-A0016-000 |
— | ||
|
7
|
7
53001-B8304-000
Plaque retention
|
53001-B8304-000 |
— | ||
|
8
|
8
00000-A0023-600
Bleed screw
|
00000-A0023-600 |
— | ||
|
9
|
9
00000-A0023-700
Screw
|
00000-A0023-700 |
— | ||
|
10
|
10
04004-00000-000
Nut
|
04004-00000-000 |
— | ||
|
11
|
11
00000-A0023-900
Spring washer
|
00000-A0023-900 |
— | ||
|
12
|
12
08321-D5108-600
Washer
|
08321-D5108-600 |
— | ||
|
13
|
13
00000-A0023-400
Plug
|
00000-A0023-400 |
— | ||
|
14
|
14
00000-A0023-500
Inspeccion plug
|
00000-A0023-500 |
— | ||
|
15
|
15
00000-A0015-800
Jeu ressort
W/ABESTOS |
00000-A0015-800 |
— | ||
|
16
|
16
00000-A0024-100
Jeu repar frein cg
W/ABESTOS |
00000-A0024-100 |
— | ||
|
16
|
16
00000-A0024-200
Jeu repar frein cd
W/ABESTOS |
00000-A0024-200 |
— | ||
|
16
|
16
00000-A0090-000
Br.adjuster assy,r/h
N/ABESTOS |
00000-A0090-000 |
— | ||
|
16
|
16
00000-A0090-100
Br.adjuster assy,l/h
N/ABESTOS |
00000-A0090-100 |
— | ||
|
17
|
17
00000-A0029-100
Plug
|
00000-A0029-100 |
— | ||
|
18
|
18
00000-A0090-200
Brake shoes set
N/ABESTOS |
00000-A0090-200 |
— |
