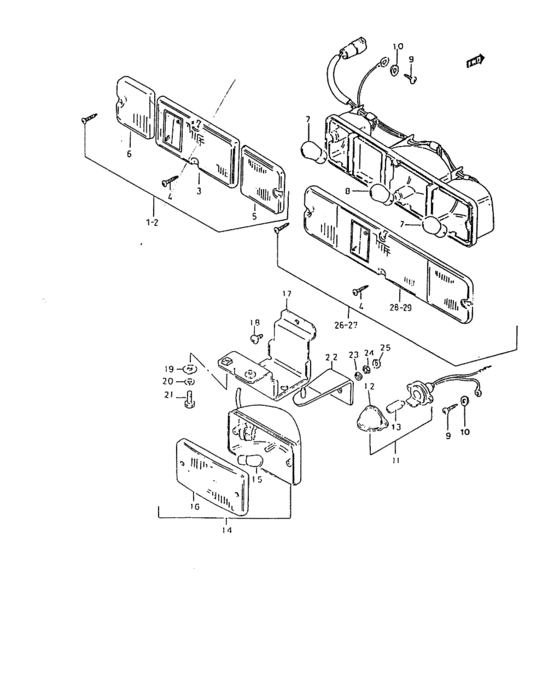

Rear light (REAR LIGHT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-S8001-200
Rear flasher,r/h
H 72.080 |
35603-S8001-200 |
— | ||
|
1
|
1
35605-B8003-200
Rear flasher,r/h
D 72.081-H.79.994 |
35605-B8003-200 |
— | ||
|
2
|
2
35604-S8001-200
Rear flasher,l/h
H 72.000 |
35604-S8001-200 |
— | ||
|
2
|
2
35604-B8003-200
Rear flasher,l/h
D 72.081-H.79.994 |
35604-B8003-200 |
— | ||
|
3
|
3
00000-A0010-300
Plastique rouge gauche
H 79.994 |
00000-A0010-300 |
— | ||
|
3
|
3
00000-A0010-500
Plastique rouge droit
H 79.994 |
00000-A0010-500 |
— | ||
|
4
|
4
00000-A0009-900
Screw
|
00000-A0009-900 |
— | ||
|
5
|
5
00000-A0010-600
Plastique
H 79.994 |
00000-A0010-600 |
— | ||
|
6
|
6
00000-A0010-700
Plastique
H 79.994 |
00000-A0010-700 |
— | ||
|
7
|
7
00000-A0010-100
Lampe 12v 21w
|
00000-A0010-100 |
— | ||
|
8
|
8
00000-A0010-900
Lampe 12 v.
|
00000-A0010-900 |
— | ||
|
9
|
9
03111-05126-000
New Genuine Part
TYPE 1,TYPE 2:CARB |
03111-05126-000 |
— | ||
| replacement | |||||
|
9
|
9
03111-0512A-000 SCREWTYPE 1,TYPE 2:CARB |
03111-0512A-000 |
from US $0.80 |
||
|
9
|
9
09139-05028-000 SCREW(5X14)TYPE 2:INJ,TYPE 3 |
09139-05028-000 |
US $11.40 |
||
|
10
|
10
08322-21056-000
Washer
TYPE 1,TYPE 2:CARB |
08322-21056-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0105B-000 WASHERTYPE 1,TYPE 2:CARB |
08322-0105B-000 |
from US $0.76 |
||
|
10
|
10
08322-0105A-000 WASHERWasher, front TYPE 1,TYPE 2:CARB |
08322-0105A-000 |
from US $0.80 |
||
|
11
|
11
35910-B8001-100
Lampe immatricul.
|
35910-B8001-100 |
— | ||
|
11
|
11
35910-C8001-100
License light
TYPE 2:INJ,TYPE 3 |
35910-C8001-100 |
— | ||
|
12
|
12
00000-A0014-900
Plastic
|
00000-A0014-900 |
— | ||
|
13
|
13
00000-A0014-800
Bulb
|
00000-A0014-800 |
— | ||
|
14
|
14
36570-A7900-000
Lampe brouillard
H 79.994 |
36570-A7900-000 |
— | ||
|
15
|
15
00000-A0010-100
Lampe 12v 21w
H 79.994 |
00000-A0010-100 |
— | ||
|
16
|
16
00000-A0011-000
Plastique
H 79.994 |
00000-A0011-000 |
— | ||
|
17
|
17
36580-80001-000
Bracket,fr fog lamp
H 79.994 |
36580-80001-000 |
— | ||
|
18
|
18
01104-06166-000
Bolt
H 79.994 |
01104-06166-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-06167-000 BOLTBolt, fuel cooler H 79.994 |
01500-06167-000 |
from US $0.76 |
||
|
19
|
19
09160-06016-000
Washer (6x16x1.2)
H 79.994 |
09160-06016-000 |
— | ||
| replacement | |||||
|
19
|
19
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) H 79.994 |
09160-06019-000 |
from US $0.76 |
||
|
20
|
20
08321-A5106-600
Washer
H 79.994 |
08321-A5106-600 |
— | ||
|
21
|
21
03141-06126-000
スクリュ
H 79.994 |
03141-06126-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0612A-000 SCREWH 79.994 |
03141-0612A-000 |
US $0.76 |
||
|
22
|
22
36570-C7900-000
Light bracket
H 79.994 |
36570-C7900-000 |
— | ||
|
23
|
23
08310-11086-000
Nut
H 79.994 |
08310-11086-000 |
— | ||
| replacement | |||||
|
23
|
23
08310-00087-000 NUTH 79.994 |
08310-00087-000 |
from US $0.76 |
||
|
24
|
24
02005-00000-000
Washer
H 79.994 |
02005-00000-000 |
— | ||
|
25
|
25
02007-00000-000
Washer
H 79.994 |
02007-00000-000 |
— | ||
|
26
|
26
35243-00000-000
Clihnotant cd
D 79.995-CARB |
35243-00000-000 |
— | ||
|
26
|
26
35246-00000-000
Rear light assy,r/h
TYPE 1,TYPE 2:United Kingdom |
35246-00000-000 |
— | ||
|
26
|
26
35603-84C00-000
Rear light assy,r/h
TYPE 3,United Kingdom |
35603-84C00-000 |
— | ||
|
26
|
26
35603-A8001-300
Rear light assy,r/h
TYPE 2:INJ,TYPE 3 |
35603-A8001-300 |
— | ||
|
27
|
27
35244-00000-000
Clihnotant lh
D 79.995-CARB |
35244-00000-000 |
— | ||
|
27
|
27
35245-00000-000
Rear light assy,l/h
TYPE 1,TYPE 2:United Kingdom |
35245-00000-000 |
— | ||
|
27
|
27
35604-84C00-000
Rear light assy,l/h
TYPE 2:United Kingdom |
35604-84C00-000 |
— | ||
|
27
|
27
35604-A8001-300
Rear light assy,l/h
TYPE 2:INJ,TYPE 3 |
35604-A8001-300 |
— | ||
|
28
|
28
00000-A0069-400
Plastic cd
D 79.995 |
00000-A0069-400 |
— | ||
|
29
|
29
00000-A0069-500
Plastic cg
D 79.995 |
00000-A0069-500 |
— | ||
|
29
|
29
09407-A2340-100
Clamp
NOT SHOWN |
09407-A2340-100 |
— | ||
