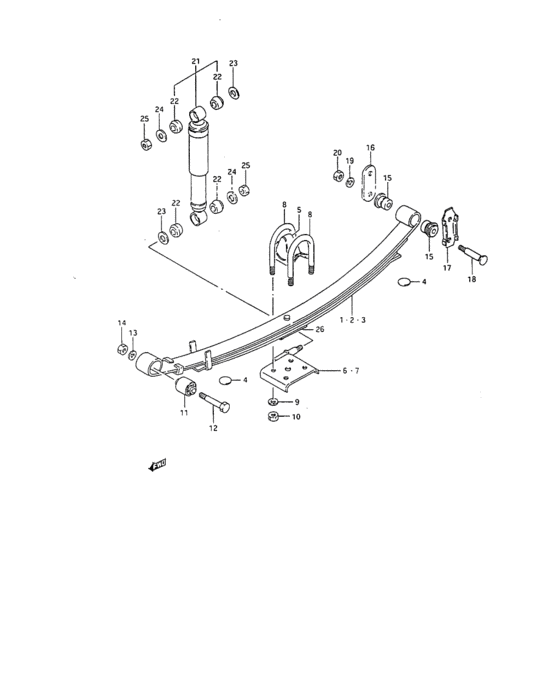

Rr. suspension (RR. SUSPENSION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-70A10-000
Lame ressort ar
LHD |
41310-70A10-000 |
— | ||
| replacement | |||||
|
1
|
1
41310-70A11-000 SPRING ASSY,REARLHD |
41310-70A11-000 |
US $415.36 |
||
|
2
|
2
41310-70A10-000
Lame ressort ar
United Kingdom |
41310-70A10-000 |
— | ||
| replacement | |||||
|
2
|
2
41310-70A11-000 SPRING ASSY,REARUnited Kingdom |
41310-70A11-000 |
US $415.36 |
||
|
3
|
3
41310-70A20-000
Spring assy, rear lh
United Kingdom |
41310-70A20-000 |
— | ||
| replacement | |||||
|
3
|
3
41310-70A30-000
Spring assy,rear
United Kingdom |
41310-70A30-000 |
— | ||
|
4
|
4
41118-70A00-000
サイレンサ,スプリング
|
41118-70A00-000 |
— | ||
| replacement | |||||
|
4
|
4
41117-70A10-000 SILENCER,SPRING |
41117-70A10-000 |
US $21.60 |
||
|
5
|
5
42150-A8300-000
Caoutchouc arriere
|
42150-A8300-000 |
— | ||
|
6
|
6
41430-83000-000
Plaque ressort cd
|
41430-83000-000 |
— | ||
| replacement | |||||
|
6
|
6
41240-83001-000 SEAT,FR SPRING,L |
41240-83001-000 |
US $53.20 |
||
|
7
|
7
41440-83000-000 SEAT,REAR SPRING,L |
41440-83000-000 |
US $37.25 |
||
|
8
|
8
41411-A8300-000
Bride arriere
|
41411-A8300-000 |
— | ||
|
9
|
9
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
10
|
10
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
10
|
10
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
11
|
11
08319-12023-000
Bush
|
08319-12023-000 |
— | ||
|
12
|
12
09100-12059-000
ボルト,12X92
|
09100-12059-000 |
— | ||
| replacements | |||||
|
12
|
12
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $2.48 |
||
|
12
|
12
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
13
|
13
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
14
|
14
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
14
|
14
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
15
|
15
09305-15006-000
Spring bush
|
09305-15006-000 |
— | ||
|
16
|
16
41461-83300-000 PLATE,SPRING SHACKLE INNER |
41461-83300-000 |
US $19.20 |
||
|
17
|
17
41462-79000-000
Plate, spring shackle outer
|
41462-79000-000 |
— | ||
| replacement | |||||
|
17
|
17
41462-77300-000 PLATE,OUTER |
41462-77300-000 |
US $12.80 |
||
|
18
|
18
41463-82000-000 PIN,SHACKLE |
41463-82000-000 |
US $6.72 |
||
|
19
|
19
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
20
|
20
08310-11103-000
Rondelle
|
08310-11103-000 |
— | ||
| replacement | |||||
|
20
|
20
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
21
|
21
40950-00000-000
Damper
ALTERN. |
40950-00000-000 |
— | ||
|
21
|
21
41700-B70A0-000
Amortisseur
|
41700-B70A0-000 |
— | ||
|
22
|
22
40025-00000-000
Caoutchouc
|
40025-00000-000 |
— | ||
|
22
|
22
41701-A0000-000
Rubber bush
|
41701-A0000-000 |
— | ||
|
23
|
23
08322-A2116-300
Washer
|
08322-A2116-300 |
— | ||
|
24
|
24
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) |
09160-12073-000 |
from US $0.96 |
||
|
25
|
25
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
25
|
25
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
26
|
26
41116-83000-000
Entretoise
|
41116-83000-000 |
— | ||
|
27
|
27
41318-83010-000
Clamp
NOT SHOWN |
41318-83010-000 |
— | ||
