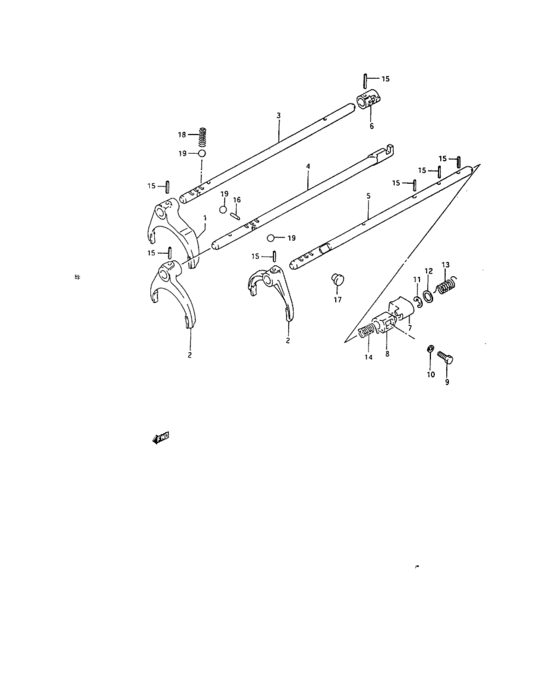

Selecting fork (SELECTING FORK) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-83002-000
Fourchette select
|
25211-83002-000 |
— | ||
| replacement | |||||
|
1
|
1
25211-83003-000 FORK,LOW SPEED GEAR SHIFT |
25211-83003-000 |
US $214.40 |
||
|
2
|
2
25221-83002-000
フォーク,ハイスピードギヤシフト
|
25221-83002-000 |
— | ||
| replacement | |||||
|
2
|
2
25221-83003-000 FORK,HIGH SPEED GEAR SHIFTFork, high speed |
25221-83003-000 |
US $50.93 |
||
|
3
|
3
25411-80401-000
SHAFT,LOW SPEED GEAR SHIFT
|
25411-80401-000 |
— | ||
|
4
|
4
25420-80401-000 SHAFT,HIGH SPEED GEAR SHIFT |
25420-80401-000 |
US $45.26 |
||
|
5
|
5
25451-80421-000
SHAFT,REVERSE GEAR SHIFT
TYPE 1,TYPE 2,Holland,INJ |
25451-80421-000 |
— | ||
|
5
|
5
23451-A0042-100
Reverse yoke shaft
TYPE 3,Switzerland,TYPE 2,INJ |
23451-A0042-100 |
— | ||
|
6
|
6
25241-83001-000 YOKE,LOW SPEED GEAR SHIFT |
25241-83001-000 |
US $49.41 |
||
|
7
|
7
25261-83002-000
ヨーク,フィフスギヤシフト
|
25261-83002-000 |
— | ||
| replacements | |||||
|
7
|
7
25261-83003-000 YOKE,5TH GEAR SHIFT |
25261-83003-000 |
US $28.88 |
||
|
7
|
7
09448-18034-000 SPRING |
09448-18034-000 |
US $14.40 |
||
|
8
|
8
25271-83002-000 YOKE,REV GEAR SHIFT LIM |
25271-83002-000 |
US $28.88 |
||
|
9
|
9
09135-08006-000 BOLT(8X20) |
09135-08006-000 |
US $2.24 |
||
|
10
|
10
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
11
|
11
08332-11106-000
E ring
|
08332-11106-000 |
— | ||
| replacement | |||||
|
11
|
11
08332-1110A-000 E RING |
08332-1110A-000 |
from US $0.96 |
||
|
12
|
12
08212-14201-000 WASHER |
08212-14201-000 |
US $11 |
||
|
13
|
13
09448-18016-000
SPRING
|
09448-18016-000 |
— | ||
| replacement | |||||
|
13
|
13
09448-18034-000 SPRING |
09448-18034-000 |
US $14.40 |
||
|
14
|
14
09448-18017-000 SPRING |
09448-18017-000 |
US $16.20 |
||
|
15
|
15
09205-05012-000 PIN,SPRING(5X25) |
09205-05012-000 |
US $1.22 |
||
|
16
|
16
09261-03017-000 ROLLER(3X12.5) |
09261-03017-000 |
from US $0.91 |
||
|
17
|
17
09250-10006-000 PLUG(OD:16)Plug, oil level gauge hole |
09250-10006-000 |
from US $1.67 |
||
|
18
|
18
25415-83000-000 SPRING,GEAR SHIFT LOCATING |
25415-83000-000 |
US $2.08 |
||
|
19
|
19
06112-12004-000
Ball
|
06112-12004-000 |
— | ||
| replacement | |||||
|
19
|
19
06111-12004-000 BALL |
06111-12004-000 |
from US $1.12 |
||
