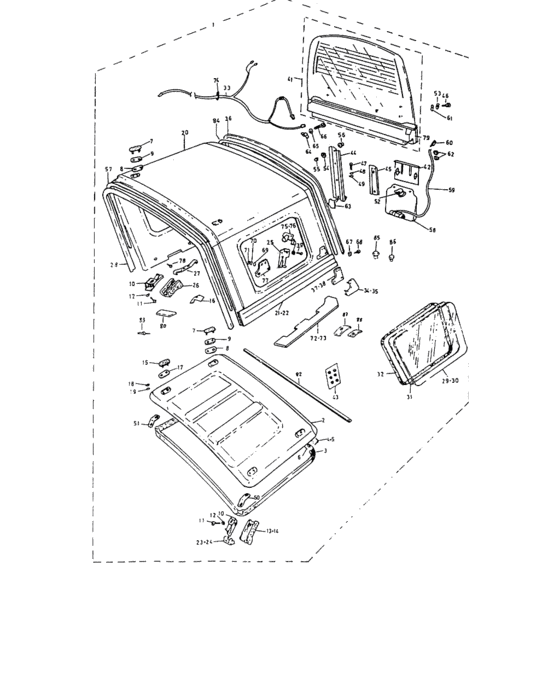

Sh. pol. roof, 4p (SH. POL. ROOF, 4P) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50971-00000-000
Front Roof (White)
|
50971-00000-000 |
— | ||
|
2
|
2
52309-00000-000
Front Roof (Black)
|
52309-00000-000 |
— | ||
|
3
|
3
78339-00000-000
Cautchouc toiut av
|
78339-00000-000 |
— | ||
|
4
|
4
50065-00000-000
Sealing profile, front roof
|
50065-00000-000 |
— | ||
|
5
|
5
50064-00000-000
Sealing molding, drip
|
50064-00000-000 |
— | ||
|
6
|
6
50067-00000-000
Rear rubber, front roof
|
50067-00000-000 |
— | ||
|
7
|
7
78325-00000-000
Outer plate assy, roof
|
78325-00000-000 |
— | ||
|
8
|
8
78328-00000-000
Suppement
|
78328-00000-000 |
— | ||
|
9
|
9
78329-00000-000
Gasket
|
78329-00000-000 |
— | ||
|
10
|
10
78330-00000-000
Fermenture rapide
|
78330-00000-000 |
— | ||
|
11
|
11
02112-04106-000
Screw
|
02112-04106-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-0410A-000 SCREW |
02112-0410A-000 |
from US $2.04 |
||
|
12
|
12
08321-A3104-600
Grower washer
|
08321-A3104-600 |
— | ||
|
13
|
13
78368-00000-000
Couverc fermeture d
|
78368-00000-000 |
— | ||
|
14
|
14
78369-00000-000
Quick lock cover, rh
|
78369-00000-000 |
— | ||
|
15
|
15
78343-00000-000
Front fix. plate assy, roof
|
78343-00000-000 |
— | ||
|
16
|
16
78366-00000-000
Crochet couverc
|
78366-00000-000 |
— | ||
|
17
|
17
78350-00000-000
Gasket
|
78350-00000-000 |
— | ||
|
18
|
18
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
19
|
19
08319-A2106-600
Ecrou
|
08319-A2106-600 |
— | ||
|
20
|
20
50970-00000-000
Rear roof assy
|
50970-00000-000 |
— | ||
|
20
|
20
57804-00000-000
Black rear roof assy
|
57804-00000-000 |
— | ||
|
21
|
21
50948-00000-000
Moulure cg
|
50948-00000-000 |
— | ||
|
22
|
22
50949-00000-000
Moulure cd
|
50949-00000-000 |
— | ||
|
23
|
23
78335-00000-000
Windscreen hook, l/h
|
78335-00000-000 |
— | ||
|
24
|
24
78336-00000-000
Windscreen hook, r/h
|
78336-00000-000 |
— | ||
|
25
|
25
78324-00000-000
Fermenture
|
78324-00000-000 |
— | ||
|
26
|
26
78367-00000-000
Fermenture couvercle
|
78367-00000-000 |
— | ||
|
27
|
27
51433-00000-000
Crochet fermenture
|
51433-00000-000 |
— | ||
|
28
|
28
50973-00000-000
Cautchouc porte
|
50973-00000-000 |
— | ||
|
29
|
29
52094-00000-000
Side glass rh
NO COLOUR |
52094-00000-000 |
— | ||
|
29
|
29
52094-00010-000
Side glass rh
GREEN |
52094-00010-000 |
— | ||
|
30
|
30
52093-00000-000
Side glass lh
NO COLOUR |
52093-00000-000 |
— | ||
|
30
|
30
52093-00010-000
Side glass lh
GREEN |
52093-00010-000 |
— | ||
|
31
|
31
78307-00000-000
Caoutchouc
|
78307-00000-000 |
— | ||
|
32
|
32
78306-00000-000
Sid.window fix.rubber
|
78306-00000-000 |
— | ||
|
33
|
33
35254-00000-000
Cable moteur essuje-
C82463/2504-KIT |
35254-00000-000 |
— | ||
|
33
|
33
35295-00000-000
Scr.wash.eng.wiring
C82165-KIT |
35295-00000-000 |
— | ||
|
33
|
33
35296-00000-000
Scr.wash.eng.wiring
C82393/2488-KIT |
35296-00000-000 |
— | ||
|
33
|
33
35316-00000-000
Wire comp, back door
C82450/2588-KIT |
35316-00000-000 |
— | ||
|
33
|
33
36845-84010-000
Scr.wash.eng.wiring
CS2587-KIT |
36845-84010-000 |
— | ||
|
34
|
34
52085-00000-000
Rr out.plate assy,lh
|
52085-00000-000 |
— | ||
|
35
|
35
52086-00000-000
Rr out.plate assy,rh
|
52086-00000-000 |
— | ||
|
36
|
36
52310-00000-000
Rear door rubber
CS2165/2393-KIT |
52310-00000-000 |
— | ||
|
36
|
36
52692-00000-000
Rubber, rear door
CS2504/2450/2488 |
52692-00000-000 |
— | ||
|
37
|
37
52089-00000-000
Rear inlet plate assy, lh
|
52089-00000-000 |
— | ||
|
38
|
38
52090-00000-000
Rear inlet plate assy, rh
|
52090-00000-000 |
— | ||
|
39
|
39
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
39
|
39
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
40
|
40
08321-A3105-600
Washer
|
08321-A3105-600 |
— | ||
|
41
|
41
52102-00000-000
Rear door glass assy
NO COLOUR |
52102-00000-000 |
— | ||
|
41
|
41
52102-00010-000
Rear door glass assy
GREEN |
52102-00010-000 |
— | ||
|
42
|
42
51413-00000-000
Bracket, rear wash. bottle
|
51413-00000-000 |
— | ||
|
43
|
43
52181-00000-000
Adhesive plate
|
52181-00000-000 |
— | ||
|
44
|
44
52095-00000-000
Glass fix. plate
|
52095-00000-000 |
— | ||
|
45
|
45
51436-00000-000
Support vitre
|
51436-00000-000 |
— | ||
|
46
|
46
78362-00000-000
Screw, glass fixing
|
78362-00000-000 |
— | ||
|
47
|
47
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
47
|
47
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
48
|
48
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
48
|
48
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
49
|
49
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
50
|
50
51502-00000-000
Front corner plate lh
|
51502-00000-000 |
— | ||
|
51
|
51
51501-00000-000
Front corner plate rh
|
51501-00000-000 |
— | ||
|
52
|
52
00000-A0029-500
Tank plug
|
00000-A0029-500 |
— | ||
|
53
|
53
78359-00000-000
Butee
|
78359-00000-000 |
— | ||
|
54
|
54
09160-08075-000
ワッシャ,8.2X26X1.6
|
09160-08075-000 |
— | ||
| replacement | |||||
|
54
|
54
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
55
|
55
08313-B1108-500
Ecrou
|
08313-B1108-500 |
— | ||
|
56
|
56
78361-00000-000
Betee
|
78361-00000-000 |
— | ||
|
57
|
57
50086-00000-000
Duhp.200 fr.rubber
|
50086-00000-000 |
— | ||
|
58
|
58
35011-00000-000
Tank, rear glasswip.
|
35011-00000-000 |
— | ||
|
59
|
59
35253-00000-000
Hose, screenwasher
|
35253-00000-000 |
— | ||
|
60
|
60
35013-00000-000
Tuyau essuie glace
|
35013-00000-000 |
— | ||
|
61
|
61
78360-00000-000
Caoutchout av. barre
|
78360-00000-000 |
— | ||
|
62
|
62
09320-09004-000 CUSHIONFrm rh cover cushion |
09320-09004-000 |
from US $1.98 |
||
|
63
|
63
51372-00000-000
Knob
|
51372-00000-000 |
— | ||
|
64
|
64
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
64
|
64
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
64
|
64
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
65
|
65
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
65
|
65
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
66
|
66
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
67
|
67
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
67
|
67
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
68
|
68
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
68
|
68
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
69
|
69
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
70
|
70
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
71
|
71
08313-B1106-800
Ecrow
|
08313-B1106-800 |
— | ||
|
72
|
72
50964-00000-000
Profil protect, barre
ROOF L/H |
50964-00000-000 |
— | ||
|
73
|
73
50965-00000-000
Caoutch, arret adhe.c
ROOF R/H |
50965-00000-000 |
— | ||
|
74
|
74
55070-00000-000
Grommet
|
55070-00000-000 |
— | ||
|
75
|
75
78320-00000-000
Crochet ar cg
L/H |
78320-00000-000 |
— | ||
|
76
|
76
78323-00000-000
Crochet ar cd
R/H |
78323-00000-000 |
— | ||
|
77
|
77
52088-00000-000
Gasket plate, in. roof
|
52088-00000-000 |
— | ||
|
78
|
78
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
78
|
78
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
79
|
79
50952-00000-000
Moulure vitre ar.
|
50952-00000-000 |
— | ||
|
80
|
80
52308-00000-000
Rubber profile
|
52308-00000-000 |
— | ||
|
81
|
81
52157-00000-000
Seal profile, dumper bar
NOT SHOWN |
52157-00000-000 |
— | ||
|
82
|
82
52801-00000-000
Protector profile, antidump.
|
52801-00000-000 |
— | ||
|
83
|
83
09229-84C10-000
Pop rivet
|
09229-84C10-000 |
— | ||
|
84
|
84
78340-00000-000
Rr door upper gasket
|
78340-00000-000 |
— | ||
|
85
|
85
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
85
|
85
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
86
|
86
02112-04103-000
Screw 4x10
|
02112-04103-000 |
— | ||
| replacement | |||||
|
86
|
86
02112-0410A-000 SCREW |
02112-0410A-000 |
from US $2.04 |
||
|
87
|
87
51620-00000-000
Side protector plate
|
51620-00000-000 |
— | ||
|
88
|
88
51621-00000-000
Rear protector plate
|
51621-00000-000 |
— | ||
