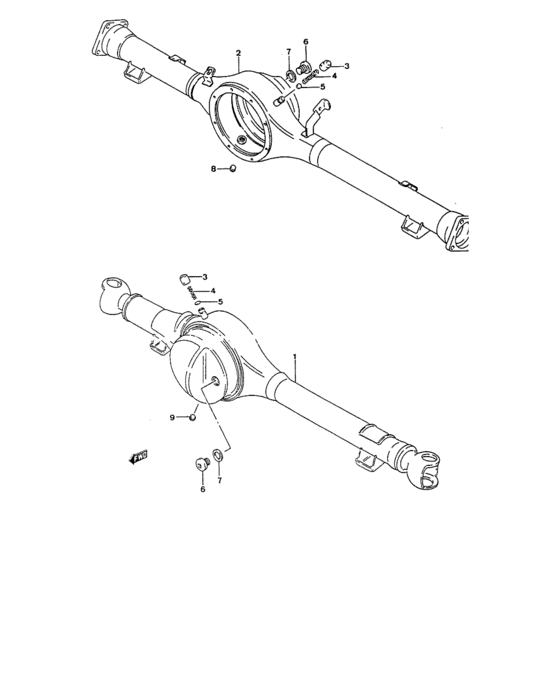

Shaft case (SHAFT CASE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46480-03303-000
Front case
|
46480-03303-000 |
— | ||
|
2
|
2
46510-A70A0-000
Carter arriere
|
46510-A70A0-000 |
— | ||
|
3
|
3
46541-53002-000
Breather plug
|
46541-53002-000 |
— | ||
|
4
|
4
09440-12004-000 SPRING |
09440-12004-000 |
from US $1.15 |
||
|
5
|
5
46542-52000-000
VALVE,BREATHER
|
46542-52000-000 |
— | ||
| replacement | |||||
|
5
|
5
46542-52001-000 VALVE,RR AXLE HSG BREATHER |
46542-52001-000 |
US $1.60 |
||
|
6
|
6
09246-A1600-900
Vacuum plug
|
09246-A1600-900 |
— | ||
|
7
|
7
09168-20002-000 GASKET(20.5X30X1.5)20.1x27x2 |
09168-20002-000 |
from US $0.80 |
||
| replacement | |||||
|
7
|
7
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
8
|
8
09246-A1601-000
Brain plug
|
09246-A1601-000 |
— | ||
|
9
|
9
09246-A1600-900
Vacuum plug
|
09246-A1600-900 |
— | ||
