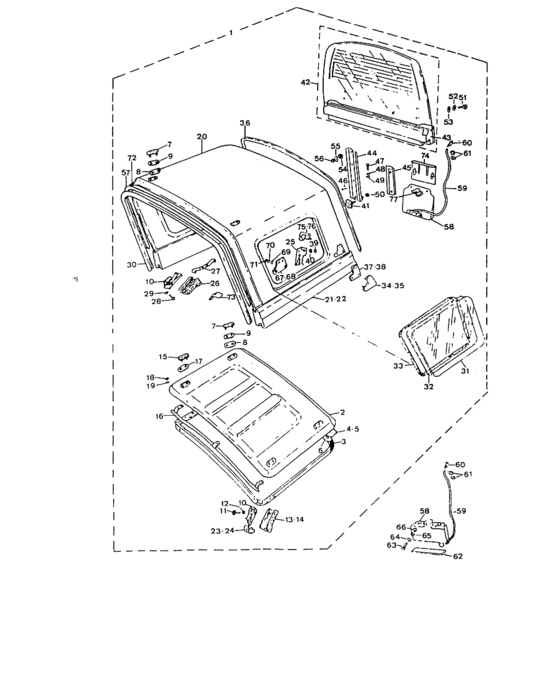

Short polye. roof (SHORT POLYE. ROOF) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50391-00000-000
Toit noir avant
|
50391-00000-000 |
— | ||
|
2
|
2
78338-00000-000
Toit avant
|
78338-00000-000 |
— | ||
|
3
|
3
78329-00000-000
Gasket
|
78329-00000-000 |
— | ||
|
4
|
4
50065-00000-000
Sealing profile, front roof
|
50065-00000-000 |
— | ||
|
5
|
5
50064-00000-000
Sealing molding, drip
|
50064-00000-000 |
— | ||
|
6
|
6
50067-00000-000
Rear rubber, front roof
|
50067-00000-000 |
— | ||
|
7
|
7
78325-00000-000
Outer plate assy, roof
|
78325-00000-000 |
— | ||
|
8
|
8
78328-00000-000
Suppement
|
78328-00000-000 |
— | ||
|
9
|
9
78329-00000-000
Gasket
|
78329-00000-000 |
— | ||
|
10
|
10
78330-00000-000
Fermenture rapide
|
78330-00000-000 |
— | ||
|
11
|
11
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
12
|
12
08321-A3105-600
Washer
|
08321-A3105-600 |
— | ||
|
13
|
13
78368-00000-000
Couverc fermeture d
|
78368-00000-000 |
— | ||
|
14
|
14
78369-00000-000
Quick lock cover, rh
|
78369-00000-000 |
— | ||
|
15
|
15
78343-00000-000
Front fix. plate assy, roof
|
78343-00000-000 |
— | ||
|
16
|
16
78344-00000-000
Transverse rod
|
78344-00000-000 |
— | ||
|
17
|
17
78350-00000-000
Gasket
|
78350-00000-000 |
— | ||
|
18
|
18
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
19
|
19
08319-A2106-600
Ecrou
|
08319-A2106-600 |
— | ||
|
20
|
20
50389-00000-000
Toit noir
|
50389-00000-000 |
— | ||
|
20
|
20
78301-00000-R00
Rear roof & molding
|
78301-00000-R00 |
— | ||
|
21
|
21
78303-00000-000
Moulure gauche
|
78303-00000-000 |
— | ||
|
22
|
22
78504-00000-000
Molding,r/h
|
78504-00000-000 |
— | ||
|
23
|
23
78335-00000-000
Windscreen hook, l/h
|
78335-00000-000 |
— | ||
|
24
|
24
78336-00000-000
Windscreen hook, r/h
|
78336-00000-000 |
— | ||
|
25
|
25
78324-00000-000
Fermenture
|
78324-00000-000 |
— | ||
|
26
|
26
78367-00000-000
Fermenture couvercle
|
78367-00000-000 |
— | ||
|
27
|
27
78333-00000-000
Lock hook
|
78333-00000-000 |
— | ||
|
28
|
28
02142-04106-000
スクリュ
|
02142-04106-000 |
— | ||
| replacement | |||||
|
28
|
28
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
29
|
29
08321-A3104-600
Grower washer
|
08321-A3104-600 |
— | ||
|
30
|
30
78306-00000-000
Sid.window fix.rubber
|
78306-00000-000 |
— | ||
|
31
|
31
78305-00000-000
Glace lateral
|
78305-00000-000 |
— | ||
|
32
|
32
78306-00000-000
Sid.window fix.rubber
|
78306-00000-000 |
— | ||
|
33
|
33
78307-00000-000
Caoutchouc
|
78307-00000-000 |
— | ||
|
34
|
34
78310-00000-000
Rear out.plate assy,lh
|
78310-00000-000 |
— | ||
|
35
|
35
78313-00000-000
Rear out.plate assy, rh
|
78313-00000-000 |
— | ||
|
36
|
36
78309-00000-000
Caoutchouc porte
|
78309-00000-000 |
— | ||
|
37
|
37
78315-00000-000
Plaque int ar cg
|
78315-00000-000 |
— | ||
|
38
|
38
78318-00000-000
Plaque int ar cd
|
78318-00000-000 |
— | ||
|
39
|
39
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
40
|
40
08313-A1106-600
Nut
|
08313-A1106-600 |
— | ||
|
41
|
41
78364-00000-000
Glass fixing knob
|
78364-00000-000 |
— | ||
|
42
|
42
78355-00000-000
Molding & glass assy
|
78355-00000-000 |
— | ||
|
43
|
43
78357-00000-000
Glass molding
|
78357-00000-000 |
— | ||
|
44
|
44
78358-00000-000
Plaque fixation
|
78358-00000-000 |
— | ||
|
45
|
45
78341-00000-000
Support glace
|
78341-00000-000 |
— | ||
|
46
|
46
02142-06165-000
Screw
H 117896 |
02142-06165-000 |
— | ||
| replacement | |||||
|
46
|
46
02142-0616A-000 SCREWH 117896 |
02142-0616A-000 |
from US $0.76 |
||
|
46
|
46
02142-A0616-500
Screw
D 117897 |
02142-A0616-500 |
— | ||
|
47
|
47
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
47
|
47
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
48
|
48
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
48
|
48
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
49
|
49
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
50
|
50
04007-00000-000
Nut
|
04007-00000-000 |
— | ||
|
51
|
51
78362-00000-000
Screw, glass fixing
|
78362-00000-000 |
— | ||
|
52
|
52
78359-00000-000
Butee
|
78359-00000-000 |
— | ||
|
52
|
52
78361-00000-000
Betee
|
78361-00000-000 |
— | ||
|
53
|
53
78360-00000-000
Caoutchout av. barre
|
78360-00000-000 |
— | ||
|
54
|
54
09160-08075-000
ワッシャ,8.2X26X1.6
|
09160-08075-000 |
— | ||
| replacement | |||||
|
54
|
54
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
56
|
56
08313-A1108-500
Nut
|
08313-A1108-500 |
— | ||
|
57
|
57
50066-00000-000
Front rubber, antidump
|
50066-00000-000 |
— | ||
|
58
|
58
00000-A0029-200
Tank plug
|
00000-A0029-200 |
— | ||
|
58
|
58
35011-00000-000
Tank, rear glasswip.
|
35011-00000-000 |
— | ||
|
58
|
58
38400-K8000-000
Water rigid tank
|
38400-K8000-000 |
— | ||
|
59
|
59
35012-00000-000
Gicleur
HARD TANK |
35012-00000-000 |
— | ||
|
59
|
59
35253-00000-000
Hose, screenwasher
FLEXIBLE TANK |
35253-00000-000 |
— | ||
|
60
|
60
35013-00000-000
Tuyau essuie glace
|
35013-00000-000 |
— | ||
|
61
|
61
09320-09004-000 CUSHIONFrm rh cover cushion |
09320-09004-000 |
from US $1.98 |
||
|
62
|
62
35038-00000-000
Weatherstrip
|
35038-00000-000 |
— | ||
|
63
|
63
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
63
|
63
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
64
|
64
09160-08053-000
Washer cylinder (Steel)
|
09160-08053-000 |
— | ||
| replacement | |||||
|
64
|
64
09160-08039-000 WASHER(8.5X19X2.3) STEEL |
09160-08039-000 |
from US $1.12 |
||
|
65
|
65
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
65
|
65
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
65
|
65
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
66
|
66
09160-08075-000
ワッシャ,8.2X26X1.6
|
09160-08075-000 |
— | ||
| replacement | |||||
|
66
|
66
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
67
|
67
78320-00000-000
Crochet ar cg
|
78320-00000-000 |
— | ||
|
68
|
68
78323-00000-000
Crochet ar cd
|
78323-00000-000 |
— | ||
|
69
|
69
09160-A0601-900
Washer
|
09160-A0601-900 |
— | ||
|
70
|
70
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
71
|
71
08313-A1106-600
Nut
|
08313-A1106-600 |
— | ||
|
72
|
72
50069-00000-000
Profil
|
50069-00000-000 |
— | ||
|
73
|
73
78366-00000-000
Crochet couverc
|
78366-00000-000 |
— | ||
|
74
|
74
51413-00000-000
Bracket, rear wash. bottle
|
51413-00000-000 |
— | ||
|
75
|
75
78320-00000-000
Crochet ar cg
|
78320-00000-000 |
— | ||
|
76
|
76
78323-00000-000
Crochet ar cd
|
78323-00000-000 |
— | ||
|
77
|
77
00000-A0029-300
Plug, rear sc.wash. tank
|
00000-A0029-300 |
— | ||
