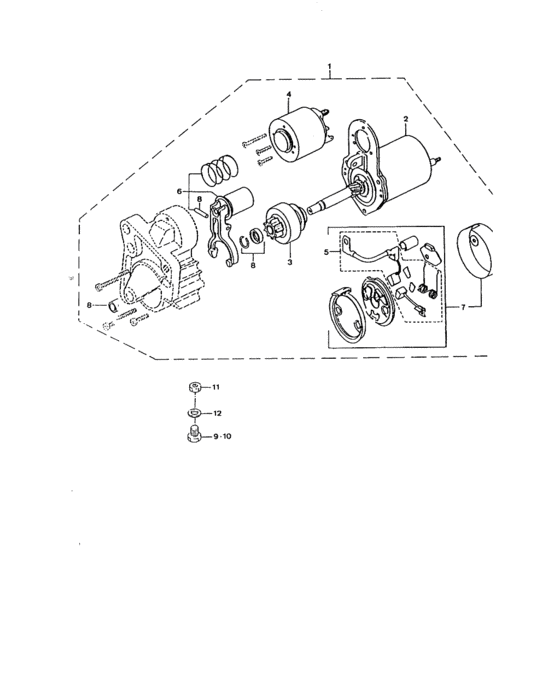

Starter (STARTER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31180-C8301-000
Starter assy
VALKO |
31180-C8301-000 |
— | ||
|
2
|
2
00000-A0081-300
Reduct.compr.engine
|
00000-A0081-300 |
— | ||
|
3
|
3
00000-A0081-400
Bendix front pinion
|
00000-A0081-400 |
— | ||
|
4
|
4
00000-A0081-500
Electric connector
|
00000-A0081-500 |
— | ||
|
5
|
5
00000-A0081-600
Brush set
|
00000-A0081-600 |
— | ||
|
6
|
6
00000-A0081-700
Yoke
|
00000-A0081-700 |
— | ||
|
7
|
7
00000-A0081-800
Feeding
|
00000-A0081-800 |
— | ||
|
8
|
8
00000-A0081-900
Repair parts set
|
00000-A0081-900 |
— | ||
|
9
|
9
01517-08306-000
Bolt
|
01517-08306-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
9
|
9
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
10
|
10
01517-08453-000
Vis
|
01517-08453-000 |
— | ||
|
11
|
11
08310-11086-000
Nut
|
08310-11086-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
12
|
12
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
