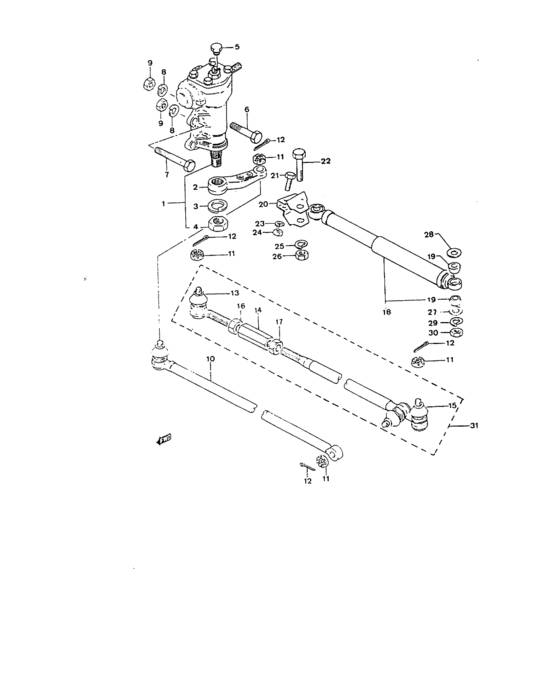

Steer. box/bar (STEER. BOX/BAR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-80022-000 BOX ASSY,STEERING GEAR (MANUAL)United Kingdom |
48600-80022-000 |
US $601.60 |
||
|
2
|
2
48671-80011-000 ARM,PITMAN |
48671-80011-000 |
US $61.57 |
||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCK |
48644-80010-000 |
US $1.92 |
||
|
4
|
4
48674-63240-000 NUT |
48674-63240-000 |
US $5.92 |
||
|
5
|
5
48633-67040-000
プラグ,ブリーザ
|
48633-67040-000 |
— | ||
| replacement | |||||
|
5
|
5
48633-67011-000 PLUG,BREATHER |
48633-67011-000 |
US $7.29 |
||
|
6
|
6
01107-12703-000
Bolt 12x70
|
01107-12703-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1270A-000 Bolt |
01500-1270A-000 |
US $1.60 |
||
|
7
|
7
01107-12903-000
ボルト
|
01107-12903-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-1290A-000 Bolt |
01500-1290A-000 |
US $1.82 |
||
|
8
|
8
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
9
|
9
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
48900-A70A0-100
Control rod
|
48900-A70A0-100 |
— | ||
|
11
|
11
08314-41123-000
Nut
|
08314-41123-000 |
— | ||
| replacement | |||||
|
11
|
11
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
04111-30206-000
コッタピン
|
04111-30206-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
13
|
13
48810-60A00-000
エンド,ステアリングロッド
|
48810-60A00-000 |
— | ||
| replacement | |||||
|
13
|
13
48810-81A01-000 END,DRAG ROD,L |
48810-81A01-000 |
from US $44.10 |
||
|
14
|
14
48830-70A00-000
Rod connector
|
48830-70A00-000 |
— | ||
|
15
|
15
48870-70A02-000 TIE-ROD,STEERING |
48870-70A02-000 |
US $198.72 |
||
|
16
|
16
48837-70A00-000 NUT,TIE-ROD END LOCK,R |
48837-70A00-000 |
US $2.08 |
||
|
17
|
17
48838-70A00-000 NUT,TIE-ROD END LOCK,L |
48838-70A00-000 |
US $2.56 |
||
|
18
|
18
48730-A8001-000
Damper
ALTERN. |
48730-A8001-000 |
— | ||
|
18
|
18
48730-B8001-000
Amortisseur directio
|
48730-B8001-000 |
— | ||
|
19
|
19
41681-A5804-000
Bush
|
41681-A5804-000 |
— | ||
|
20
|
20
48741-80000-000 STAY,DAMPER |
48741-80000-000 |
US $4.60 |
||
|
21
|
21
01107-08303-000
ボルト
|
01107-08303-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
22
|
22
01104-12553-000
New Genuine Part
|
01104-12553-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-1255B-000 Bolt |
01500-1255B-000 |
from US $1.38 |
||
|
23
|
23
08321-A3108-300
Rondelle
TYPE 1 |
08321-A3108-300 |
— | ||
|
23
|
23
08321-B3108-600
Grower washer
TYPE 2,TYPE 3 |
08321-B3108-600 |
— | ||
|
24
|
24
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
24
|
24
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
25
|
25
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
26
|
26
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
26
|
26
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
27
|
27
09160-10074-000
Rondelle
|
09160-10074-000 |
— | ||
| replacements | |||||
|
27
|
27
09160-10035-000 WASHER(10.5X28X2.3)Washer |
09160-10035-000 |
from US $1.28 |
||
|
27
|
27
09160-10129-000 WASHER(10.5X28X1.6)Washer (10.5x28x1.6) |
09160-10129-000 |
US $1.28 |
||
|
28
|
28
08322-21123-000 New Genuine Part |
08322-21123-000 |
US $1.12 |
||
| replacement | |||||
|
28
|
28
08322-0112B-000 WASHER |
08322-0112B-000 |
from US $0.80 |
||
|
29
|
29
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
30
|
30
08310-11103-000
Rondelle
|
08310-11103-000 |
— | ||
| replacement | |||||
|
30
|
30
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
31
|
31
48800-70A02-000
Cross bar assy
|
48800-70A02-000 |
— | ||
