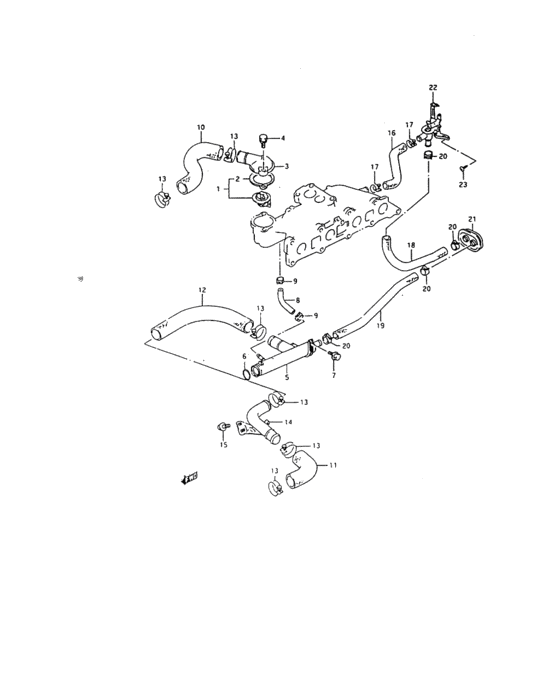

Thermostat, rhd (THERMOSTAT, RHD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17570-A7400-100
Thermostat
|
17570-A7400-100 |
— | ||
|
2
|
2
17569-B8000-000
Gasket
|
17569-B8000-000 |
— | ||
|
3
|
3
17561-73000-000 CAP,WATER THERMOSTAT |
17561-73000-000 |
US $11.10 |
||
|
4
|
4
01104-08303-000
Screw
|
01104-08303-000 |
— | ||
|
5
|
5
17550-83021-000
Tuyau
|
17550-83021-000 |
— | ||
| replacements | |||||
|
5
|
5
17550-83X50-000 PIPE,WATER INLET |
17550-83X50-000 |
US $188.80 |
||
|
5
|
5
09356-75141-600 HOSE(7.5X14.5X600) |
09356-75141-600 |
US $7.20 |
||
|
5
|
5
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.52 |
||
|
5
|
5
09356-75141-200
New Genuine Part
|
09356-75141-200 |
— | ||
|
6
|
6
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
US $1.28 |
||
|
7
|
7
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
7
|
7
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
8
|
8
17859-83001-000
Hose, water dypass
|
17859-83001-000 |
— | ||
| replacements | |||||
|
8
|
8
09356-75141-600 HOSE(7.5X14.5X600) |
09356-75141-600 |
US $7.20 |
||
|
8
|
8
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.52 |
||
|
8
|
8
09356-75141-200
New Genuine Part
|
09356-75141-200 |
— | ||
|
9
|
9
09401-B1340-400
Collier
|
09401-B1340-400 |
— | ||
|
10
|
10
17841-83000-000
Hose, radiator inlet
|
17841-83000-000 |
— | ||
| replacement | |||||
|
10
|
10
17841-60A00-000 HOSE,RADIATOR INLET |
17841-60A00-000 |
US $32.80 |
||
|
11
|
11
17851-83000-000
ホース,ラジエータアウトレット,NO.1
|
17851-83000-000 |
— | ||
| replacement | |||||
|
11
|
11
17851-60A00-000 HOSE,RADIATOR OUTLET NO.1 |
17851-60A00-000 |
US $16.80 |
||
|
12
|
12
17852-83000-000 HOSE,RADIATOR OUTLET NO.2 |
17852-83000-000 |
US $35.72 |
||
|
13
|
13
08005-00000-000
Collier
|
08005-00000-000 |
— | ||
|
14
|
14
17860-A8300-000
Radiator elbow
|
17860-A8300-000 |
— | ||
|
15
|
15
01514-08123-000
Bolt
|
01514-08123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
15
|
15
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
16
|
16
17871-83000-000
Hose, inlet to valve
|
17871-83000-000 |
— | ||
| replacement | |||||
|
16
|
16
17871-80C00-000 HOSE,HEATER INTAKE TO VALVE |
17871-80C00-000 |
US $22.80 |
||
|
17
|
17
08002-00000-000
Clamp
|
08002-00000-000 |
— | ||
|
18
|
18
17872-83000-000
ホース,バルブツーヒータ
|
17872-83000-000 |
— | ||
| replacements | |||||
|
18
|
18
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.37 |
||
|
18
|
18
17800-71810-000
HOSE SET,HEATER
|
17800-71810-000 |
— | ||
|
19
|
19
17875-A8300-000
Heater inlet hose
|
17875-A8300-000 |
— | ||
|
20
|
20
09401-A2040-200
Clip
|
09401-A2040-200 |
— | ||
|
21
|
21
74812-83001-000 GROMMET,HEATER HOSE |
74812-83001-000 |
US $10.08 |
||
|
22
|
22
74710-83000-000 VALVE,WATER |
74710-83000-000 |
US $48 |
||
|
23
|
23
03741-06126-000
Screw
|
03741-06126-000 |
— | ||
