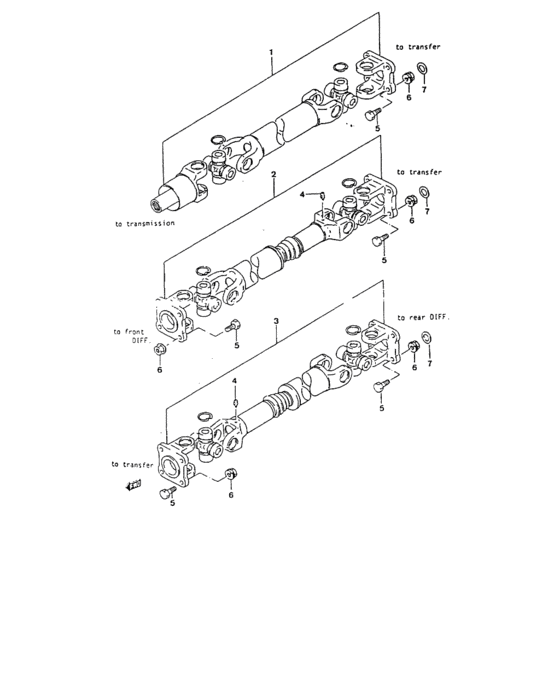

Transm. shaft (TRANSM. SHAFT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-B8300-100
Shaft assy, propeller no.1
|
27101-B8300-100 |
— | ||
|
2
|
2
27102-83001-000
Shaft assy, propeller no.2
TYPE 2,INJ |
27102-83001-000 |
— | ||
| replacement | |||||
|
2
|
2
27102-83002-000 SHAFT ASSY,PROPELLERTYPE 2,INJ |
27102-83002-000 |
US $450.56 |
||
|
2
|
2
27102-C8300-100
Transmission
|
27102-C8300-100 |
— | ||
|
3
|
3
27103-A0320-100
Rear propeller shaft
LONG BODY |
27103-A0320-100 |
— | ||
|
3
|
3
27103-C8300-100
Transmission ar
|
27103-C8300-100 |
— | ||
|
4
|
4
08351-A2100-800
Grassieur
|
08351-A2100-800 |
— | ||
|
5
|
5
09100-08172-000
Vis
|
09100-08172-000 |
— | ||
| replacement | |||||
|
5
|
5
09100-08270-000 BOLT(8X28) |
09100-08270-000 |
US $1.67 |
||
|
6
|
6
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
7
|
7
08321-51086-000
Grower washer
|
08321-51086-000 |
— | ||
