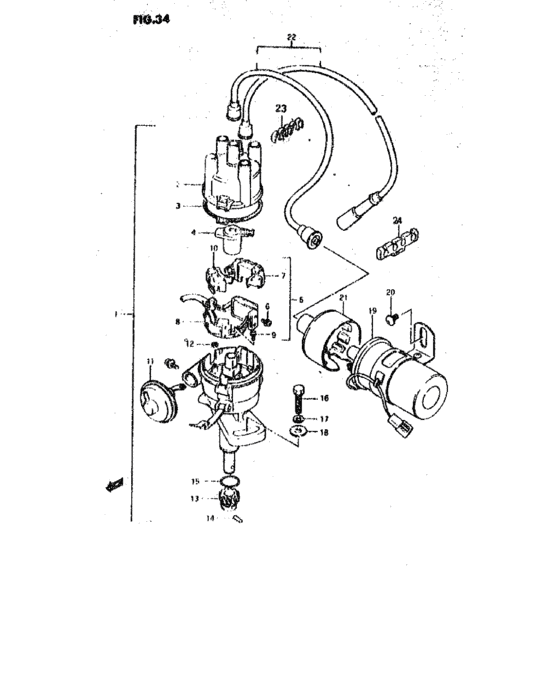

Allumeur (ALLUMEUR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-83020-000
Distributor assy
|
33100-83020-000 |
— | ||
|
2
|
2
33321-75110-000
Couvercle distributeur
|
33321-75110-000 |
— | ||
|
3
|
3
33324-79610-000 PACKING,CAP |
33324-79610-000 |
US $1.52 |
||
|
4
|
4
33310-73010-000
ロータアッシ(DENSO)
|
33310-73010-000 |
— | ||
| replacement | |||||
|
4
|
4
33310-82010-000 ROTOR ASSY |
33310-82010-000 |
US $8.21 |
||
|
5
|
5
33370-83011-000
IGNITER ASSY
|
33370-83011-000 |
— | ||
|
6
|
6
33152-82010-000
スクリュ
|
33152-82010-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-3408A-000 SCREW |
02112-3408A-000 |
from US $0.80 |
||
|
6
|
6
02112-34086-000
Screw
|
02112-34086-000 |
— | ||
|
7
|
7
33297-81060-000
COVER,IGNITER DUST
|
33297-81060-000 |
— | ||
|
8
|
8
33140-80020-000
Generator assy,distributor
|
33140-80020-000 |
— | ||
|
9
|
9
33151-80020-000 SCREW,IGNITER |
33151-80020-000 |
US $1.60 |
||
|
10
|
10
33279-80020-000 COVER,GENERATOR DUST |
33279-80020-000 |
US $9.44 |
||
|
11
|
11
33230-83020-000
CONTROLLER ASSY,VACUUM
|
33230-83020-000 |
— | ||
|
12
|
12
33239-76410-000 E-RING |
33239-76410-000 |
US $1.60 |
||
|
13
|
13
33267-83010-000
GEAR,DISTRIBUTOR
|
33267-83010-000 |
— | ||
|
14
|
14
33268-83010-000
Clavette
|
33268-83010-000 |
— | ||
|
15
|
15
33278-52010-000
Oリング
|
33278-52010-000 |
— | ||
| replacement | |||||
|
15
|
15
33278-85310-000 O-RING |
33278-85310-000 |
US $2.74 |
||
|
16
|
16
09100-08226-000
Vis
|
09100-08226-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
17
|
17
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
18
|
18
09160-08080-000 Washer 8.2 x 22 |
09160-08080-000 |
US $2.12 |
||
| replacement | |||||
|
18
|
18
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
19
|
19
33410-83010-000
コイルアッシ,イグニツシヨン
|
33410-83010-000 |
— | ||
| replacement | |||||
|
19
|
19
33410-830V0-000
COIL ASSY,IGNITION
|
33410-830V0-000 |
— | ||
|
20
|
20
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
20
|
20
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
20
|
20
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
21
|
21
33471-77011-000
CAP,IGNITION COIL
|
33471-77011-000 |
— | ||
|
22
|
22
33700-A8301-000
Cable
|
33700-A8301-000 |
— | ||
|
22
|
22
33710-A8301-000
Cable
|
33710-A8301-000 |
— | ||
|
22
|
22
33730-A8001-000
Cable distributor ci
|
33730-A8001-000 |
— | ||
|
22
|
22
33730-A8301-000
Cable cylindre n 1
|
33730-A8301-000 |
— | ||
|
22
|
22
33740-A8301-000
Cable cylindre n 2
|
33740-A8301-000 |
— | ||
|
22
|
22
33760-A8001-000
Cable distributor ci
|
33760-A8001-000 |
— | ||
|
23
|
23
33883-63200-000
CLAMP,HIGH TENSION CORD
|
33883-63200-000 |
— | ||
|
24
|
24
33883-83020-000
クランプ,ハイテンションコード
|
33883-83020-000 |
— | ||
| replacement | |||||
|
24
|
24
09408-00116-000 CLIP |
09408-00116-000 |
US $44.90 |
||
