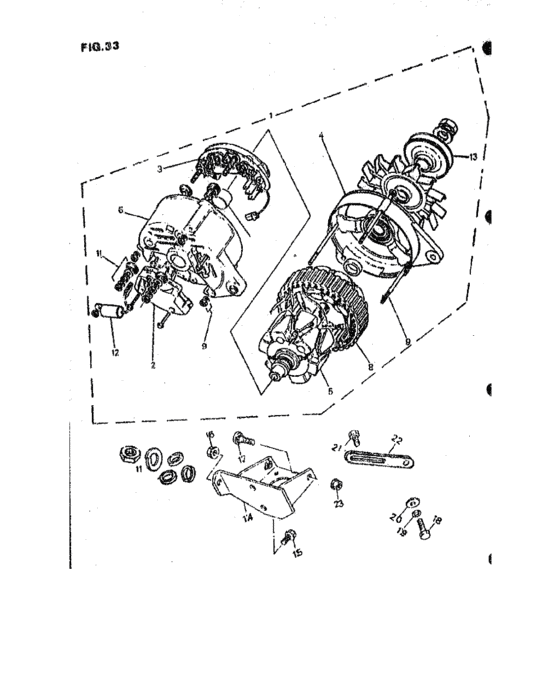

Alternateur 55a lucas (ALTERNATEUR 55A LUCAS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30006-00000-000
Alternateur
|
30006-00000-000 |
— | ||
|
2
|
2
00000-A0042-400
Regulateur
|
00000-A0042-400 |
— | ||
|
3
|
3
00000-A0042-500
Recticateur
|
00000-A0042-500 |
— | ||
|
4
|
4
00000-A0042-600
Support avant
|
00000-A0042-600 |
— | ||
|
5
|
5
00000-A0042-700
Rotuer
|
00000-A0042-700 |
— | ||
|
6
|
6
00000-A0042-800
Support arriere
|
00000-A0042-800 |
— | ||
|
7
|
7
00000-A0042-900
Bush
|
00000-A0042-900 |
— | ||
|
8
|
8
00000-A0043-000
Induit
|
00000-A0043-000 |
— | ||
|
9
|
9
00000-A0043-100
Vis
|
00000-A0043-100 |
— | ||
|
10
|
10
00000-A0043-200
Vis
|
00000-A0043-200 |
— | ||
|
11
|
11
00000-A0043-300
Jeu fixation alternateur
|
00000-A0043-300 |
— | ||
|
12
|
12
00000-A0043-400
Capaciter suprection
|
00000-A0043-400 |
— | ||
|
13
|
13
00000-A0043-500
Polie
|
00000-A0043-500 |
— | ||
|
14
|
14
17910-A8200-000
Alternator bracket
|
17910-A8200-000 |
— | ||
|
15
|
15
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
08316-A1608-300
Nut
|
08316-A1608-300 |
— | ||
|
17
|
17
09107-A0800-500
Screw
|
09107-A0800-500 |
— | ||
|
18
|
18
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
18
|
18
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
19
|
19
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
20
|
20
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
21
|
21
01117-08203-000
Vis
|
01117-08203-000 |
— | ||
|
22
|
22
17921-A8201-000
Tensioner
|
17921-A8201-000 |
— | ||
|
23
|
23
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
23
|
23
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
