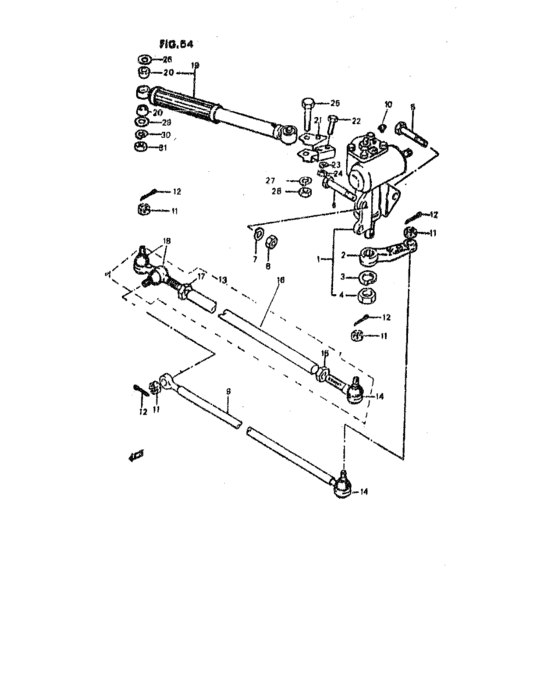

Boite et barres direction (BOITE ET BARRES DIRECTION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-80011-000
Boitier de direction
|
48600-80011-000 |
— | ||
|
1
|
1
48600-80060-000
Ens boite direction
|
48600-80060-000 |
— | ||
|
2
|
2
48671-80011-000 ARM,PITMAN |
48671-80011-000 |
US $61.57 |
||
|
2
|
2
48671-80060-000
アーム,ピットマン
|
48671-80060-000 |
— | ||
| replacement | |||||
|
2
|
2
48671-80011-000 ARM,PITMAN |
48671-80011-000 |
US $61.57 |
||
|
3
|
3
08321-21208-000
Washer,lock 20m
|
08321-21208-000 |
— | ||
| replacement | |||||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCK |
48644-80010-000 |
US $1.92 |
||
|
4
|
4
48674-63240-000 NUT |
48674-63240-000 |
US $5.92 |
||
|
4
|
4
48674-80060-000
ナット
|
48674-80060-000 |
— | ||
| replacement | |||||
|
4
|
4
48674-63240-000 NUT |
48674-63240-000 |
US $5.92 |
||
|
5
|
5
01107-12703-000
Bolt 12x70
|
01107-12703-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-1270A-000 Bolt |
01500-1270A-000 |
US $1.60 |
||
|
6
|
6
01107-12903-000
ボルト
|
01107-12903-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1290A-000 Bolt |
01500-1290A-000 |
US $1.82 |
||
|
7
|
7
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
8
|
8
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
9
|
9
48900-A8006-000
Barre de direction
|
48900-A8006-000 |
— | ||
|
10
|
10
48633-67011-000 PLUG,BREATHER |
48633-67011-000 |
US $7.29 |
||
|
11
|
11
08314-41123-000
Nut
|
08314-41123-000 |
— | ||
| replacement | |||||
|
11
|
11
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
04111-30256-000
Cotter pin
|
04111-30256-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-3030A-000 PIN |
04111-3030A-000 |
from US $0.76 |
||
|
13
|
13
48800-A8006-000
Barre
|
48800-A8006-000 |
— | ||
|
14
|
14
48810-A8000-000
Rotule finale barre
|
48810-A8000-000 |
— | ||
|
15
|
15
00000-A0012-900
Right threaded nut
|
00000-A0012-900 |
— | ||
|
16
|
16
48843-A8000-000
Tube centrale
|
48843-A8000-000 |
— | ||
|
17
|
17
00000-A0012-700
Left threaded nut
|
00000-A0012-700 |
— | ||
|
18
|
18
48870-A8006-000
Tie rod, steering
|
48870-A8006-000 |
— | ||
|
19
|
19
48730-B8001-000
Amortisseur directio
|
48730-B8001-000 |
— | ||
|
20
|
20
41681-A5804-000
Bush
|
41681-A5804-000 |
— | ||
|
21
|
21
48741-80060-000
STAY,STEERING DAMPER
|
48741-80060-000 |
— | ||
|
22
|
22
01107-08303-000
ボルト
|
01107-08303-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
23
|
23
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
24
|
24
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
24
|
24
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
25
|
25
01104-12553-000
New Genuine Part
|
01104-12553-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-1255B-000 Bolt |
01500-1255B-000 |
from US $1.38 |
||
|
26
|
26
08322-21123-000 New Genuine Part |
08322-21123-000 |
US $1.12 |
||
| replacement | |||||
|
26
|
26
08322-0112B-000 WASHER |
08322-0112B-000 |
from US $0.80 |
||
|
27
|
27
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
28
|
28
08310-11123-000
New Genuine Part
|
08310-11123-000 |
— | ||
| replacement | |||||
|
28
|
28
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
29
|
29
09160-10074-000
Rondelle
|
09160-10074-000 |
— | ||
| replacements | |||||
|
29
|
29
09160-10035-000 WASHER(10.5X28X2.3)Washer |
09160-10035-000 |
from US $1.28 |
||
|
29
|
29
09160-10129-000 WASHER(10.5X28X1.6)Washer (10.5x28x1.6) |
09160-10129-000 |
US $1.28 |
||
|
30
|
30
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
31
|
31
08310-11103-000
Rondelle
|
08310-11103-000 |
— | ||
| replacement | |||||
|
31
|
31
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
