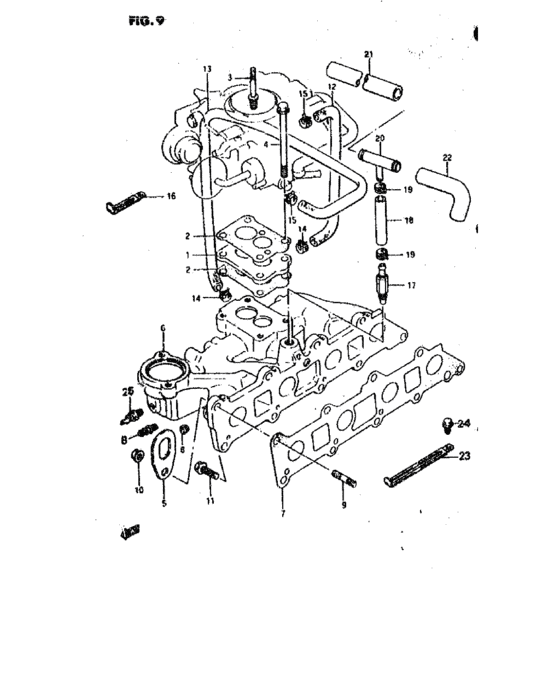

Collecteur admission (COLLECTEUR ADMISSION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13129-83000-000
SPACER,CARBURETOR
|
13129-83000-000 |
— | ||
|
2
|
2
13125-83000-000
Gasket, carburetor
|
13125-83000-000 |
— | ||
| replacement | |||||
|
2
|
2
13121-82X50-000 GASKET,CARB |
13121-82X50-000 |
US $1.98 |
||
|
3
|
3
13839-83000-000
BOLT,INTAKE CASE STUD
|
13839-83000-000 |
— | ||
|
4
|
4
09103-08134-000 BOLT(8X110)Bolt, collector no.1 |
09103-08134-000 |
from US $1.82 |
||
|
5
|
5
11851-73000-000
Engine book
|
11851-73000-000 |
— | ||
| replacement | |||||
|
5
|
5
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
6
|
6
13110-83040-000
Manifold, intake
|
13110-83040-000 |
— | ||
|
7
|
7
13119-82601-000
Joint collecteur
|
13119-82601-000 |
— | ||
| replacement | |||||
|
7
|
7
13119-63B11-000 GASKET,INTK MANF |
13119-63B11-000 |
US $48 |
||
|
8
|
8
09246-A0500-100
Bouchon canal huille
|
09246-A0500-100 |
— | ||
|
8
|
8
45001-00000-000
Raccord tuyau
|
45001-00000-000 |
— | ||
|
9
|
9
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
10
|
10
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
10
|
10
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
11
|
11
01517-08256-000
Bolt
|
01517-08256-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
13191-83000-000
Hose, carburetor choke inlet
|
13191-83000-000 |
— | ||
| replacements | |||||
|
12
|
12
13191-83001-000
HOSE,CARB CHOKE INLET
|
13191-83001-000 |
— | ||
|
12
|
12
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
13
|
13
13192-83000-000
Hose, carburetor choke outlet
|
13192-83000-000 |
— | ||
| replacements | |||||
|
13
|
13
13192-83001-000
HOSE,CARB CHOKE OUTLET
|
13192-83001-000 |
— | ||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
14
|
14
09401-B1340-400
Collier
|
09401-B1340-400 |
— | ||
|
15
|
15
09401-A1340-400
Collier
|
09401-A1340-400 |
— | ||
|
16
|
16
09404-A0640-200
Support gaime
|
09404-A0640-200 |
— | ||
|
17
|
17
18118-80010-000 VALVE,PCV |
18118-80010-000 |
US $38.40 |
||
|
18
|
18
11193-A8000-000
Hose, pcv
|
11193-A8000-000 |
— | ||
|
19
|
19
09401-13406-000
Clamp
|
09401-13406-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-13404-000
CLIP
|
09401-13404-000 |
— | ||
|
20
|
20
09367-14003-000
Reccord 3 voices
|
09367-14003-000 |
— | ||
| replacement | |||||
|
20
|
20
09367-14002-000 JOINT |
09367-14002-000 |
US $58.90 |
||
|
21
|
21
11191-73001-000
Tuyau
|
11191-73001-000 |
— | ||
| replacement | |||||
|
21
|
21
11191-79200-000 HOSE,BREATHER |
11191-79200-000 |
US $35.20 |
||
|
22
|
22
11192-83000-000
Hose, breather
|
11192-83000-000 |
— | ||
| replacement | |||||
|
22
|
22
11191-71C01-000 HOSE,BREATHER NO.1 |
11191-71C01-000 |
US $34.40 |
||
|
23
|
23
09404-A0641-500
Collier de serrage
|
09404-A0641-500 |
— | ||
|
24
|
24
01514-06103-000
Vis fixation deflect
|
01514-06103-000 |
— | ||
|
25
|
25
34850-A8200-000
Gauge assy, water temp
|
34850-A8200-000 |
— | ||
