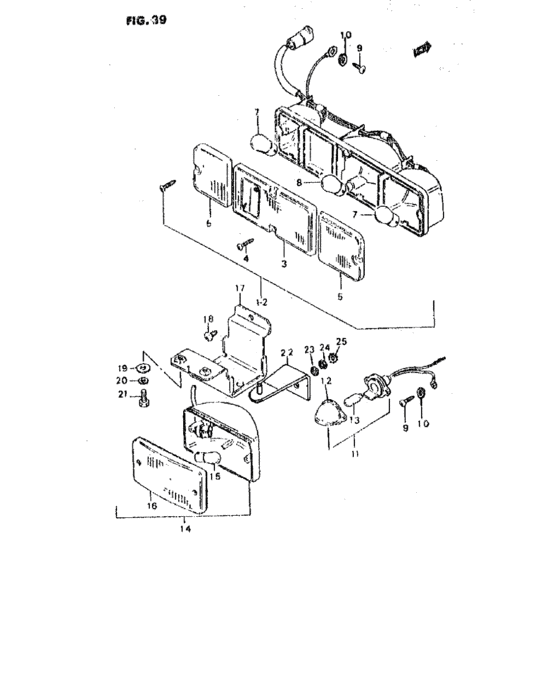

Eclairage arriere (ECLAIRAGE ARRIERE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-A8001-200
Lampe arriere droit
|
35603-A8001-200 |
— | ||
|
2
|
2
35604-A8001-200
Lampe arriere gauche
|
35604-A8001-200 |
— | ||
|
3
|
3
00000-A0010-300
Plastique rouge gauche
|
00000-A0010-300 |
— | ||
|
3
|
3
00000-A0010-500
Plastique rouge droit
|
00000-A0010-500 |
— | ||
|
4
|
4
00000-A0010-400
Vis
|
00000-A0010-400 |
— | ||
|
5
|
5
00000-A0010-600
Plastique
|
00000-A0010-600 |
— | ||
|
6
|
6
00000-A0010-700
Plastique
|
00000-A0010-700 |
— | ||
|
7
|
7
00000-A0010-800
Lampe 12 v.
|
00000-A0010-800 |
— | ||
|
8
|
8
00000-A0010-900
Lampe 12 v.
|
00000-A0010-900 |
— | ||
|
9
|
9
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
9
|
9
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
10
|
10
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
10
|
10
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
11
|
11
35910-B8001-100
Lampe immatricul.
|
35910-B8001-100 |
— | ||
|
12
|
12
00000-A0014-900
Plastic
|
00000-A0014-900 |
— | ||
|
13
|
13
00000-A0015-000
Lampe
|
00000-A0015-000 |
— | ||
|
14
|
14
36570-A7900-000
Lampe brouillard
|
36570-A7900-000 |
— | ||
|
15
|
15
00000-A0011-100
Lampe
|
00000-A0011-100 |
— | ||
|
16
|
16
00000-A0011-000
Plastique
|
00000-A0011-000 |
— | ||
|
17
|
17
36580-80001-000
Bracket,fr fog lamp
|
36580-80001-000 |
— | ||
|
18
|
18
01104-06166-000
Bolt
|
01104-06166-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
19
|
19
09160-06016-000
Washer (6x16x1.2)
|
09160-06016-000 |
— | ||
| replacement | |||||
|
19
|
19
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
20
|
20
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
21
|
21
03141-06126-000
スクリュ
|
03141-06126-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
22
|
22
36570-C7900-000
Light bracket
|
36570-C7900-000 |
— | ||
|
23
|
23
08310-11086-000
Nut
|
08310-11086-000 |
— | ||
| replacement | |||||
|
23
|
23
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
24
|
24
02005-00000-000
Washer
|
02005-00000-000 |
— | ||
|
25
|
25
02007-00000-000
Washer
|
02007-00000-000 |
— | ||
