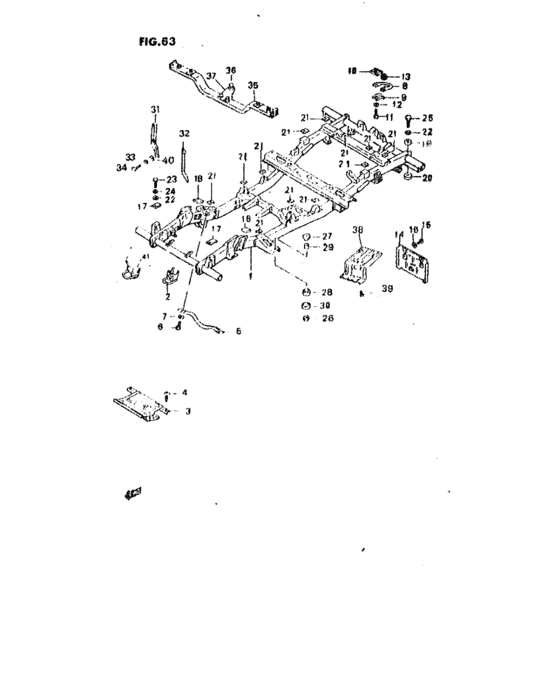

Ensemble chassis (ENSEMBLE CHASSIS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-A8307-000
Chassis
|
57000-A8307-000 |
— | ||
|
2
|
2
57270-83021-000
BRACKET,1ST CROSSMEMBER
|
57270-83021-000 |
— | ||
|
3
|
3
71411-83000-000
Panel, engine splash lh
|
71411-83000-000 |
— | ||
| replacement | |||||
|
3
|
3
71411-83002-000 PANEL,ENGINE SPLASH |
71411-83002-000 |
US $38.77 |
||
|
4
|
4
03241-06103-000
New Genuine Part
|
03241-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0610A-000 SCREW |
03241-0610A-000 |
US $0.76 |
||
|
5
|
5
71441-83002-000
メンバ,サブ
|
71441-83002-000 |
— | ||
| replacement | |||||
|
5
|
5
71441-50C00-000 MEMBER,SUB |
71441-50C00-000 |
US $26.31 |
||
|
6
|
6
01107-10203-000 ボルト |
01107-10203-000 |
US $2.22 |
||
| replacement | |||||
|
6
|
6
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
7
|
7
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
8
|
8
71471-80000-000
Crochet arriere
|
71471-80000-000 |
— | ||
| replacement | |||||
|
8
|
8
71471-83300-000 HOOK,RR |
71471-83300-000 |
US $15.36 |
||
|
9
|
9
71472-80030-000
SUPPORT,REAR HOOK
|
71472-80030-000 |
— | ||
|
10
|
10
71473-80030-000 REINFORCEMENT,REAR HOOK |
71473-80030-000 |
US $5.34 |
||
|
11
|
11
01104-12303-000
Screw
|
01104-12303-000 |
— | ||
|
12
|
12
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
13
|
13
08316-16123-000 Nut |
08316-16123-000 |
US $1.30 |
||
| replacement | |||||
|
13
|
13
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
14
|
14
71481-80030-000
Support immatric
|
71481-80030-000 |
— | ||
| replacement | |||||
|
14
|
14
71481-80031-000 BRACKET,RR LICENSE |
71481-80031-000 |
US $28.34 |
||
|
15
|
15
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
15
|
15
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
16
|
16
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
17
|
17
71491-80000-000
Cachet
|
71491-80000-000 |
— | ||
| replacement | |||||
|
17
|
17
71491-80002-000 PAD,BODY MOUNTING NO.1 |
71491-80002-000 |
US $10.56 |
||
|
18
|
18
71493-83000-000
Cachet
|
71493-83000-000 |
— | ||
| replacement | |||||
|
18
|
18
71493-83001-000 PAD,BODY MOUNTING NO.3 |
71493-83001-000 |
US $19.20 |
||
|
19
|
19
71494-80001-000 PAD,BODY MOUNTING NO.4 |
71494-80001-000 |
US $1.60 |
||
|
20
|
20
71494-80201-000
パッド,ボディマウンチング,NO.4
|
71494-80201-000 |
— | ||
| replacement | |||||
|
20
|
20
71494-80202-000 PAD,BODY MOUNTING NO.4 |
71494-80202-000 |
US $11.52 |
||
|
21
|
21
57321-52001-000 PAD,BODY MOUNTING NO.2 |
57321-52001-000 |
US $2.24 |
||
|
21
|
21
71492-80010-000
Pad, body mount no.2
|
71492-80010-000 |
— | ||
| replacement | |||||
|
21
|
21
71492-80011-000 PAD,BODY MOUNTING NO.2 |
71492-80011-000 |
US $8.64 |
||
|
22
|
22
09160-10094-000 WASHER(10.5X30X3.2) |
09160-10094-000 |
from US $1.12 |
||
|
23
|
23
01707-10403-000
Screw
|
01707-10403-000 |
— | ||
|
24
|
24
08321-A3110-600
Spring washer
|
08321-A3110-600 |
— | ||
|
25
|
25
09100-10168-000 BOLT(10X37) |
09100-10168-000 |
US $1.76 |
||
|
26
|
26
09159-A1005-600
Ecrou
|
09159-A1005-600 |
— | ||
|
27
|
27
71610-83000-000 CUSHION,BODY MTG UPPER |
71610-83000-000 |
US $22.40 |
||
|
28
|
28
71620-83000-000 CUSHION,BODY MTG,LOWER |
71620-83000-000 |
US $20 |
||
|
29
|
29
71631-83000-000
カラー,ボディマウンチング
|
71631-83000-000 |
— | ||
| replacement | |||||
|
29
|
29
71631-83001-000 COLLAR,BODY MOUNTING |
71631-83001-000 |
US $1.60 |
||
|
30
|
30
71632-83000-000
ボトム,ボディマウンチング
|
71632-83000-000 |
— | ||
| replacement | |||||
|
30
|
30
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
US $2.24 |
||
|
31
|
31
71420-83000-000
Stay, radiator rh
|
71420-83000-000 |
— | ||
| replacement | |||||
|
31
|
31
71420-83001-000
Stay,radiator,r
|
71420-83001-000 |
— | ||
|
32
|
32
71430-83000-000
STAY,RADIATOR,L
|
71430-83000-000 |
— | ||
|
33
|
33
01104-08166-000
Screw
|
01104-08166-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
34
|
34
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
36
|
36
40000-00000-000
Vis
|
40000-00000-000 |
— | ||
|
37
|
37
93632-A8000-000
Plaque crochet
|
93632-A8000-000 |
— | ||
|
38
|
38
75411-83000-000
Panneau chauffau
|
75411-83000-000 |
— | ||
| replacement | |||||
|
38
|
38
75411-83001-000 PANEL,HEAT PROTECTOR |
75411-83001-000 |
US $84.80 |
||
|
39
|
39
03141-06122-000
Vis
|
03141-06122-000 |
— | ||
|
40
|
40
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
40
|
40
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
40
|
40
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
41
|
41
57680-83001-000 BRACKET,STABILIZER |
57680-83001-000 |
US $79.49 |
||
