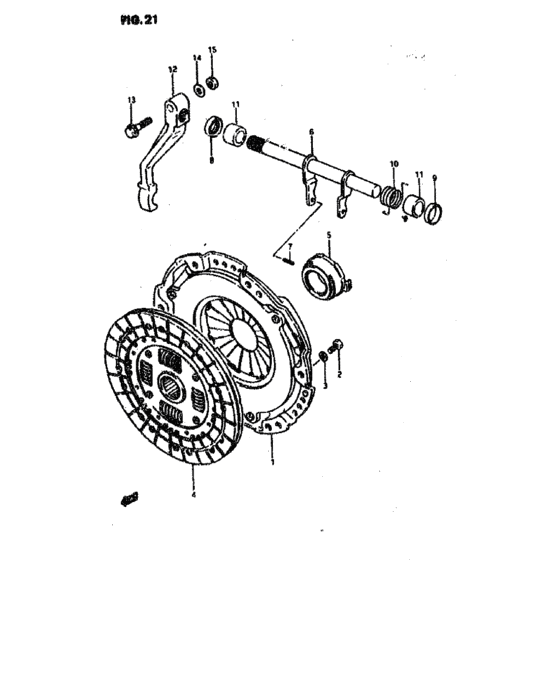

Ensemble embrayage (ENSEMBLE EMBRAYAGE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-A8302-000
Cover assy, clutch
|
22100-A8302-000 |
— | ||
|
2
|
2
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
2
|
2
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
3
|
3
08321-A3108-300
Rondelle
|
08321-A3108-300 |
— | ||
|
4
|
4
22400-A8302-000
Disk, clutch
|
22400-A8302-000 |
— | ||
|
5
|
5
09269-33001-000
Roulement embrayage
|
09269-33001-000 |
— | ||
| replacement | |||||
|
5
|
5
23265-70C00-000 BEARING,CLUTCH RELEASE |
23265-70C00-000 |
US $87.20 |
||
|
6
|
6
23260-83012-000
Shaft, clutch release
|
23260-83012-000 |
— | ||
| replacement | |||||
|
6
|
6
23260-83013-000 SHAFT,CLUTCH RELEASE |
23260-83013-000 |
US $75.81 |
||
|
7
|
7
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
8
|
8
09284-14003-000 SEAL,OIL(14X22X6) |
09284-14003-000 |
US $6.72 |
||
| replacement | |||||
|
8
|
8
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $6.38 |
||
|
9
|
9
09241-22003-000 PLUG |
09241-22003-000 |
from US $1.76 |
||
|
10
|
10
09448-20006-000 SPRING |
09448-20006-000 |
US $1.98 |
||
|
11
|
11
09300-14012-000
Bonille axe
|
09300-14012-000 |
— | ||
| replacement | |||||
|
11
|
11
09300-14017-000 BUSH(14X22X15) |
09300-14017-000 |
from US $2.13 |
||
|
12
|
12
23266-83001-000
Arm, clutch release
|
23266-83001-000 |
— | ||
| replacement | |||||
|
12
|
12
23266-83002-000 ARM,CLUTCH RELEASE |
23266-83002-000 |
US $54.40 |
||
|
13
|
13
01514-08353-000
Vis
|
01514-08353-000 |
— | ||
|
14
|
14
08322-11083-000 WasherWasher |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
14
|
14
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
14
|
14
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
15
|
15
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
15
|
15
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
