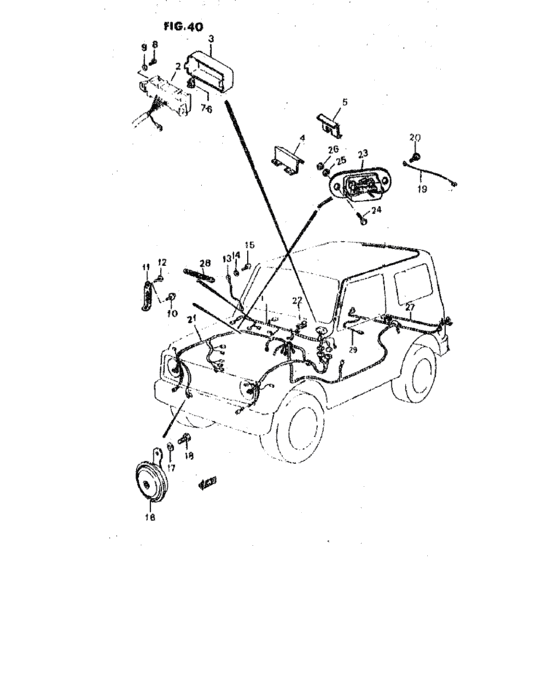

Faisceaux (FAISCEAUX) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-A8304-200
Faisceau
|
36610-A8304-200 |
— | ||
|
2
|
2
35160-00000-000
Circuit imprime
|
35160-00000-000 |
— | ||
|
3
|
3
35163-00000-000
Couverc, boite fus
|
35163-00000-000 |
— | ||
|
4
|
4
35159-00000-000
Upper bracket, fuse box
|
35159-00000-000 |
— | ||
|
5
|
5
35158-00000-000
Lower bracket, fuse box
|
35158-00000-000 |
— | ||
|
6
|
6
35154-00000-000
Fusible 5 amp
|
35154-00000-000 |
— | ||
|
6
|
6
35155-00000-000
Fuse 10 a
|
35155-00000-000 |
— | ||
|
6
|
6
35156-00000-000
Fuse
|
35156-00000-000 |
— | ||
|
7
|
7
35157-00000-000
Fuse 20 a
|
35157-00000-000 |
— | ||
|
8
|
8
03211-04126-000
Screw
|
03211-04126-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $3.04 |
||
|
9
|
9
02008-00000-000
Washer
|
02008-00000-000 |
— | ||
|
10
|
10
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
11
|
11
09404-A0641-500
Collier de serrage
|
09404-A0641-500 |
— | ||
|
12
|
12
03141-05126-000
Screw
|
03141-05126-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
13
|
13
36821-A8000-000
Cablage
|
36821-A8000-000 |
— | ||
|
14
|
14
08322-21056-000
Washer
|
08322-21056-000 |
— | ||
| replacements | |||||
|
14
|
14
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
14
|
14
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
15
|
15
03111-05126-000
New Genuine Part
|
03111-05126-000 |
— | ||
| replacement | |||||
|
15
|
15
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
16
|
16
38500-A8010-000
Avertisseur
|
38500-A8010-000 |
— | ||
|
17
|
17
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
18
|
18
01104-08126-000
Vis
|
01104-08126-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-08127-000 Bolt |
01500-08127-000 |
from US $0.76 |
||
|
19
|
19
39312-A8000-000
Cable vale
|
39312-A8000-000 |
— | ||
|
20
|
20
03141-06126-000
スクリュ
|
03141-06126-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
21
|
21
36620-A8304-000
Faisceau
|
36620-A8304-000 |
— | ||
|
22
|
22
36620-C8005-500
Faisceau
|
36620-C8005-500 |
— | ||
|
23
|
23
00000-A0022-600
Fusible 50amp
|
00000-A0022-600 |
— | ||
|
23
|
23
36620-88005-500
Porte fusible
|
36620-88005-500 |
— | ||
|
24
|
24
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
25
|
25
08321-A3105-600
Washer
|
08321-A3105-600 |
— | ||
|
26
|
26
08310-11056-000
Nut
|
08310-11056-000 |
— | ||
| replacement | |||||
|
26
|
26
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
27
|
27
36610-J8304-000
Cable lampe anti-brouillard
|
36610-J8304-000 |
— | ||
|
28
|
28
35144-00000-000
Anti-parasitage
|
35144-00000-000 |
— | ||
|
29
|
29
36822-A8000-100
Cable
|
36822-A8000-100 |
— | ||
