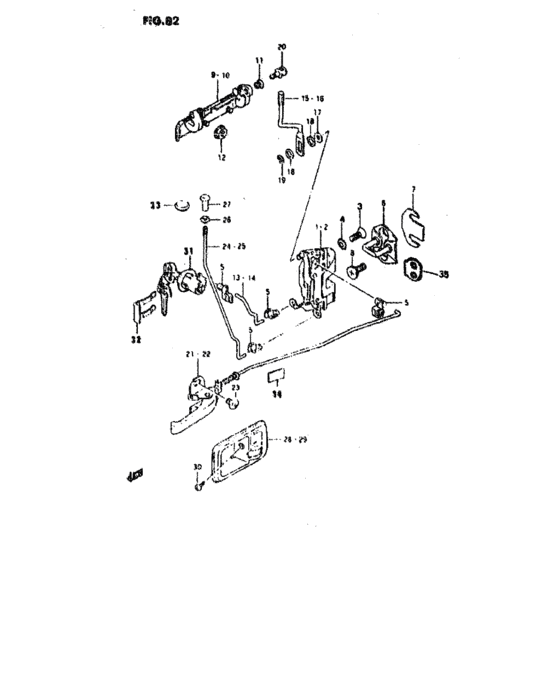

Fermeture porte avant (FERMETURE PORTE AVANT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-80101-000
Fermeture porte cd
|
82201-80101-000 |
— | ||
| replacement | |||||
|
1
|
1
82201-70A01-000 LATCH ASSY,FR DR,R |
82201-70A01-000 |
US $140 |
||
|
2
|
2
82202-80101-000
Fermutere porte cg
|
82202-80101-000 |
— | ||
| replacement | |||||
|
2
|
2
82202-70A01-000 LATCH ASSY,FR DR,L |
82202-70A01-000 |
US $133.01 |
||
|
3
|
3
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
3
|
3
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
4
|
4
08323-31068-000
Lock washer
|
08323-31068-000 |
— | ||
| replacement | |||||
|
4
|
4
08323-3106A-000 WASHER,LOCK |
08323-3106A-000 |
US $0.88 |
||
|
5
|
5
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
6
|
6
82610-85000-000
ストライカ,フロントドアラッチ
|
82610-85000-000 |
— | ||
| replacement | |||||
|
6
|
6
82610-85002-000 STRIKER,FR DOOR LATCH |
82610-85002-000 |
US $39.20 |
||
|
7
|
7
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
8
|
8
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
8
|
8
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
9
|
9
82810-A8010-200
Fermeture porte ar
|
82810-A8010-200 |
— | ||
|
10
|
10
82820-A8010-200
Handle, door lh
|
82820-A8010-200 |
— | ||
|
11
|
11
82891-A8010-000
Arrest
|
82891-A8010-000 |
— | ||
|
12
|
12
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
12
|
12
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
82291-80100-000 ROD,KEY CYLINDER CONTROL,R |
82291-80100-000 |
US $5.74 |
||
|
14
|
14
82292-80100-000 ROD,KEY CYLINDER CONTROL,L |
82292-80100-000 |
US $5.74 |
||
|
15
|
15
83211-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,R |
83211-80100-000 |
US $4.38 |
||
|
16
|
16
83212-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,L |
83212-80100-000 |
US $4.38 |
||
|
17
|
17
09161-04008-000 WASHER(4X12X2) |
09161-04008-000 |
US $16.20 |
||
|
18
|
18
09161-06008-000 WASHER(6.5X13X1) |
09161-06008-000 |
US $10.70 |
||
|
19
|
19
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
20
|
20
77716-79000-000 JOINT,ROD |
77716-79000-000 |
US $1.92 |
||
|
21
|
21
83110-80100-000
Levier int porte droit
|
83110-80100-000 |
— | ||
| replacement | |||||
|
21
|
21
83110-80102-5ES HANDLE,DOOR INSIDE,R |
83110-80102-5ES |
US $38.77 |
||
|
22
|
22
83130-80100-000
Levier int porte gauche
|
83130-80100-000 |
— | ||
| replacement | |||||
|
22
|
22
83130-80102-5ES HANDLE,DOOR INSIDE,L |
83130-80102-5ES |
US $38.77 |
||
|
23
|
23
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
24
|
24
83241-80100-000 ROD,DOOR SAFETY LOCK,R |
83241-80100-000 |
US $4.38 |
||
|
25
|
25
83242-80100-000 ROD,DOOR SAFETY LOCK,L |
83242-80100-000 |
US $4.38 |
||
|
26
|
26
78242-A6100-000
Enjoliveur
|
78242-A6100-000 |
— | ||
|
27
|
27
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
|
28
|
28
78471-79000-000
Enjoliveur droit
|
78471-79000-000 |
— | ||
|
29
|
29
78481-79000-000
Enjoliveur gauche
|
78481-79000-000 |
— | ||
|
30
|
30
03141-04085-000
New Genuine Part
|
03141-04085-000 |
— | ||
| replacement | |||||
|
30
|
30
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
31
|
31
00000-A0029-600
Blank key
|
00000-A0029-600 |
— | ||
|
31
|
31
50024-00000-000
Fermeture
|
50024-00000-000 |
— | ||
|
31
|
31
82270-A8010-000
Barrillet
|
82270-A8010-000 |
— | ||
|
31
|
31
82280-A8010-000
Barrillet
|
82280-A8010-000 |
— | ||
|
32
|
32
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
33
|
33
09250-14003-000 CAP(OD:18) |
09250-14003-000 |
US $2.08 |
||
|
34
|
34
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
35
|
35
50104-00000-000
Protector,latch
|
50104-00000-000 |
— | ||
