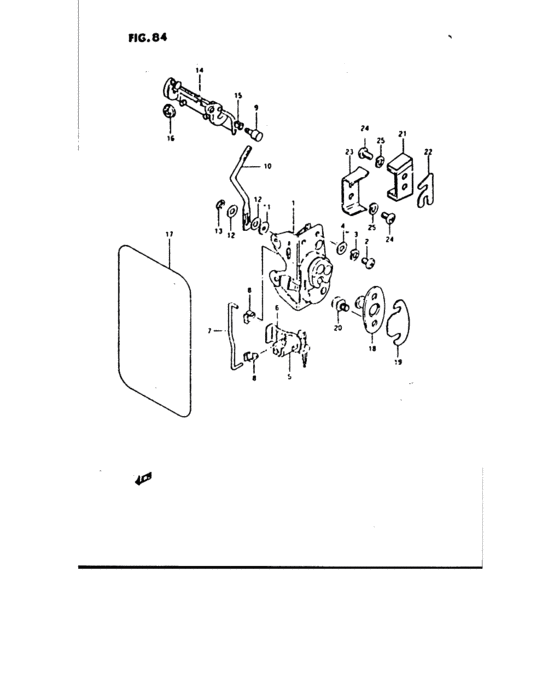

Fermeture volet arriere (FERMETURE VOLET ARRIERE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82530-80100-000
Fermeture porte ar
|
82530-80100-000 |
— | ||
| replacement | |||||
|
1
|
1
82530-80101-000
LOCK ASSY,BACK DR
|
82530-80101-000 |
— | ||
|
2
|
2
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
2
|
2
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
3
|
3
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
4
|
4
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
5
|
5
82270-A8010-000
Barrillet
|
82270-A8010-000 |
— | ||
|
6
|
6
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
7
|
7
82581-80100-000
ROD,KEY CYLINDER CONTROL
|
82581-80100-000 |
— | ||
|
8
|
8
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
9
|
9
77716-79000-000 JOINT,ROD |
77716-79000-000 |
US $1.92 |
||
|
10
|
10
83231-80100-000 ROD,LOCK OUTSIDE HANDLE |
83231-80100-000 |
US $12.32 |
||
|
11
|
11
09161-04008-000 WASHER(4X12X2) |
09161-04008-000 |
US $16.20 |
||
|
12
|
12
09161-06008-000 WASHER(6.5X13X1) |
09161-06008-000 |
US $10.70 |
||
|
13
|
13
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
14
|
14
82810-A8010-200
Fermeture porte ar
|
82810-A8010-200 |
— | ||
|
15
|
15
82891-A8010-000
Arrest
|
82891-A8010-000 |
— | ||
|
16
|
16
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
16
|
16
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
16
|
16
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
83912-80100-000
Cover, door sealing
|
83912-80100-000 |
— | ||
| replacement | |||||
|
17
|
17
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
18
|
18
78100-79000-000
Arret
|
78100-79000-000 |
— | ||
|
19
|
19
78199-79000-000 SPACER |
78199-79000-000 |
US $1.60 |
||
|
20
|
20
09126-A0800-500
Vis
|
09126-A0800-500 |
— | ||
|
21
|
21
78251-68200-000
Arret de porte
|
78251-68200-000 |
— | ||
| replacement | |||||
|
21
|
21
78251-68201-000 MALE,BACK DR ST0P |
78251-68201-000 |
US $11.04 |
||
|
22
|
22
77891-63100-000 SPACER |
77891-63100-000 |
US $4.48 |
||
|
23
|
23
78261-68200-000
Arret de porte
|
78261-68200-000 |
— | ||
| replacement | |||||
|
23
|
23
78261-68201-000 MALE,BACK DR ST0P |
78261-68201-000 |
US $11.04 |
||
|
24
|
24
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
24
|
24
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
25
|
25
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
