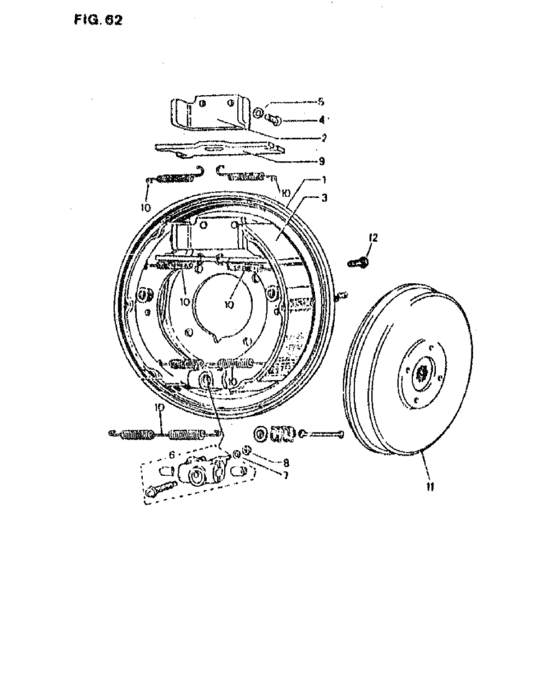

Frein stationnement (FREIN STATIONNEMENT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
00000-A0027-300
Plateau frein
|
00000-A0027-300 |
— | ||
|
2
|
2
00000-A0027-400
Support
|
00000-A0027-400 |
— | ||
|
3
|
3
00000-A0016-200
Necessaire reparation
|
00000-A0016-200 |
— | ||
|
4
|
4
00000-A0023-700
Screw
|
00000-A0023-700 |
— | ||
|
5
|
5
00000-A0023-900
Spring washer
|
00000-A0023-900 |
— | ||
|
6
|
6
00000-A0016-100
Regulateur
|
00000-A0016-100 |
— | ||
|
8
|
8
00000-A0027-700
Ecrou
|
00000-A0027-700 |
— | ||
|
9
|
9
00000-A0027-800
Plaque
|
00000-A0027-800 |
— | ||
|
10
|
10
00000-A0016-300
Necessaire reparation
|
00000-A0016-300 |
— | ||
|
11
|
11
54811-A8300-000
Tambour frein
|
54811-A8300-000 |
— | ||
|
12
|
12
09119-00035-000
Vis
|
09119-00035-000 |
— |
