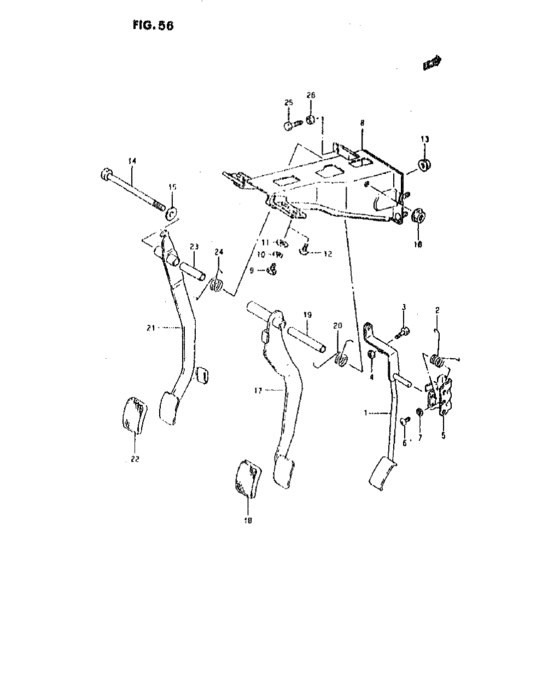

Pedalier u.k market (PEDALIER U.K MARKET) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-80100-000
Pedale d'accelerateur
|
49410-80100-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-80102-000 PEDAL,ACCELERATOR |
49410-80102-000 |
US $25.21 |
||
|
2
|
2
09448-21003-000
スプリング
|
09448-21003-000 |
— | ||
| replacement | |||||
|
2
|
2
09448-21005-000 SPRING |
09448-21005-000 |
US $36.10 |
||
|
3
|
3
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $3.25 |
||
|
4
|
4
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
4
|
4
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
5
|
5
49511-80100-000
ブラケット,アクセレレータ
|
49511-80100-000 |
— | ||
| replacement | |||||
|
5
|
5
49511-80102-000 BRACKET,ACCELERATOR |
49511-80102-000 |
US $8.10 |
||
|
6
|
6
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
6
|
6
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
7
|
7
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
8
|
8
49710-A8010-000
Support pedale
|
49710-A8010-000 |
— | ||
|
9
|
9
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
10
|
10
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
02009-00000-000
Washer
|
02009-00000-000 |
— | ||
|
12
|
12
09125-08004-000
スクリュ,8X20
|
09125-08004-000 |
— | ||
| replacement | |||||
|
12
|
12
09139-08015-000 SCREW(8X30) |
09139-08015-000 |
US $1.92 |
||
|
13
|
13
08316-A1608-600
Ecrou
|
08316-A1608-600 |
— | ||
|
14
|
14
09100-10056-000 BOLT(10X160) |
09100-10056-000 |
from US $10.33 |
||
|
15
|
15
08322-11106-000
Washer 10.5x18x1.6
|
08322-11106-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
15
|
15
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
16
|
16
08316-26106-000
Nut
|
08316-26106-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
17
|
17
49610-80100-000 PEDAL,BRAKE |
49610-80100-000 |
US $257.60 |
||
|
18
|
18
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
18
|
18
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
19
|
19
09180-10097-000 SPACER(10.1X13X88) |
09180-10097-000 |
US $42 |
||
|
20
|
20
09448-31029-000 SPRING |
09448-31029-000 |
US $38.60 |
||
|
21
|
21
49810-80100-000
ペダル,クラッチ
|
49810-80100-000 |
— | ||
| replacement | |||||
|
21
|
21
49810-70A00-000 PEDAL,CLUTCH |
49810-70A00-000 |
US $42.69 |
||
|
22
|
22
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
22
|
22
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
23
|
23
09180-10018-000
SPACER(10.1X13X56)
|
09180-10018-000 |
— | ||
|
24
|
24
09448-29004-000 SPRING |
09448-29004-000 |
from US $2.12 |
||
|
25
|
25
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
25
|
25
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
26
|
26
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $3.25 |
||
