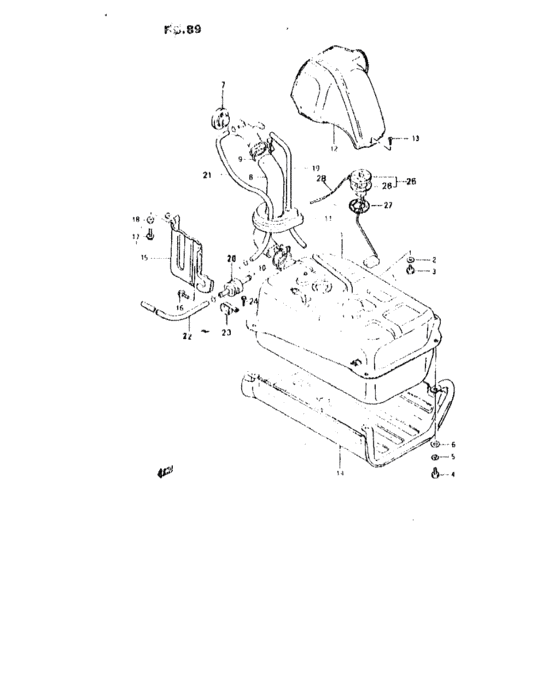

Reservoir carburant (RESERVOIR CARBURANT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-A8002-200
Tank assy, fuel
|
89101-A8002-200 |
— | ||
|
2
|
2
09168-A1200-500
Gasket washer
|
09168-A1200-500 |
— | ||
|
3
|
3
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
|
4
|
4
01707-10306-000
Vis
|
01707-10306-000 |
— | ||
|
5
|
5
08321-A3110-800
Rondelle
|
08321-A3110-800 |
— | ||
|
6
|
6
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
7
|
7
85410-79202-000
キャップアッシ,フューエルタンクフィラ
|
85410-79202-000 |
— | ||
| replacement | |||||
|
7
|
7
89260-50C00-000 CAP ASSY,FUEL FILLER |
89260-50C00-000 |
US $75.20 |
||
|
8
|
8
89241-A8000-000
Tuyau
|
89241-A8000-000 |
— | ||
|
9
|
9
09400-A6030-100
Upper clamp
|
09400-A6030-100 |
— | ||
|
10
|
10
09400-A5330-100
Lower clamp
|
09400-A5330-100 |
— | ||
|
11
|
11
89281-80000-000 DUST SEAT,FUEL TANK INLET |
89281-80000-000 |
US $32 |
||
|
12
|
12
89311-80000-000
PROTECTOR,FUEL INLET PIPE UPR
|
89311-80000-000 |
— | ||
|
13
|
13
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
14
|
14
89320-80000-000
Protecteur reservoir
|
89320-80000-000 |
— | ||
| replacement | |||||
|
14
|
14
89320-83002-000
PROTECTOR,FUEL TANK
|
89320-83002-000 |
— | ||
|
15
|
15
89312-83010-000
プロテクタ,インレットパイプ,ロア
|
89312-83010-000 |
— | ||
| replacement | |||||
|
15
|
15
89312-83030-000 PROTECTOR,INLET PIPE LOWER |
89312-83030-000 |
US $29.60 |
||
|
16
|
16
01514-00106-000
Vis
|
01514-00106-000 |
— | ||
|
17
|
17
09103-06089-000 BOLT(6X20) |
09103-06089-000 |
US $9.90 |
||
|
18
|
18
09305-07003-000 BUSH |
09305-07003-000 |
US $16.20 |
||
|
19
|
19
09343-A1101-600
Manchon
|
09343-A1101-600 |
— | ||
|
20
|
20
05451-75100-000
Soupape
|
05451-75100-000 |
— | ||
|
21
|
21
09344-05040-000 Hose, valve inlet |
09344-05040-000 |
US $1.98 |
||
| replacements | |||||
|
21
|
21
09351-50803-00B HOSE(5X8X2000)Hose, overflow |
09351-50803-00B |
from US $8.66 |
||
|
21
|
21
09351-50803-00A HOSE(5X8X1000) |
09351-50803-00A |
US $10.29 |
||
|
22
|
22
09344-05042-000
Hose, outlet
|
09344-05042-000 |
— | ||
| replacements | |||||
|
22
|
22
09351-50803-00B HOSE(5X8X2000)Hose, overflow |
09351-50803-00B |
from US $8.66 |
||
|
22
|
22
09351-50803-00A HOSE(5X8X1000) |
09351-50803-00A |
US $10.29 |
||
|
23
|
23
09403-A2340-100
Collier
|
09403-A2340-100 |
— | ||
|
24
|
24
03141-06108-000
New Genuine Part
|
03141-06108-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
25
|
25
34810-A8000-100
Gauge assy, fuel level
|
34810-A8000-100 |
— | ||
|
26
|
26
34825-A6701-200
Gasket
|
34825-A6701-200 |
— | ||
|
27
|
27
34810-B8000-100
Anneau
|
34810-B8000-100 |
— | ||
|
28
|
28
36822-A8000-100
Cable
|
36822-A8000-100 |
— | ||
