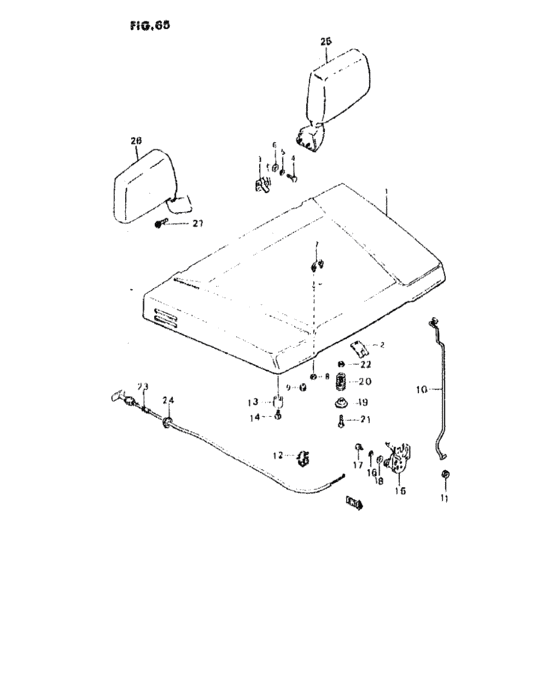

Retroviseur capot moteur (RETROVISEUR CAPOT MOTEUR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-83001-000
Panel assy, front hood
|
58300-83001-000 |
— | ||
| replacement | |||||
|
1
|
1
58300-51C01-000
PANEL ASSY,FRONT HOOD
|
58300-51C01-000 |
— | ||
|
1
|
1
58300-83100-000
Panel assy, front hood
|
58300-83100-000 |
— | ||
| replacement | |||||
|
1
|
1
58300-51C01-000
PANEL ASSY,FRONT HOOD
|
58300-51C01-000 |
— | ||
|
2
|
2
58370-83000-000 HOOK,FR HOOD LOCK |
58370-83000-000 |
US $6.15 |
||
|
3
|
3
58410-80010-000 HINGE,HOOD |
58410-80010-000 |
from US $15.50 |
||
|
4
|
4
01104-06168-000
Screw
|
01104-06168-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
5
|
5
08321-A3106-800
Grower washer
|
08321-A3106-800 |
— | ||
|
6
|
6
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
7
|
7
58381-A8000-000
Crochet capo mod - j
|
58381-A8000-000 |
— | ||
|
8
|
8
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
58382-A8000-000
Washer
|
58382-A8000-000 |
— | ||
|
10
|
10
72442-83002-000
Stay, front hood
|
72442-83002-000 |
— | ||
| replacements | |||||
|
10
|
10
72442-70A0V-000
STAY,FRONT HOOD
|
72442-70A0V-000 |
— | ||
|
10
|
10
72442-83003-000 STAY,FRONT HOOD |
72442-83003-000 |
US $32.80 |
||
|
11
|
11
09308-08001-000 GROMMETGrommet |
09308-08001-000 |
from US $1.52 |
||
|
12
|
12
09403-08313-000 CLAMP |
09403-08313-000 |
US $1.76 |
||
|
13
|
13
09320-06011-000 CUSHION |
09320-06011-000 |
from US $2.57 |
||
|
14
|
14
02112-06165-000 Screw, front fender |
02112-06165-000 |
US $0.65 |
||
| replacements | |||||
|
14
|
14
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
14
|
14
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
15
|
15
82110-80013-000
Fermeture capot
|
82110-80013-000 |
— | ||
| replacements | |||||
|
15
|
15
82110-8001V-000 LATCH,HOOD |
82110-8001V-000 |
US $152.35 |
||
|
15
|
15
82160-80011-000 CABLE,HOOD LATCH RELEASE |
82160-80011-000 |
US $47.20 |
||
|
16
|
16
08321-A3106-800
Grower washer
|
08321-A3106-800 |
— | ||
|
17
|
17
09128-06031-000
スクリュ
|
09128-06031-000 |
— | ||
| replacement | |||||
|
17
|
17
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
18
|
18
09160-06006-000
Washer
|
09160-06006-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
19
|
19
82171-80100-000 SUPPORT,OPEN SPRING |
82171-80100-000 |
US $22.40 |
||
|
20
|
20
09440-27007-000 SPRING |
09440-27007-000 |
US $3.04 |
||
|
21
|
21
02112-06405-000
Screw
|
02112-06405-000 |
— | ||
| replacements | |||||
|
21
|
21
02112-0640B-000 SCREW |
02112-0640B-000 |
US $0.80 |
||
|
21
|
21
02112-0640A-000 SCREW |
02112-0640A-000 |
from US $0.80 |
||
|
22
|
22
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
22
|
22
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
22
|
22
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
23
|
23
82160-A8001-000
Bonnet opening cable
|
82160-A8001-000 |
— | ||
|
24
|
24
82191-A8000-200
Passacable
|
82191-A8000-200 |
— | ||
|
25
|
25
84702-83010-000
Retroviseur cg
|
84702-83010-000 |
— | ||
|
26
|
26
84701-83010-000
Retroviseur droit
|
84701-83010-000 |
— | ||
|
27
|
27
02132-05105-000
Screw
|
02132-05105-000 |
— | ||
| replacement | |||||
|
27
|
27
02122-0510A-000 SCREW |
02122-0510A-000 |
US $0.80 |
||
