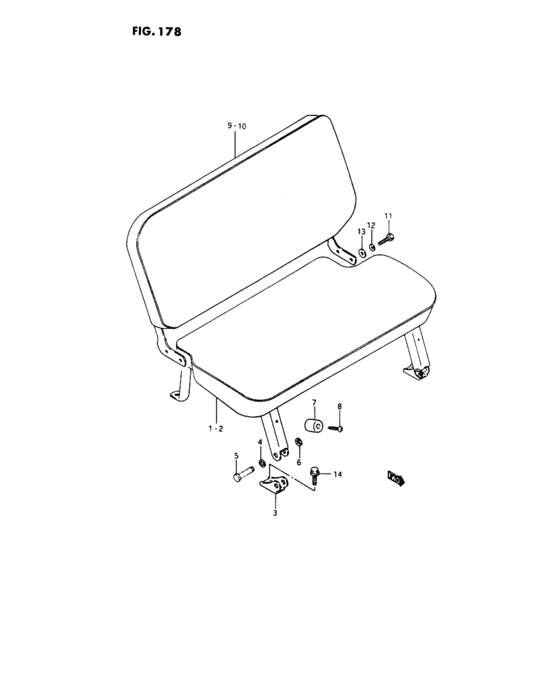

2nd rear seat (TYPE 3 : W JX RESIN TOP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87102-83050-9CZ
Cushion assy, rear seat
LHD |
87102-83050-9CZ |
— | ||
|
2
|
2
87101-83050-9CZ
Cushion assy, rear seat
RHD |
87101-83050-9CZ |
— | ||
|
3
|
3
87271-80121-000
Male, seat hinge
|
87271-80121-000 |
— | ||
| replacement | |||||
|
3
|
3
87271-80280-000
MALE,RR SEAT HNG
|
87271-80280-000 |
— | ||
|
4
|
4
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
5
|
5
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
5
|
5
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
5
|
5
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.89 |
||
|
5
|
5
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
5
|
5
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
6
|
6
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
6
|
6
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
6
|
6
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
7
|
7
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
8
|
8
03142-05209-000
Screw
|
03142-05209-000 |
— | ||
| replacement | |||||
|
8
|
8
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
9
|
9
87302-83050-9CZ
Back assy, rear seat
LHD |
87302-83050-9CZ |
— | ||
|
10
|
10
87301-83050-9CZ
Back assy, rear seat
RHD |
87301-83050-9CZ |
— | ||
|
11
|
11
01107-08205-000
Bolt
|
01107-08205-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
12
|
12
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
14
|
14
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
