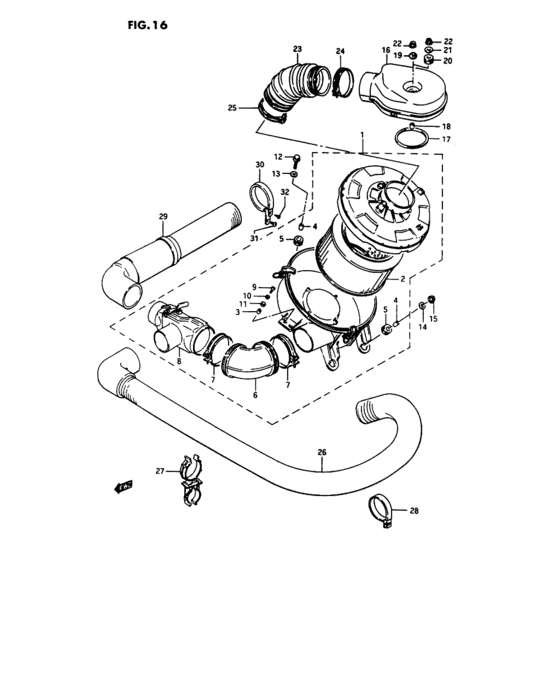

Air cleaner (AIR CLEANER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-83001-000
CLEANER ASSY,AIR
W/WARM AIR <-13700-83000 |
13700-83001-000 |
— | ||
|
1
|
1
13700-83011-000
Cleaner assy, air
N/WARM AIR <-13700-83010 |
13700-83011-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-83001-000
CLEANER ASSY,AIR
N/WARM AIR <-13700-83010 |
13700-83001-000 |
— | ||
|
2
|
2
13780-83000-000 ELEMENT,AIR CLEANER |
13780-83000-000 |
US $38.40 |
||
| replacement | |||||
|
2
|
2
99000-990YJ-002
Filter, air cle
|
99000-990YJ-002 |
— | ||
|
3
|
3
13712-83000-000
SPACER
|
13712-83000-000 |
— | ||
|
4
|
4
13812-83000-000
Spacer
|
13812-83000-000 |
— | ||
| replacement | |||||
|
4
|
4
13812-83001-000
Bush
|
13812-83001-000 |
— | ||
|
4
|
4
13812-83001-000
Bush
SJ50-115857~ SJ51-102141~,SJ51T-102074~ JSA0SJ50000122640~,JSA0SJ51000103230~,JSA0SJ50V00111220~,JSA0SJ51T00101120~ |
13812-83001-000 |
— | ||
|
5
|
5
13813-83000-000 GROMMET |
13813-83000-000 |
from US $1.92 |
||
| replacement | |||||
|
5
|
5
13813-61AT0-000 GROMMET SET,AIR CLEANER |
13813-61AT0-000 |
US $6.56 |
||
|
6
|
6
13731-83000-000
Joint, warm air valve
|
13731-83000-000 |
— | ||
| replacement | |||||
|
6
|
6
13731-83001-000 JOINT,WARM AIR VALVE |
13731-83001-000 |
US $27.36 |
||
|
7
|
7
09402-70207-000
Clamp
|
09402-70207-000 |
— | ||
| replacement | |||||
|
7
|
7
09402-70902-000 CLAMP |
09402-70902-000 |
from US $6.56 |
||
|
8
|
8
13740-83000-000 VALVE,WARM AIRW/WARM AIR |
13740-83000-000 |
US $33.12 |
||
|
8
|
8
13740-83010-000
INTAKE,AIR
N/WARM AIR |
13740-83010-000 |
— | ||
|
9
|
9
02112-06164-000
Screw
|
02112-06164-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
9
|
9
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
10
|
10
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
11
|
11
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
12
|
12
01517-06203-000
Bolt
SJ50-115857~ SJ51-102141~,SJ51T-102074~ JSA0SJ50000122640~,JSA0SJ51000103230~,JSA0SJ50V00111220~,JSA0SJ51T00101120~ |
01517-06203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0620B-000 BOLTBolt, inspection cap SJ50-115857~ SJ51-102141~,SJ51T-102074~ JSA0SJ50000122640~,JSA0SJ51000103230~,JSA0SJ50V00111220~,JSA0SJ51T00101120~ |
01550-0620B-000 |
from US $0.76 |
||
|
12
|
12
01550-0620A-000 BOLTSJ50-115857~ SJ51-102141~,SJ51T-102074~ JSA0SJ50000122640~,JSA0SJ51000103230~,JSA0SJ50V00111220~,JSA0SJ51T00101120~ |
01550-0620A-000 |
from US $0.76 |
||
|
13
|
13
09160-06027-000
Washer (6.5x20x1.2)
~SJ50-115856 ~SJ51-102140,~SJ51T-102073 ~JSA0SJ50000122639,~JSA0SJ51000103229,~JSA0SJ50V00111219,~JSA0SJ51T00101119 |
09160-06027-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) ~SJ50-115856 ~SJ51-102140,~SJ51T-102073 ~JSA0SJ50000122639,~JSA0SJ51000103229,~JSA0SJ50V00111219,~JSA0SJ51T00101119 |
09160-06077-000 |
from US $0.96 |
||
|
14
|
14
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) ~SJ50-115856 ~SJ51-102140,~SJ51T-102073 ~JSA0SJ50000122639,~JSA0SJ51000103229,~JSA0SJ50V00111219,~JSA0SJ51T00101119 |
09160-06077-000 |
from US $0.96 |
||
|
15
|
15
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
15
|
15
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
15
|
15
08316-16063-000 NutSJ50-115857~ SJ51-102141~,SJ51T-102074~ JSA0SJ50000122640~,JSA0SJ51000103230~,JSA0SJ50V00111220~,JSA0SJ51T00101120~ |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUTSJ50-115857~ SJ51-102141~,SJ51T-102074~ JSA0SJ50000122640~,JSA0SJ51000103230~,JSA0SJ50V00111220~,JSA0SJ51T00101120~ |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
13830-83000-000
Case, air intake
->13830-83001 USED WITH,13839-83000, 09320-09034 AND,09169-06057 |
13830-83000-000 |
— | ||
| replacements | |||||
|
16
|
16
13830-83002-000
CASE,CARB AIR INTAKE
->13830-83001 USED WITH,13839-83000, 09320-09034 AND,09169-06057 |
13830-83002-000 |
— | ||
|
16
|
16
09169-06057-000 WASHER->13830-83001 USED WITH,13839-83000, 09320-09034 AND,09169-06057 |
09169-06057-000 |
from US $1.76 |
||
|
16
|
16
09320-09034-000
GROMMET
->13830-83001 USED WITH,13839-83000, 09320-09034 AND,09169-06057 |
09320-09034-000 |
— | ||
|
16
|
16
13839-83000-000
BOLT,INTAKE CASE STUD
->13830-83001 USED WITH,13839-83000, 09320-09034 AND,09169-06057 |
13839-83000-000 |
— | ||
|
16
|
16
09320-09063-000 Cushion->13830-83001 USED WITH,13839-83000, 09320-09034 AND,09169-06057 |
09320-09063-000 |
from US $4.22 |
||
|
16
|
16
13830-83001-000
Elbow, carburator
SJ50-131472~ SJ51-105147~,SJ51T-105175~ JSA0SJ50000154220~,JSA0SJ51000110362~,JSA0SJ50V00131471~,JSA0SJ51T00105120~ |
13830-83001-000 |
— | ||
| replacement | |||||
|
16
|
16
13830-83002-000
CASE,CARB AIR INTAKE
SJ50-131472~ SJ51-105147~,SJ51T-105175~ JSA0SJ50000154220~,JSA0SJ51000110362~,JSA0SJ50V00131471~,JSA0SJ51T00105120~ |
13830-83002-000 |
— | ||
|
17
|
17
13885-83000-000 SEAL,CARB AIR INTAKE CASE |
13885-83000-000 |
US $2.13 |
||
|
18
|
18
09180-06147-000
Spacer
~SJ50-131471 ~SJ51-105146,~SJ51T-105174 ~JSA0SJ50000154219,~JSA0SJ51000110361,~JSA0SJ50V00131470,~JSA0SJ51T00105119 |
09180-06147-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-06147-XC0
Spacer,6.5x10.5x23.2
~SJ50-131471 ~SJ51-105146,~SJ51T-105174 ~JSA0SJ50000154219,~JSA0SJ51000110361,~JSA0SJ50V00131470,~JSA0SJ51T00105119 |
09180-06147-XC0 |
— | ||
|
19
|
19
11180-83000-000
Washer, case seal
~SJ50-131471 ~SJ51-105146,~SJ51T-105174 ~JSA0SJ50000154219,~JSA0SJ51000110361,~JSA0SJ50V00131470,~JSA0SJ51T00105119 |
11180-83000-000 |
— | ||
| replacement | |||||
|
19
|
19
11180-82010-000 WASHER,CYL HEAD COVER SEAL~SJ50-131471 ~SJ51-105146,~SJ51T-105174 ~JSA0SJ50000154219,~JSA0SJ51000110361,~JSA0SJ50V00131470,~JSA0SJ51T00105119 |
11180-82010-000 |
from US $2.95 |
||
|
20
|
20
09320-09034-000
GROMMET
SJ50-131472~ SJ51-105147~,SJ51T-105175~ JSA0SJ50000154220~,JSA0SJ51000110362~,JSA0SJ50V00131471~,JSA0SJ51T00105120~ |
09320-09034-000 |
— | ||
|
21
|
21
09169-06057-000 WASHERSJ50-131472~ SJ51-105147~,SJ51T-105175~ JSA0SJ50000154220~,JSA0SJ51000110362~,JSA0SJ50V00131471~,JSA0SJ51T00105120~ |
09169-06057-000 |
from US $1.76 |
||
|
22
|
22
08316-16063-000 Nut |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
13881-83001-000 HOSE,AIR CLEANER OUTLET<-13881-83000 |
13881-83001-000 |
US $57.60 |
||
|
24
|
24
09402-68202-000
クランプ
|
09402-68202-000 |
— | ||
| replacement | |||||
|
24
|
24
09402-68208-000 CLAMP |
09402-68208-000 |
from US $6.72 |
||
|
25
|
25
09402-82202-000
Clamp
|
09402-82202-000 |
— | ||
| replacement | |||||
|
25
|
25
09402-82208-000 CLAMP |
09402-82208-000 |
from US $9.62 |
||
|
26
|
26
13840-83000-000
Hose, warm air
W/WARM AIR |
13840-83000-000 |
— | ||
| replacement | |||||
|
26
|
26
13840-83011-000
HOSE,WARM AIR
W/WARM AIR |
13840-83011-000 |
— | ||
|
27
|
27
13860-83000-000
CLAMP ASSY,WARM AIR HOSE
W/WARM AIR |
13860-83000-000 |
— | ||
|
28
|
28
09403-48401-000 CLAMPW/WARM AIR |
09403-48401-000 |
US $2.13 |
||
|
29
|
29
13870-83000-000 HOSE,COOL AIR |
13870-83000-000 |
US $39.20 |
||
|
30
|
30
13896-83000-000 CLAMP,COOL AIR HOSE |
13896-83000-000 |
US $2.24 |
||
|
31
|
31
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
31
|
31
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
32
|
32
03141-05106-000
New Genuine Part
|
03141-05106-000 |
— | ||
| replacement | |||||
|
32
|
32
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
